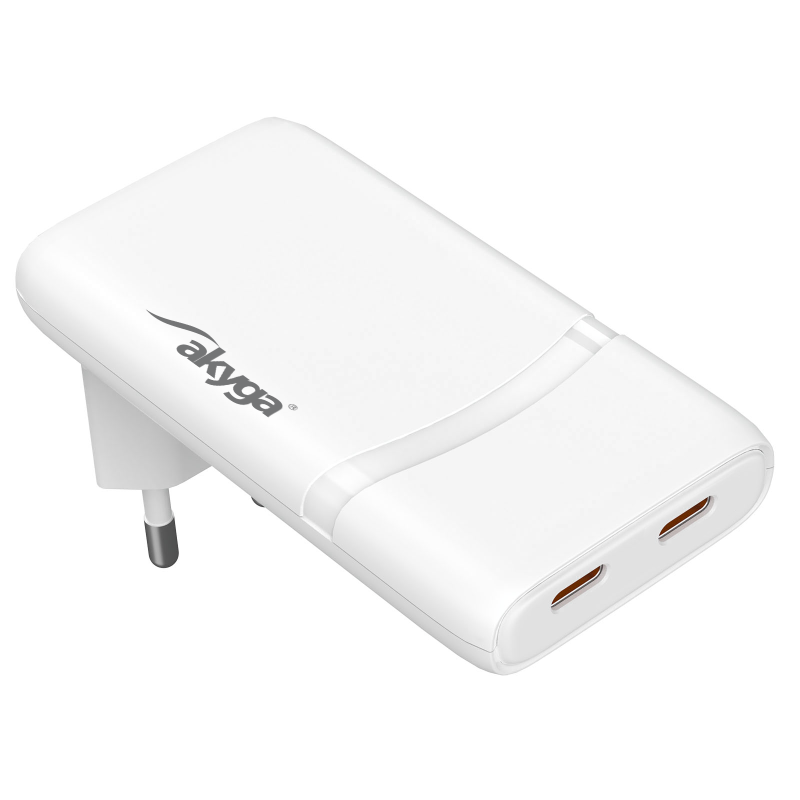

Akyga AK-CH-32 – general view
search
  • Akyga AK-CH-32 – general view
  • Akyga AK-CH-32 – close-up of the ports
  • Akyga AK-CH-32 – side view (standing upright)
  • Akyga AK-CH-32 – without plug, front view
  • Akyga AK-CH-32 – without plug, top view
  • Akyga AK-CH-32 – detached plug
  • Akyga AK-CH-32 – mains plug
  • Akyga AK-CH-32 – charger (inverted)
ID: 1202786
5906708750689
zł57.05
Tax included

zł46.38 tax excl.

A wall charger with up to 65 W output power, featuring two USB Type-C ports, supporting Power Delivery 3.0 and PPS, with an output voltage range of 5–20 V and output current up to 3.25 A, white. Akyga AK-CH-32

24h
Available
Available quantity: 2

Description

The Akyga AK-CH-32 is a wall charger with two USB Type-C outputs, designed to power and charge devices that support USB Power Delivery standards. The unit operates from a wide input range of 100–240 V / 50–60 Hz and automatically negotiates output parameters according to the connected device requirements, including 5 V, 9 V, 12 V, 15 V, and 20 V profiles, as well as PPS mode within the 5–20 V range.

The charger delivers up to 65 W when powering a single device via USB-C. When both ports are used simultaneously, the total power is dynamically shared in a 45 W + 20 W configuration. GaN (gallium nitride) technology is used in the power conversion stage to improve efficiency and reduce size. Integrated protections such as OVP, OCP, OTP, and SCP help minimize the risk of damage during operation. The AK-CH-32 is suitable for charging smartphones, tablets, and USB-C-powered laptops and peripherals.

Features

  • Device type: Wall charger
  • Number of ports: 2
  • Port type: 2× USB Type-C
  • Charging standards: Power Delivery 3.0, PPS, Quick Charge 4+ / 3.0, Samsung AFC, Huawei FCP, DCP, SCP, Apple 2.4 A
  • Maximum output power: 65 W (single port) or 45 W + 20 W (dual port)
  • USB-C output profiles: 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 3.25 A
  • PPS output: 5–20 V / 3 A
  • Input voltage: 100–240 V / 50/60 Hz
  • Input current: < 0.5 A
  • Mains plug: CEE 7/16 (Europlug)
  • Protections: OVP, OCP, OTP, SCP
  • Protection class: Class II (no grounding)
  • Housing material: ABS
  • Color: White
  • Operating temperature: 5–50 °C
  • MTBF: 100,000 h
  • Dimensions: 86 × 58 × 46 mm
  • Net weight: 100 g
  • Manufacturer: Akyga
  • Manufacturer code: AK-CH-32
1202786

Data sheet

Cable length (m)
No cable
Supply connector
USB-C
Output voltage
5 - 20 V
Supply type
network
Output current
2,25 A - 3 A
