zł62.72 tax excl.

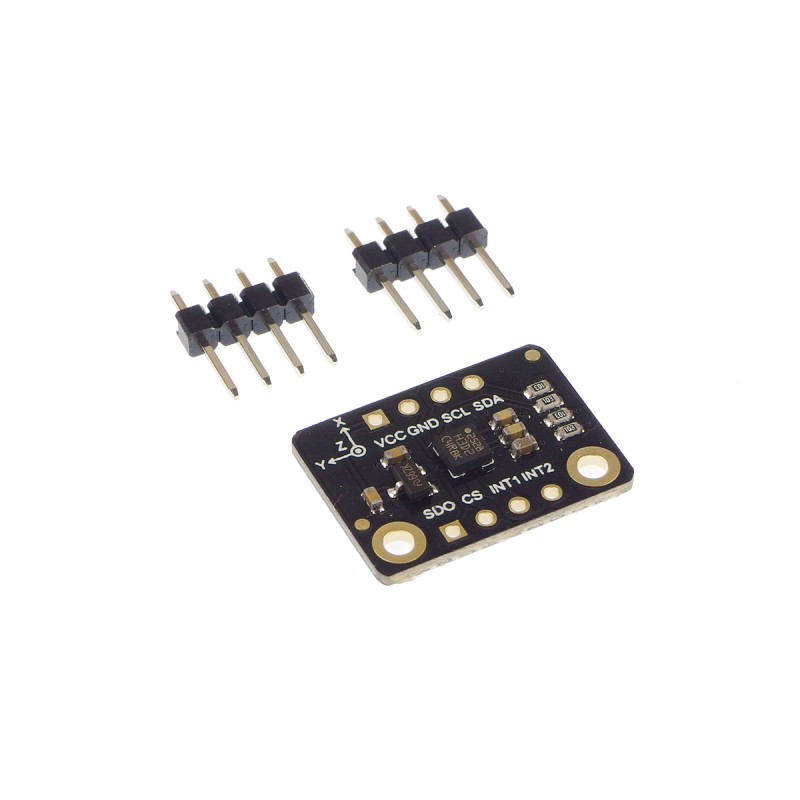

Module with a 3-axis H3LIS200DL accelerometer. The system has a user selectable wide measurement scale of ±100g/±200g. It communicates via the I2C interface. DFRobot SEN0408
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Module with a 3-axis accelerometer with very low power consumption. It has a user selectable wide scale of ±100/±200g and is able to measure accelerations with a data rate of 0.5 Hz to 1 kHz. The sensor is equipped with dedicated algorithms, thanks to which it can detect movement, including free fall, and thanks to the wide measuring range, it is perfect for measuring acceleration, e.g. in crash tests. The module communicates via the I2C interface and is supplied with the voltage 3.3 V. Full documentation is available on the product Wiki page.
Features
- Measuring scale: ±100g/±200g
- 8 bit data output
- I2C interface (address 0x19, 0x18), SPI
- Configurable I2C address
- Data transfer rate: 0.5 Hz to 1000 Hz
- Shock resistance 10000g
- Working voltage: 3.3V
- Current consumption: 10 uA
- Dimensions: 15 x 20 mm
Kit contains
- Fermion: I2C H3LIS200DL Triple Axis Accelerometer
- 2 x 2.54-4P Black Single Row Pin Header
