Gravity: I2C H3LIS200DL Triple Axis Accelerometer Sensor - module with a 3-axis H3LIS200DL accelerometer
zł58.94 tax excl.
Module with a 3-axis H3LIS200DL accelerometer. The system has a user selectable wide measurement scale of ±100g/±200g. There is a Gravity connector on the board. DFRobot SEN0412
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Module with a 3-axis accelerometer with very low power consumption. It has a user selectable wide scale of ±100/±200g and is able to measure accelerations with a data rate of 0.5 Hz to 1 kHz. The sensor is equipped with dedicated algorithms, thanks to which it can detect movement, including free fall, and thanks to the wide measuring range, it is perfect for measuring acceleration, e.g. in crash tests. The module communicates via the I2C interface and is supplied with the voltage from 3.3 V to 5 V. Full documentation is available on the product Wiki page.
Features
- Measuring scale: ±100g/±200g
- 8 bit data output
- Easy to use Gravity interface
- I2C interface (address 0x19, 0x18)
- Configurable I2C address with a switch
- Data transfer rate: 0.5 Hz to 1000 Hz
- Shock resistance 10000g
- Working voltage: 3.3V to 5V
- Current consumption: 10 uA
- Dimensions: 27 x 27 mm
- Mounting holes 3 mm
Kit contains
- Gravity: I2C H3LIS200DL Triple Axis Accelerometer Sensor
- Gravity cable
You might also like
Arduino Uno Rev3 is a popular board with Atmel ATmega328 microcontroller from the AVR family, there are 14 I / O lines, 6 PWM channels and 6 analog inputs. The additional ATmega16U4 microcontroller realizes communication via the USB interface. Arduino A000066
Expansion board for Arduino, allows easy connection of XBee modules, has separate outputs for I2C, SPI and UART buses. The built-in 3.3V voltage stabilizer and operating mode switch make it easier to program the Arduino when the XBee module is connected to the sockets. DFRobot DFR0265
The expansion board is designed for DFRduino M0 or Bluno M0 sets. The board has 31 GPIO pins (including 6 PWM and 6 ADC inputs), UART, I2C and SPI interfaces. The pins are color coded according to the Gravity standard. DFRobot DFR0412
Module with a 3-axis H3LIS200DL accelerometer. The system has a user selectable wide measurement scale of ±100g/±200g. It communicates via the I2C interface. DFRobot SEN0408
Other products in the same category (16)
Module with a temperature and humidity sensor DHT22. It allows you to measure humidity in the range from 0 to 100% and temperature from -40 to 80℃. DFRobot SEN0137
No product available!
Laser dust sensor is a digital universal particle concentration sensor,it can be used to obtain the number of suspended particulate matter in a unit volume of air within 0.3 to 10 microns, namely the concentration of particulate matter, and output with digital interface, also can output quality data of per particle. DFRobot SEN0177
Module with a button and white LED backlight. The board is equipped with a Gravity connector and communicates via a digital interface. DFRobot DFR0785-W
Vibrating sensor module, Plug & Play, omni-directional, designed for switching over low-current circuits. DFRobot DFR0027
Ring light with 12 RGB diodes WS2812B type controlled by serial signal. The module can be powered with the voltage from 3.3 V to 5 V, only one signal line is required to control it. DFRobot DFR0888-12
Module with an analog current sensor. It enables the measurement of AC and DC current up to 50 A. DFRobot SEN0098
No product available!
Current-to-voltage converter module designed for devices with a current signal output. It allows linear conversion of current signals from 0 to 25 mA into voltage signals from 0 to 3 V. DFRrobot SEN0262
Module with an analog MQ6 propane sensor. It is powered with the voltage of 5 V and has an analog output. DFRobot SEN0131
Module with a bistable button and yellow LED backlight. The board is equipped with a Gravity connector and communicates via a digital interface. DFRobot DFR0785-Y
Micro:Mate is an expansion board for the micro: bit development module. It provides six 3-pin connectors with I/O outputs, a 3.5mm audio jack connector and is powered from a 5V microUSB connector. DFRobot DFR0518
No product available!
Module with blue LED, digitally controlled. Perfect for people starting to play with Arduino. Equipped with a Gravity interface. DFRobot DFR0031-B
DC Micro motor module with metal gear with a gear ratio of 50:1. The motor is connected to the board containing the driver. DFRobot DFR0429

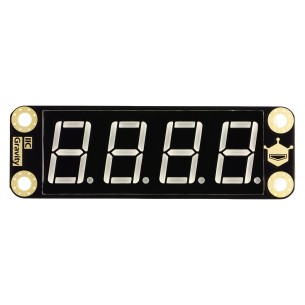

4-digit, 8-segment LED display module with 8-level brightness adjustment. Communication via the I2C interface. DFRobot DFR0645-G
