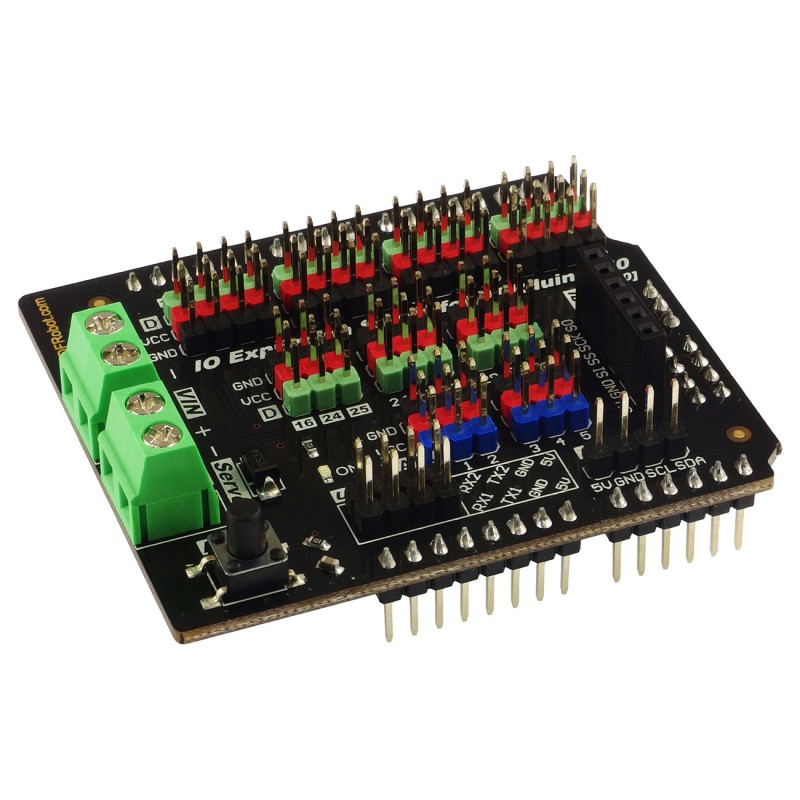

Gravity: IO Expansion Shield - expansion board for DFRduino M0
ID: 569861
5902186313279
zł42.37
Tax included
zł34.45 tax excl.
The expansion board is designed for DFRduino M0 or Bluno M0 sets. The board has 31 GPIO pins (including 6 PWM and 6 ADC inputs), UART, I2C and SPI interfaces. The pins are color coded according to the Gravity standard. DFRobot DFR0412
Description
The expansion board is designed for DFRduino M0 or Bluno M0 sets. The board has 31 GPIO pins (including 6 PWM and 6 ADC inputs), UART, I2C and SPI interfaces. The pins are color-coded according to the Gravity standard, which makes it much easier to identify inputs and connect sensors. The module is powered by a screw connection with a voltage ranging from 7 to 23 V. There is also a connector for powering servos. A user manual is available on the product wiki page.
| 1. External power supply 7-23 V | 6. I2C |
| 2. Servo power supply 5-7 V | 7. SPI |
| 3. Reset | 8. Digital I/O |
| 4. UART | 9. Pin Marks |
| 5. Analog input |
Features
- External power: 7 to 23V
- 5 to 7V servo power connector
- 3-pin connectors (colored), compatible with Gravity
- GPIO: 31 digital pins (6 PWM ports, 6 analog ports)
- UART: 2
- I2C port: 1
- SPI port: 1
- Dimensions: 62 x 54 mm
