LoRa Antenna Kit for Wio-WM1302 Module and reTerminal DM Panel - Seeed Studio 110061501
ID: 1200486
zł26.22
Tax included
zł21.32 tax excl.
The LoRa antenna kit for reTerminal DM and the Wio-WM1302 module provides stable communication in the 824–960 MHz and 1710–2700 MHz bands. With 2 dBi gain, omnidirectional radiation pattern, and durable construction, the antenna is suitable for IoT, industrial automation, as well as monitoring and remote control systems.
Description
The LoRa antenna kit is designed for use with the Wio-WM1302 LoRaWAN Gateway module and the reTerminal DM panel. The antenna operates in the 824–960 MHz and 1710–2700 MHz bands, offering 2 dBi gain and a fully omnidirectional radiation pattern, ensuring stable communication in IoT solutions, industrial automation, or environmental monitoring systems. With included IPEX and SMA connectors, the antenna is ready for quick installation.
Durable construction with a PC radome and a wide operating temperature range from -40°C to +70°C ensure reliability in industrial applications. The antenna complies with REACH and RoHS standards.
Properties
- Compatibility: Wio-WM1302 LoRaWAN Gateway module, reTerminal DM
- Operating frequency: 824–960 MHz / 1710–2700 MHz
- Gain: 2 dBi
- Output impedance: 50 Ω
- VSWR: ≤ 3.0:1
- Polarization: vertical
- Radiation pattern: omnidirectional, 360°
- Maximum input power: 5 W
- Operating temperature: -40°C to +70°C
- Storage temperature: -45°C to +75°C
- Housing: PC radome, environment-resistant
- Compliance: REACH, RoHS

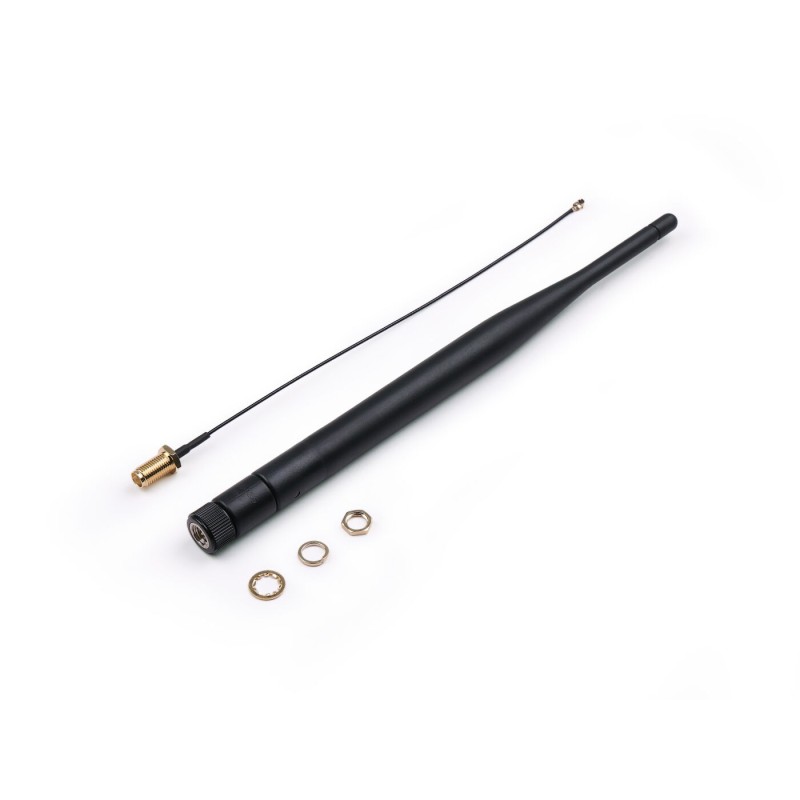

Set includes
- 1 × LoRa antenna
- 1 × SMA connector
- 1 × IPEX connector
