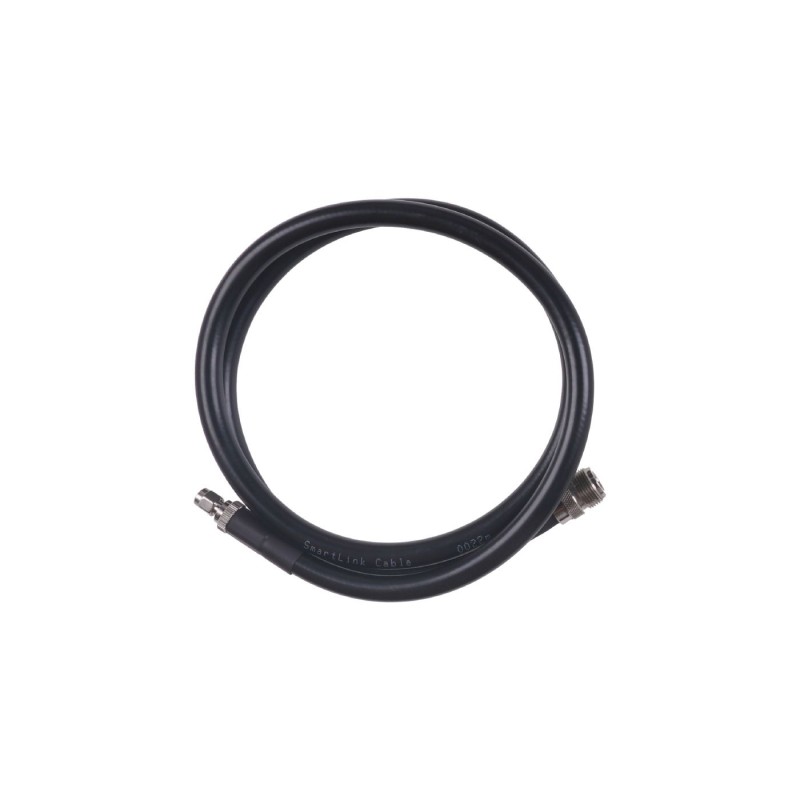

RF Cable N-female to RP-SMA-male 1m CFD400 – low-loss antenna cable - Seeed Studio 321990875
ID: 1200523
zł49.90
Tax included
zł40.57 tax excl.
RF Cable N Female to RP-SMA Male 1 m CFD400 Seeed Studio 321990875 is a low-loss, high-durability antenna cable designed for connecting Fiberglass antennas to SenseCAP M1 gateways and other LoRaWAN devices. It ensures stable signal transmission in IoT applications and long-range networks.
Description
The CFD400 RF cable with a length of 1 m is designed for connecting antennas with LoRaWAN gateways such as the SenseCAP M1 Indoor Gateway and SenseCAP Outdoor Gateway. The high-quality construction with a copper conductor, aluminum-PE shielding, and tinned copper braid ensures low signal loss and high mechanical durability in outdoor applications. The cable is terminated with N Female and RP-SMA Male connectors, allowing easy connection of Fiberglass antennas and IoT devices.
Properties
- Cable type: CFD400, industrial, low-loss
- Length: 1 m (±30 mm)
- Impedance: 50 Ω
- Operating frequency range: 0–6000 MHz
- Attenuation: typically 0.15 dB @ 900 MHz, ≤1.5 dB @ 6 GHz
- VSWR: typically 1.1 @ 900 MHz, ≤1.5 @ 6 GHz
- Capacitance: 76 pF/m
- Propagation velocity: 85%
- Minimum bending radius: 25.4 mm
- Insulation resistance: >1000 MΩ
- Dielectric strength: 2.5 kV
- Outer cable diameter: 10.3 mm
- Connectors: N Female / RP-SMA Male
- Connector lifespan: >500 cycles
- Materials: copper conductor, aluminum-PE shielding, tinned copper braid, PE jacket
- Operating temperature: -30°C to +65°C
- Compliance: RoHS
1200523
Data sheet
- Cable type
- M-F
- Cable length (cm)
- 100 cm
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
The adapter allows you to connect the antenna with the SMA 50 Ω female connector to the device with the uFL socket (also known as u.FL, IPEX, IPAX, IPX, MHF, AM). The cord has a length of 20cm.
zł8.66
4 weeks
No product available!
The adapter allows you to connect the antenna with the SMA 50 Ω female connector to the device with the MCX socket. The cord has a length of 13cm
zł7.90
4 weeks
No product available!
The 40 cm RP-SMA (female) to uFL/u.FL RF adapter cable is ideal for connecting radio modules, routers and antennas, providing a reliable connection of high-frequency signals in applications such as Wi-Fi, Bluetooth and IoT. Thanks to its solid construction and flexible 1.13 mm diameter cable, it is damage-resistant and easy to install, even in hard-to-reach places.
zł6.73
24h
Available quantity: 62
Available
RF Cable RPSMA-male to RPSMA-female 400 mm Seeed Studio 321990975 is a low-loss antenna cable designed for indoor and outdoor installations. Thanks to its flat design and robust connectors, it is suitable for RF systems, including RF Explorer antennas and Helium hotspots.
zł49.32
4 weeks
No product available!
SMA–MCX coaxial cable, 2 m long and with 50 Ω impedance, provides reliable connection in radio and measurement systems. Made of RG316 cable, it ensures low signal loss and durability thanks to gold-plated connectors.
zł23.00
24h
Available quantity: 5
Available
The adapter allows you to connect the antenna with a standard 75 Ω connector to the device with the MCX connector. The cable length is 13cm, it is often used in USB DVB-T tuners
zł5.85
24h
Available quantity: 7
Available

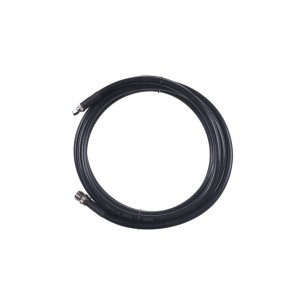

RF Cable N Female to RP-SMA Male 3 m CFD400 Seeed Studio 321990876 is a low-loss, high-durability antenna cable designed for connecting Fiberglass antennas to SenseCAP M1 gateways and other LoRaWAN devices. It ensures stable signal transmission in IoT applications and long-range networks.
