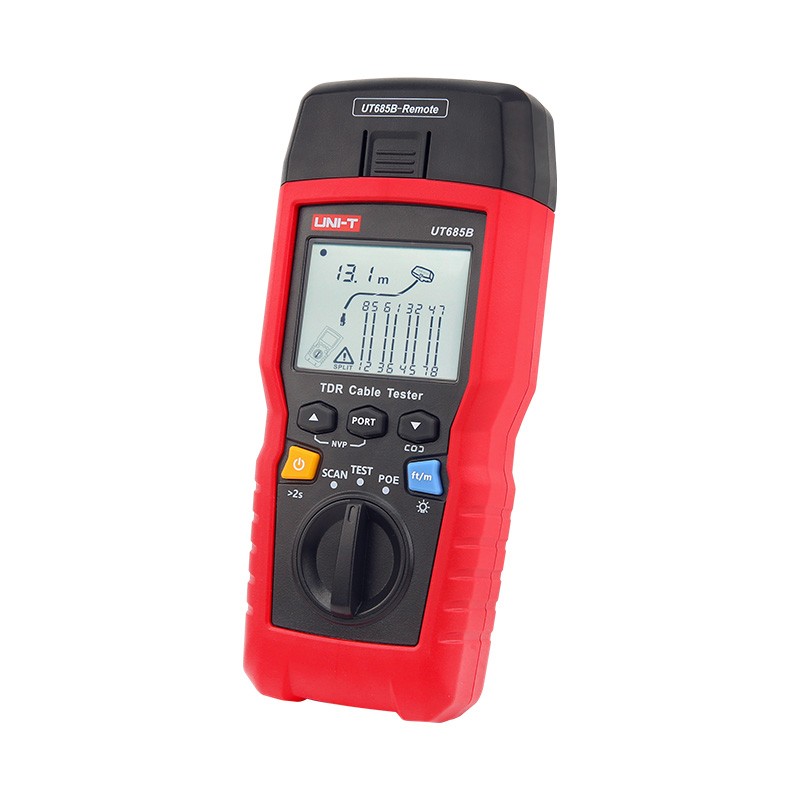

UNI-T UT685B - TDR cable tester
ID: 1202109
6935750568507
zł618.80
Tax included
zł503.09 tax excl.
A TDR cable tester that allows you to check twisted-pair, coaxial, and POE network cables. The device allows you to locate cables, measure lengths up to 500 m, check line sequence, and detect compliance with POE standards. With a backlit 2.8-inch LCD display, dead-zone-free TDR technology, and built-in RJ11, RJ45, and coaxial ports, the tester is easy to use and highly functional. UNI-T UT685B
Description
UT685B KIT is an advanced TDR cable tester that enables comprehensive testing of various types of cables, including twisted pairs, coaxial cables, and POE network cables. The device allows for quick cable location, measurement of cable length, verification of line sequence, and confirmation of POE standard compliance. Integrated RJ11, RJ45, and coaxial test ports support nearly all low-voltage cables without additional adapters. Thanks to TDR technology, the tester eliminates "dead zones," providing full control over cables. The device features a clear, backlit 2.8-inch LCD display with an intuitive graphical interface, making it easy to use even for beginners. It also offers digital cable tracing and port signaling functions, simplifying network installation and maintenance.
The UT685B KIT can measure cables up to 500 meters with a resolution of 0.33 m and an accuracy of ±4% or 0.6 m. The device also provides protection against DC voltage up to 70 V, enhancing user safety. An automatic shutdown function after 10 minutes of inactivity helps conserve power, and operation from 4 AAA batteries makes the tester portable and convenient for field use. The UT685B KIT is certified according to CE, UKCA, and RoHS standards, ensuring high quality and reliability. It significantly improves work efficiency, reduces errors in testing, and enables fast troubleshooting of cable networks.
Features
- Cable types supported: UTP, FTP, SSTP, coaxial cables 50Ω, 75Ω, 93Ω
- Cable length measurement range: 500 m
- Resolution: 0.33 m
- Accuracy: ±4% or 0.6 m
- POE detection: 802.3AF, 802.3AT standards
- Test ports: RJ11, RJ45, coaxial
- Technology: TDR – no dead zones
- Backlit display: 2.8-inch LCD with graphical interface
- Voltage protection: 70 V DC
- Automatic shutdown: after 10 minutes
- Power supply: 4 AAA batteries
- Product dimensions: 180 × 84 × 37.8 mm
- Certifications: CE, UKCA, RoHS
Kit contains
- UT685B KIT tester
- RJ45 adapter cable
- RJ11 adapter cable
- RJ11 cable with crocodile clip
- F-connector adapter
- User manual
