M12 35mm 8° 1/1.7" Lens + Adapter for Raspberry Pi HQ - ArduCam LN059
ID: 1203021
zł116.30
Tax included
zł94.55 tax excl.
M12 lens with a 35mm focal length and an 8° field of view, intended for 1/1.7" sensors, supplied with an adapter enabling mounting on the Raspberry Pi High Quality Camera. ArduCam LN059
Description
An M12-mount lens with a fixed focal length of 35mm is used in vision systems that require a narrow field of view and observation of objects from a greater distance. The 8° field of view allows precise framing of the scene, which is applied in monitoring, visual inspection, and projects requiring significant image magnification.
The lens design is adapted for use with sensors in the 1/1.7" format. The included adapter allows the M12 lens to be mounted on the Raspberry Pi High Quality Camera equipped with a standard C/CS mount. This solution enables the use of compact M12 optics in applications based on the HQ camera without modification of the module.
The metal housing provides mechanical stability during operation in vision applications and prototyping environments.

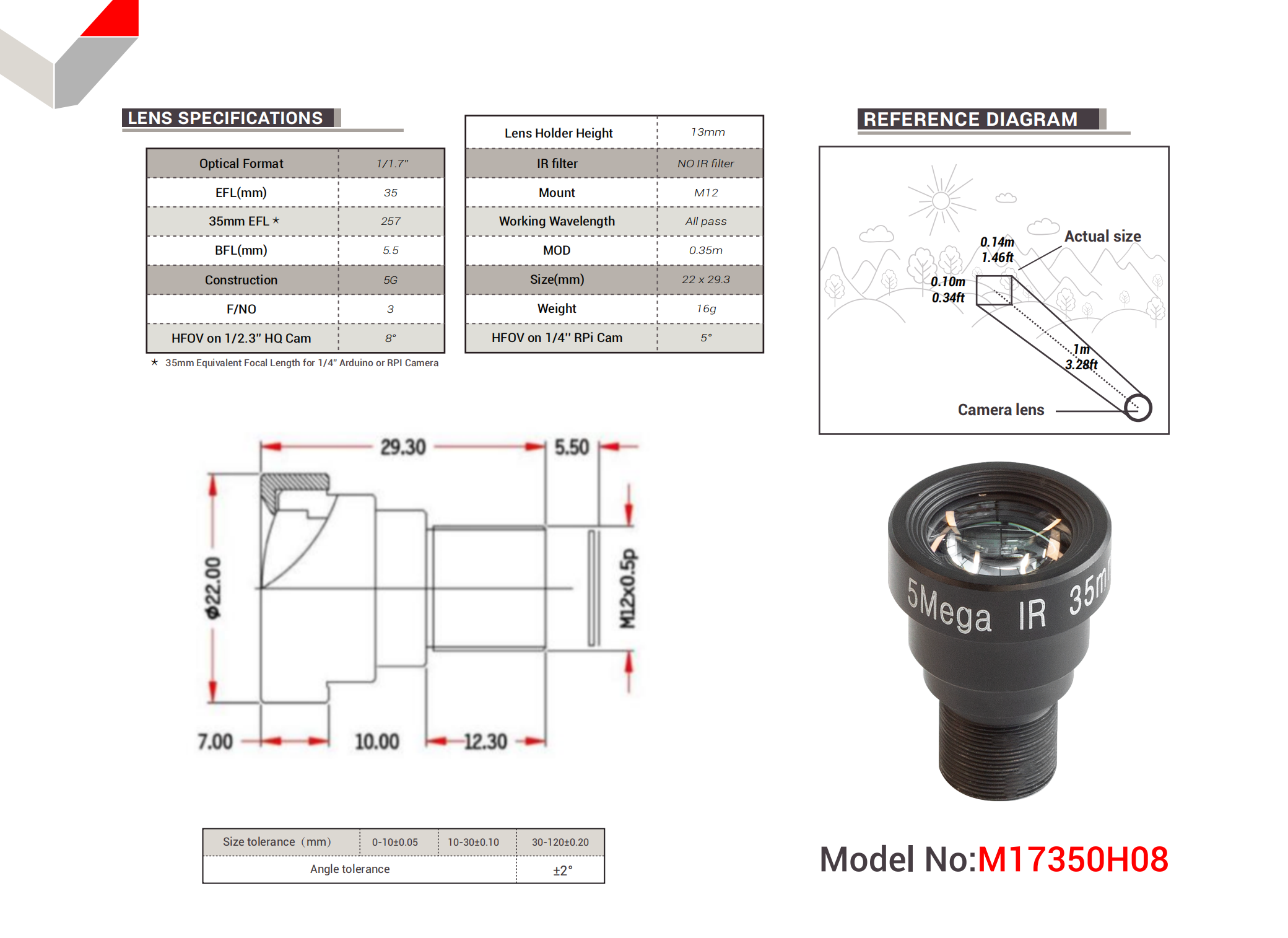

Features
- Lens type: fixed focal length
- Focal length: 35 mm
- Mount: M12 (S-mount)
- Compatible sensor format: 1/1.7"
- Aperture (F/NO): F3.0
- 35 mm equivalent focal length: 257 mm
- Back focal length (BFL): 5.5 mm
- Field of view on 1/2.3" HQ camera (HFOV): 8°
- Field of view on 1/4" RPi camera (HFOV): 5°
- Optical construction: 5G
- IR filter: none
- Working wavelength: all pass
- Minimum object distance (MOD): 0.35 m
- Lens holder height: 13 mm
- Dimensions: 22 x 29.3 mm
- Weight: 16 g
- Focus adjustment: manual
Kit includes
- 1x M12 35 mm lens
- 1x mounting adapter for Raspberry Pi High Quality Camera
1203021
Data sheet
- Lens assembly
- M12
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
