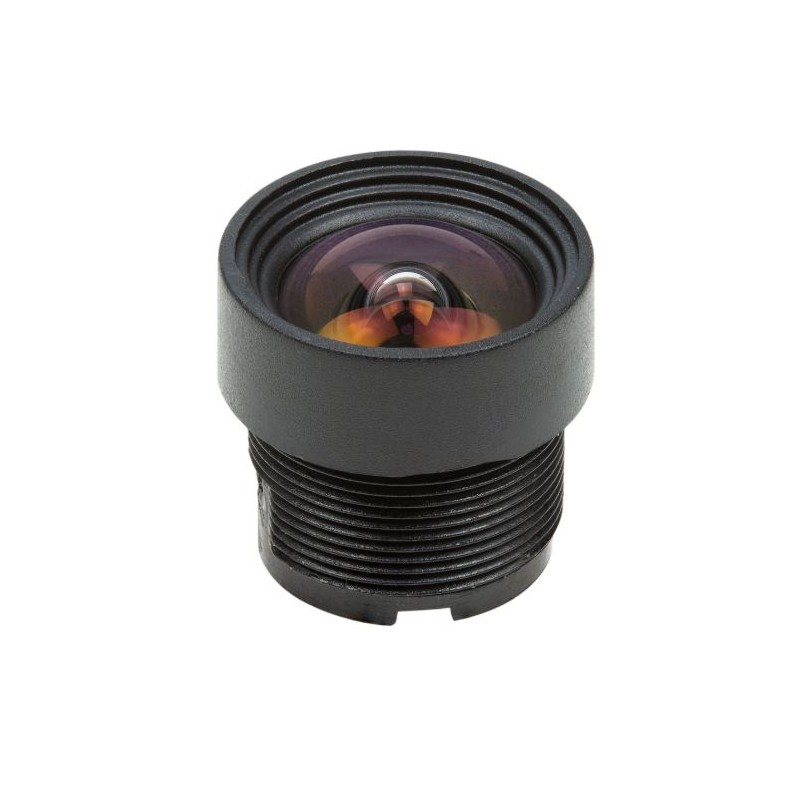

Camera lens with an M12 mount and a 2.1mm focal length featuring reduced geometric distortion, intended for camera modules with 1/4" sensors. ArduCam LN014 M40210M09S

4 weeks
Awaiting delivery
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

An M12-mount lens with a fixed focal length of 2.1mm is used in vision systems that require a very wide field of view while limiting image distortion. The low-distortion optical design provides improved scene geometry compared to standard wide-angle lenses, which is relevant in image analysis applications, robotics, and vision systems.

The lens is designed for use with 1/4" image sensors applied in compact camera modules. The standard M12 (S-mount) interface allows manual focus adjustment by screwing the lens into the camera mount, without the need for additional adapters.

Features

  • Lens type: fixed focal length
  • Optical characteristic: low distortion
  • Focal length: 2.1 mm
  • Mount: M12 (S-mount)
  • Compatible sensor format: 1/4"
  • Aperture: F2.0
  • 35 mm equivalent focal length: 14.6 mm
  • Back focal length (BFL): 5 mm
  • Field of view (D/H/V): 160° / 126° / 92°
  • Optical construction: 6G + IR
  • IR filter: 650 nm
  • Operating wavelength range: 400 – 700 nm
  • Minimum object distance (MOD): 0.2 m
  • Dimensions: 14 x 16.8 mm
  • Weight: 6 g
  • Focus adjustment: manual
1203040

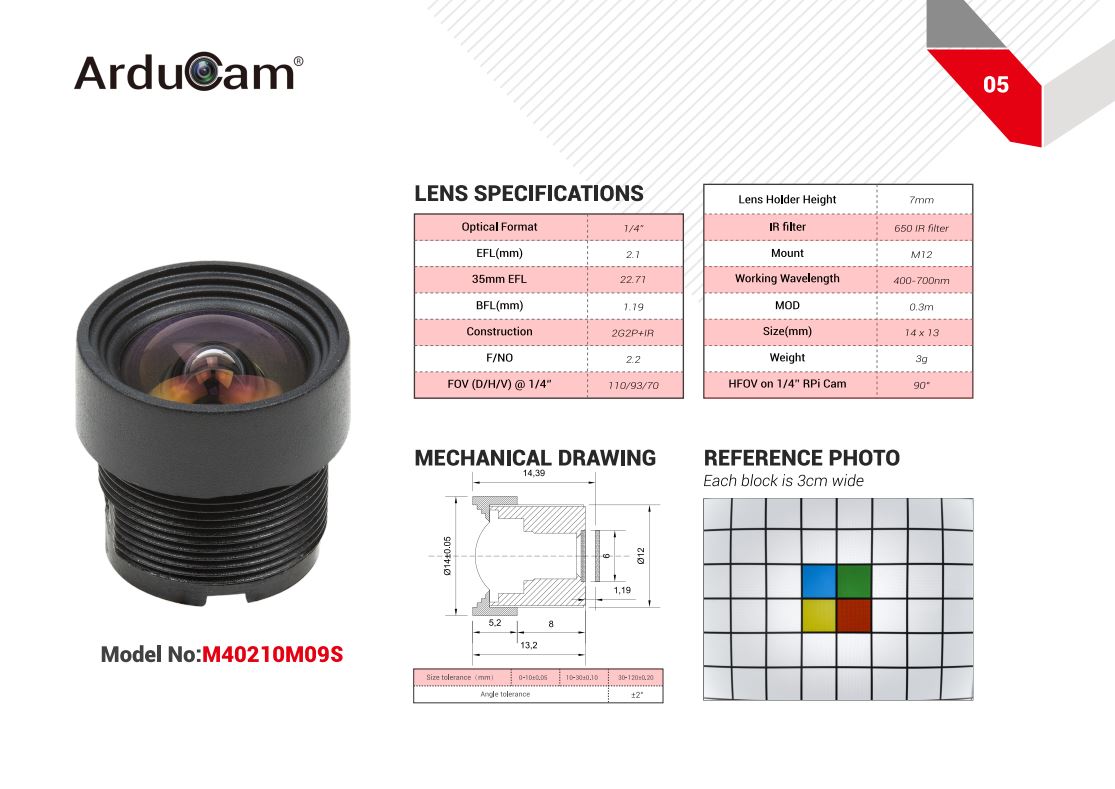

Data sheet

Lens assembly
M12/S mount
