ArduCAM 64MP Camera and Pan-Tilt Kit - kit with 64MP camera and 2 DOF platform for Raspberry Pi
ID: 1181362
€122.41
Tax included
€99.52 tax excl.
A set with a 64 MP camera and a 2 DOF control platform designed for Raspberry Pi minicomputers. The camera has an integrated IR filter and autofocus. The control platform is based on two digital servos that allow you to control the position of the camera in two dimensions. ArduCAM B0399B0283
Description
A set with a 64 MP camera and a 2 DOF control platform designed for Raspberry Pi minicomputers. The camera is equipped with an integrated IR filter. The control platform is based on two digital servos that allow you to control the position of the camera in two dimensions, making movements of 180 degrees horizontally and 145 degrees vertically. A board with a dedicated controller was used to control the servos. The set will be used as an image sensor in motion tracking applications.
Features
Camera
- Pi Hawk-Eye
- Resolution: 64MP 9152 x 6944
- Frame rate: 1080p30, 720p60, 640x480p60/90
- Integrated IR filter
- Optical Size: 1/1.7"
- Autofocus
- F1.8
- Focal length: 5.1 mm
- Shutter type: rolling shutter
- QBC color filter
- Output format: JPEG, YUV, RGB, RAW10
- Field of view: 84°
- Camera board dimensions: 25 x 24 mm
Servo GH-S37D
- Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V
- Operating Speed: 0.13sec/60° at 3.6V, 0.09sec/60° at 4.8V
- Operating Voltage: 3.6v~4.8v
- Operating Current: <350mA
- Dead Band: 3 usec
- Dimension: 20 x 8.75 x 22mm
Control Board
- PWM resolution: 12-bit
- Communication interface: I2C
- Operating voltage: 3.3V/5V
- Dimension: 38 x 28 mm
Kit contains
- Pi Hawk-Eye 64 MP camera
- 2 x Digital Servo
- Bracket and bolt kit
- Control board
- 4 x connection cable
1181362
Data sheet
- Resolution
- 64 MPx
- Interface
- MIPI CSI-2
- Sensor
- Inna
- IR filter
- Yes
- Lens assembly
- none
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
The latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.5GHz, 1GB RAM LPDDR4, Broadcom VideoCore VI layout.
€42.42 24hAvailable quantity: 146 AvailableThe latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.5GHz, 2GB RAM LPDDR4, Broadcom VideoCore VI.
€53.26 Delivery date unknown No product available!
The long-awaited Raspberry Pi 4 model B with the SoC Broadcom BCM2711 SoC (4 x Cortex-A72) running at 1.5GHz, 4 GB LPDDR4 RAM and the Broadcom VideoCore VI graphics chip
€66.76 24hAvailable quantity: 166 Available
Other products in the same category (16)
IMX219-120-4Lane 8MP camera module for Raspberry Pi 5, offering a 3280×2464 pixel image resolution and a 120° wide viewing angle. With its MIPI-CSI-4Lane interface and compact design, it is ideal for monitoring, robotics and machine vision systems. DFRobot SEN0631
€35.05 24hAvailable quantity: 4 AvailableCamera with a global shutter designed for Raspberry Pi minicomputers. Works with all versions of minicomputers with a CSI slot. The camera is equipped with a Sony IMX296 sensor with a resolution of 1.5 MPx and a built-in IR filter. Raspberry Pi Global Shutter Camera
€64.83 24hAvailable quantity: 49 AvailableModule with IMX462 sensor working with Raspberry Pi. It has a 2 MP matrix and is compatible with ISP and Gstreamer. ArduCAM B0333
€80.75 4 weeks No product available!
- Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision€25.14 24hAvailable quantity: 4 Available
Module with a 64 MP camera designed for Raspberry Pi minicomputers. Equipped with autofocus and 10x digital zoom. ArduCAM B0399
€77.74 24hAvailable quantity: 2 Available8 Mpx camera module with IMX219 sensor with low distortion lens. The camera is intended for use as a replacement on the RPI Camera Board V2. ArduCAM B0184
€21.06 24hAvailable quantity: 3 AvailableOfficial camera module set to work with Raspberry Pi minicomputers. Equipped with a Sony IMX708 sensor with a resolution of 12 Mpx and a lens with a viewing angle of 120 ° with autofocus. Raspberry Pi SC0874
€42.18 24hAvailable quantity: 23 AvailableAn advanced computer vision kit that combines an integrated Raspberry Pi 5 with a 64 MP camera for high-quality images, plus built-in autofocus and 10x digital zoom. The kit, ready to use with OpenCV-Python and TensorFlow, offers a convenient user experience that makes it easy to create complex imaging and analysis projects. ArduCAM B0513
€225.70 24hAvailable quantity: 1 AvailableCamera with a resolution of 8 MPx with a USB interface. Equipped with a CMOS IMX219 sensor with a lens with a viewing angle of 62° and a 30 cm extension cord. ArduCAM B0320
€60.07 24hAvailable quantity: 1 AvailableCamera module with OV5647 sensor and movable IR filter. Works with all versions of the Raspberry Pi. The camera is equipped with a matrix with a resolution of 5 MPx. ArduCAM B0151

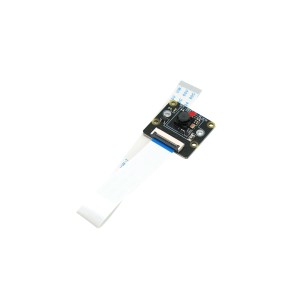

€59.60 24hAvailable quantity: 1 AvailableHigh quality 8 megapixel Sony IMX219 image sensor custom designed add-on board for Raspberry Pi, featuring a fixed focus lens. It\'s capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60, and 640x480p90 video
