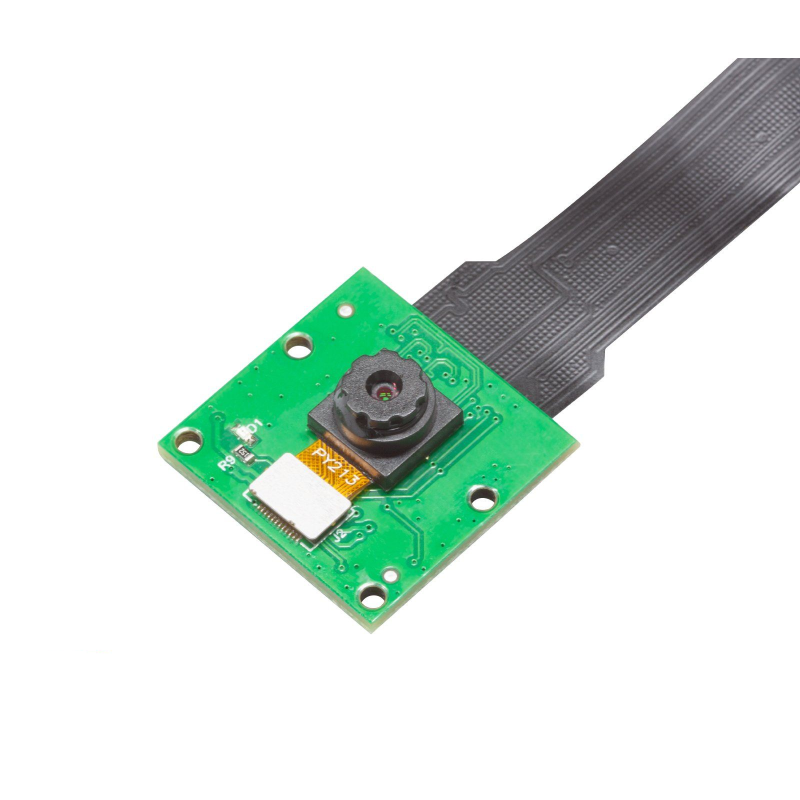

ArduCam B0530 – main view
search
  • ArduCam B0530 – main view
  • ArduCam B0530 – dimensions
  • ArduCam B0530 – camera cable
  • ArduCam B0530 – camera cable (angled)
  • ArduCam B0530 – front view
  • ArduCam B0530 – rear view
  • OV5640 camera connected to RZ/V2L
  • FFC connection of OV5640 camera
ID: 1203006
zł116.30
Tax included

zł94.55 tax excl.

A camera module with a 5 MP OV5640 image sensor, designed for use with the Renesas RZ/V2L Evaluation Kit, featuring a wide-angle lens with an 84.2° field of view and support for Full HD 1080p video at 30 fps. ArduCam B0530

4 weeks
Awaiting delivery
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The ArduCam B0530 camera module is designed for vision systems based on the Renesas RZ/V2L Evaluation Kit, where high image quality and a compact form factor are required. The integrated 5MP OV5640 image sensor (2592 × 1944) enables detailed image capture and supports Full HD video streaming.

The camera supports video modes up to 1920 × 1080 at 30 fps, making it suitable for monitoring, image inspection, machine vision systems, and Vision AI gateways. Support for multiple output formats, including RAW, RGB, YUV, and JPEG, allows flexible integration with various image processing pipelines.

A fixed-focus wide-angle lens with a 84.2° field of view enables coverage of a broad scene without the need for additional cameras. The compact 24 × 25 mm camera board makes the module easy to integrate into space-constrained designs. The module also features an integrated IR-cut filter, intended for visible-light applications.

Note!

Before using the camera, please follow the QUICK START guide below for configuration.

Features

  • Image Sensor
    • Sensor: OV5640
    • Sensor type: CMOS
    • Resolution: 5 MP
    • Shutter type: Rolling shutter
    • Optical format: 1/4"
    • Pixel size: 1.4 µm × 1.4 µm
    • Active area: 2592 × 1944
  • Video Output
    • Output formats: 8-/10-bit RGB RAW, RGB, YUV, JPEG
    • Video modes:
    • 2592 × 1944 @ 15 fps
    • 1920 × 1080 @ 30 fps
    • 1280 × 720 @ 30 fps
    • 720 × 480 @ 30 fps
    • 640 × 480 @ 60 fps
  • Lens
    • Focus type: Fixed focus
    • Lens mount: Stock lens
    • Focal length (EFL): 4.22 mm
    • Aperture: F2.0 ±5%
    • Field of view (D/H/V): 84.2° / 71.7° / 57°
    • Distortion: < 1.0%
    • IR filter: Integrated IR-cut filter, visible light only
  • Power and Mechanics
    • Operating voltage: 3.3 V
    • Operating current: max. 300 mA
    • Camera board size: 24 × 25 mm
  • Functionality and Compatibility
    • Supported platform: Renesas RZ/V2L
  • Environmental Conditions
    • Operating temperature: 0°C to 70°C

Kit Includes

  • 1× ArduCam 5MP OV5640 Camera Module
  • 1× 24-pin to 15-pin camera cable, 15 cm
1203006

Data sheet

Resolution
5MPx
Interface
MIPI CSI-2
Sensor
OV5640
IR filter
Yes
Lens assembly
none
