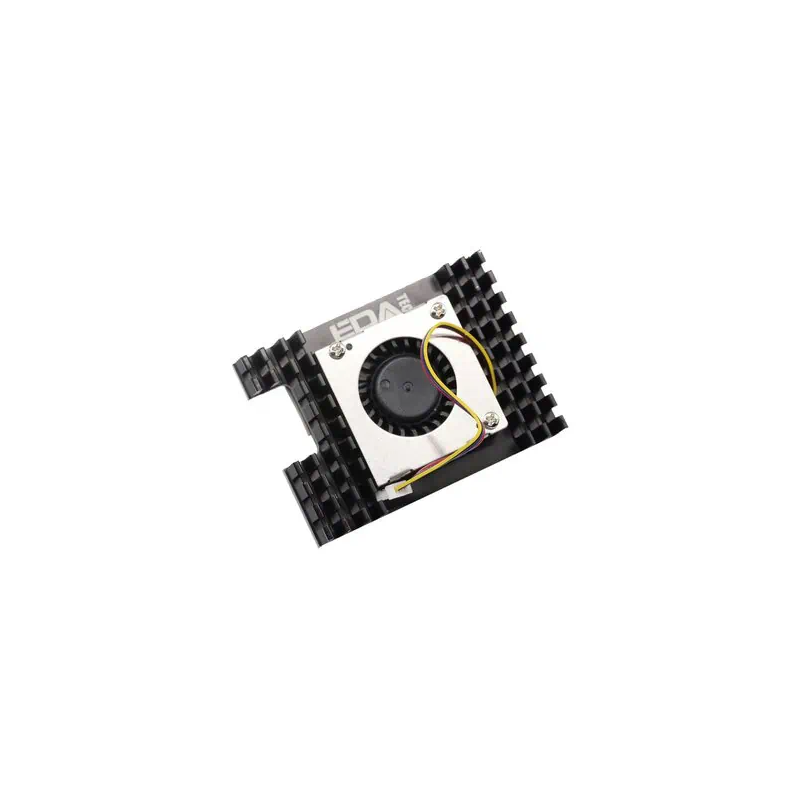

ED-CM5-ACooler - Active cooling for Raspberry Pi CM5
ID: 1195068
5906623496808
zł25.03
Tax included
zł20.35 tax excl.
The ED-CM5-ACooler is an active cooling system designed for the Raspberry Pi Compute Module 5 (CM5). Made of aluminum and equipped with a temperature-controlled fan, it ensures efficient heat dissipation from the CM5's processor, Wi-Fi module, and power management unit
Description
The ED-CM5-ACooler is an active cooling system specifically designed for the Raspberry Pi Compute Module 5 (CM5). Made of aluminum, it features a temperature-controlled fan that enables efficient heat dissipation from the processor, Wi-Fi module, and power management unit. This allows the CPU to operate continuously at its maximum clock frequency. The ED-CM5-ACooler system is perfect for applications that demand high performance and low operating temperatures, particularly in cases of CPU overclocking or intensive use of the CM5.
Features
- Cooling Performance: At an ambient temperature of 25°C, the ED-CM5-ACooler reduces the CPU's operating temperature by 27°C, achieving a stable temperature of 57.6°C compared to 84.3°C without active cooling
- Input Voltage: 5V DC (range 3.5-5.5V)
- Maximum Rotational Speed: 8000 RPM ± 15%
- Airflow: 1.09 CFM
- Noise Level: 27.7 dB
- Power Consumption: 0.75 W
- Dimensions: 56.5 mm × 41 mm × 14.1 mm
- Weight: 31 g
- Material: Aluminum profile
1195068
Data sheet
- Compatible with
- Raspberry Pi CM5
- Montage
- Inny
- Access to GPIO
- Yes
- Assembly
- screws
- Włącznik
- Nie
- Houses camera
- No
- Fan
- with mounted fan
- Houses screen
- without screen bracket
- Colour
- Black
- Materiał
- Aluminum
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
