The Pi5 Module BOX-B kit offers a comprehensive solution for building a compact, high-performance mini-computer based on the Raspberry Pi 5. With an aluminum enclosure, PCIe expansion to four USB 3.2 Gen1 ports, and versatile mounting options, it is ideal for desktop use, workstations, home servers, and embedded projects requiring high reliability and flexibility.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

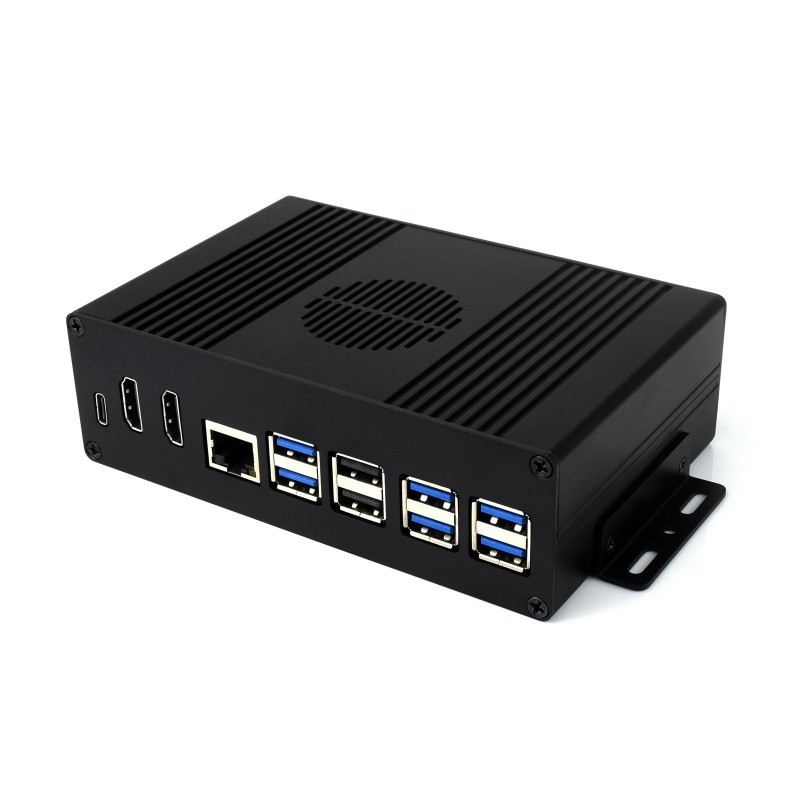

Integrated mini-PC enclosure kit designed for the Raspberry Pi 5 (not included), allowing the board to be transformed into a full-featured desktop device. The BOX-B version includes a PCIe adapter that expands the Raspberry Pi 5 with four USB 3.2 Gen1 ports. The enclosure is made of aluminum and features a white base plate with ample internal space for mounting additional modules, such as HATs (including PoE). The kit includes an HDMI + Type-C adapter, supports dual 4K output, offers front or rear power input options, and allows for fan installation to enhance cooling.

Specifications

  • Compatibility: Raspberry Pi 5
  • PCIe adapter: 4x USB 3.2 Gen1 ports
  • Enclosure material: aluminum alloy + aluminum base
  • Included connectors: dual-female HDMI, USB Type-C, screw terminal
  • Power input: front or rear of the enclosure
  • Video output: dual 4K support
  • Ventilation: ventilation holes, fan mountable (fan not included)
  • Mounting options: rail guides, wall brackets
  • Internal space: for cable management and additional modules

Included

  • Pi5 Module BOX-B
  • HDMI and Type-C adapter x1
  • PCIe adapter to 4x USB 3.2 Gen1 x1
  • Metal case with aluminum base plate x1
  • Silicone power button x1
  • PCIe cable x1
  • Screw terminal connector x1
  • Screw set x1
  • SH1.0 3PIN cable x1
  • SH1.0 3PIN split cable x1
  • PH2.0 3PIN cable x1
1197397

Data sheet

Compatible with
Raspberry Pi 5
Montage
Brak
Access to GPIO
No
Assembly
screws
Włącznik
Nie
Houses camera
No
Fan
with fan bracket
Houses screen
without screen bracket
Colour
Black
Materiał
Aluminum
