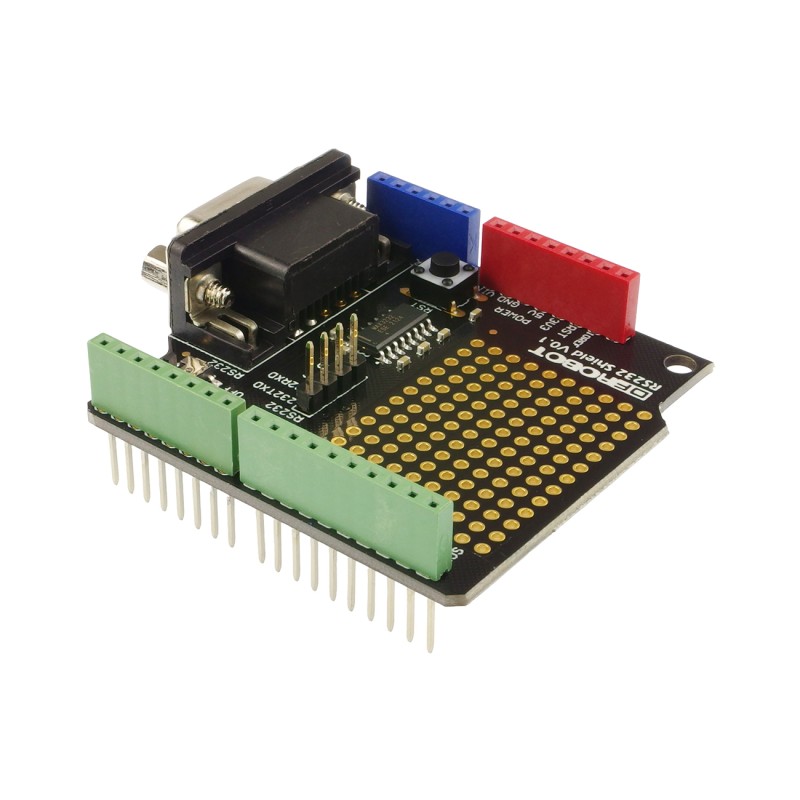

RS232 Shield - UART-RS232 converter for Arduino
ID: 1179257
zł47.05
Tax included
zł38.25 tax excl.
UART-RS232 converter module. It enables communication of Arduino boards with industrial modules. DFRobot DFR0258
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
UART-RS232 converter module dedicated to Arduino boards. It is based on the MAX3232 chip and enables communication at much greater distances than the UART interface. The board has an area with prototype holes, an Arduino connector and three connectors with an RS232 interface: DB9 and goldpin. The user can configure the transceiver's operating mode by means of the switches. The module is powered with the voltage of 5 V. It will be used in industrial applications. Full documentation with examples of use is available on the product page.
Features
- UART interface
- DB9 connector for connecting the RS232 line
- Goldpin connector
- Mode switch: programming or communication
- LED indicator
- Prototype hole area
- Reset button
- Supply voltage: 5V
- Dimensions: 55 x 53 mm
1179257
Data sheet
- Communication
- RS232
