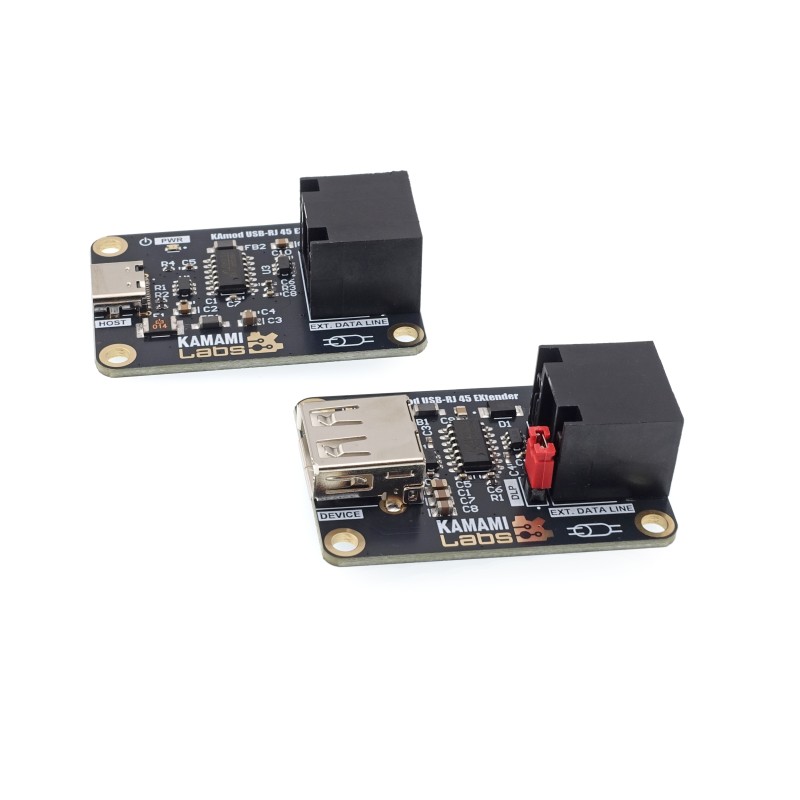

Top view – front side of the modules
search
  • Top view – front side of the modules
  • Side view – front side of the modules
ID: 1195794
zł51.91
Tax included

zł42.20 tax excl.

USB extender enabling data transmission between a computer and a USB device over a long distance using an RJ45 Ethernet cable, consisting of two modules, UPPER and LOWER, intended for industrial, audiovisual, and service applications

24h
Available
Available quantity: 98

Description

A set of two modules intended for extending a USB connection over a distance greater than that allowed by standard USB cables. The UPPER module is connected to the computer, while the LOWER module is connected to the USB device, and communication between them is carried out using an Ethernet cable terminated with RJ45 connectors.

The use of differential transmission allows stable data transfer with the use of commonly available network patch cords. The modules are powered from the USB C port on the UPPER module side and are equipped with LED indicators informing about the presence of supply voltage. Thanks to built-in ESD protection, the solution is characterized by increased resistance to damage, which makes it suitable for industrial installations, audiovisual systems, KVM systems, as well as service and consumer applications.

External power supply connector

Jumper for connecting the power supply voltage from the UPPER module



Features

  • USB connector type in the UPPER module: USB Type-C (socket)
  • USB connector type in the LOWER module: USB Type-A (socket)
  • Communication connector type between modules: RJ45 (socket)
  • Module power supply: 5 V DC
  • Power source: USB Type-C port in the UPPER module
  • Power indication: LED indicators on both modules
  • Built-in ESD protection on all USB and RJ45 ports
  • Maximum connection length between modules: approximately 20 m
  • Possibility of connecting an external power supply in the LOWER module: 5 V DC
  • E5V connector type in the LOWER module: 1x2 goldpin
  • DLP connector type in the LOWER module: 1x2 goldpin
  • PCB dimensions of a single module: 45 x 30.8 mm
  • Number of PCBs in the set: 2
  • Mounting hole diameter: 3.2 mm
  • Mounting hole spacing: 39 x 25 mm
