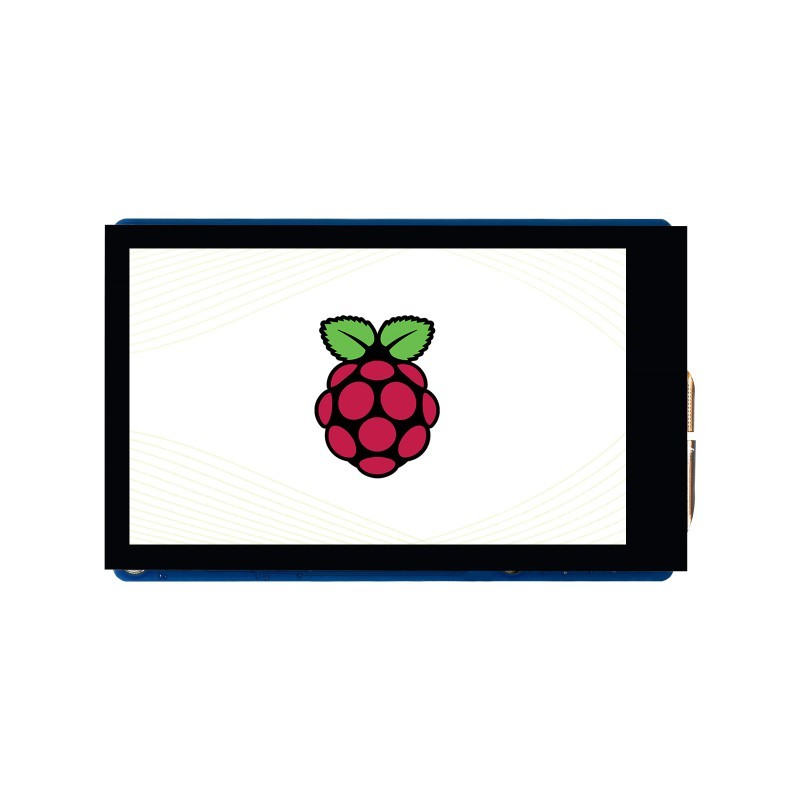

Main view
search
  • Main view
  • Display powered off
  • Display powered on – top view
  • Example application
  • Display side view
  • Controller board – top view
  • Controller board – angled view
ID: 1202593
zł163.91
Tax included

zł133.26 tax excl.

3.5-inch DSI capacitive touchscreen with IPS panel, 5-point multi-touch support, and 480 × 800 resolution, designed for boards from the Raspberry Pi series. Waveshare 3.5inch DSI LCD (H)

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Waveshare 33087 serves as a compact DSI touchscreen display designed for use with Raspberry Pi series boards. The integrated 3.5-inch IPS panel with a resolution of 480 × 800 pixels provides wide viewing angles up to 170° and good image clarity for embedded applications, user interfaces, and multimedia projects.

The display uses the DSI interface, enabling direct connection to the dedicated Raspberry Pi connector without occupying GPIO pins. The default screen orientation operates in portrait mode (480 × 800), with the option to switch to landscape mode through software configuration.

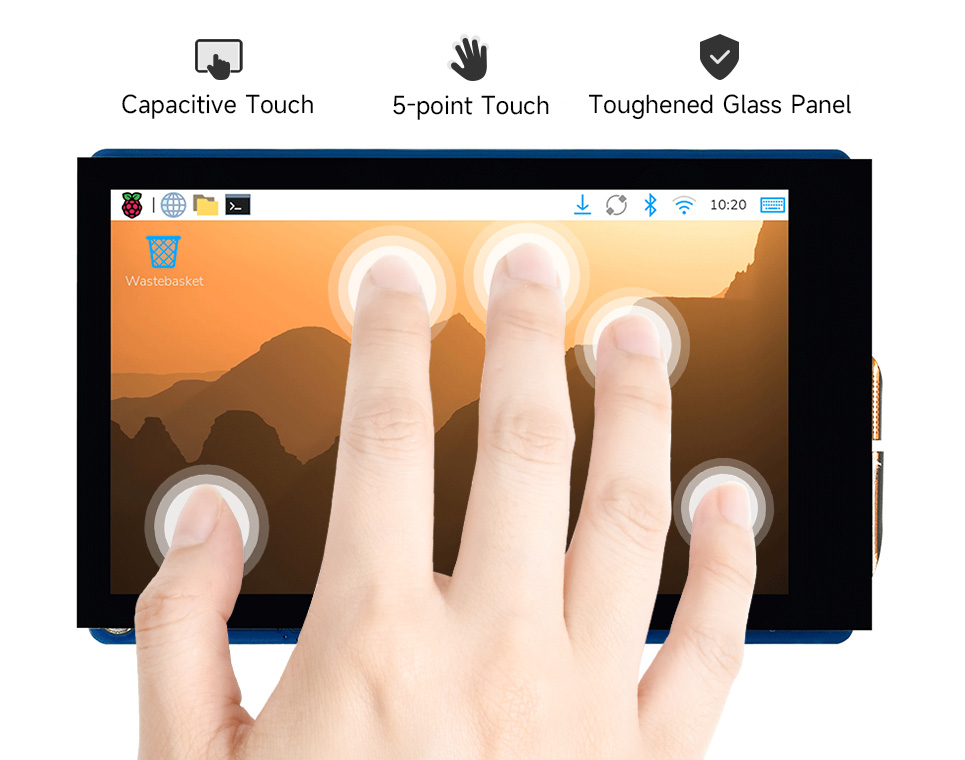

An integrated capacitive touch panel supports up to five simultaneous touch points and communicates via the I2C bus. The front surface features tempered glass with hardness up to 6H, improving resistance to scratches and mechanical damage. Touch functionality operates natively under Raspberry Pi OS, ensuring full software compatibility.

The solution targets HMI interfaces, control systems, educational projects, and embedded devices requiring a compact touchscreen display with good image quality and straightforward integration. The product comes from Waveshare, a manufacturer specializing in display solutions for embedded systems.

                                                                                                                    Compatibile with Raspberry



Features

  • Display
    • Diagonal size: 3.5 inch
    • Panel type: IPS
    • Resolution: 480 × 800
    • Viewing angle: 170°
    • Default orientation: portrait (H × V)
  • Touch Panel
    • Type: capacitive
    • Touch points: up to 5
    • Touch interface: I2C
    • Protective glass: tempered, hardness up to 6H
  • Interface
    • Display interface: DSI
    • Connector: FPC ribbon cable
  • Compatibility

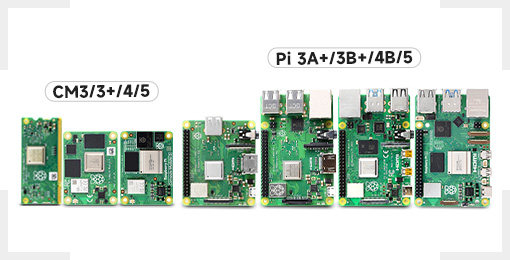

    • Supported boards: Raspberry Pi (including Raspberry Pi 3B+, 4, 5)
    • Supported OS: Raspberry Pi OS
  • Mechanical Parameters
    • Weight: approx. 0.096 kg

Kit includes

  • 1 × 3.5-inch DSI LCD display (H)
  • 1 × 15-pin FPC ribbon cable, 1.0 mm pitch, 50 mm length (opposite contacts)
  • 1 × DSI cable, 12 cm length
  • 1 × 15-pin FPC ribbon cable, 1.0 mm pitch, 160 mm length (opposite contacts)
  • 1 × mounting spacer set
1202593

Data sheet

Screen type
IPS
Diagonal (inch)
3,5
Resolution
800 x 480 px
Interface
DSI
Touch
Yes
