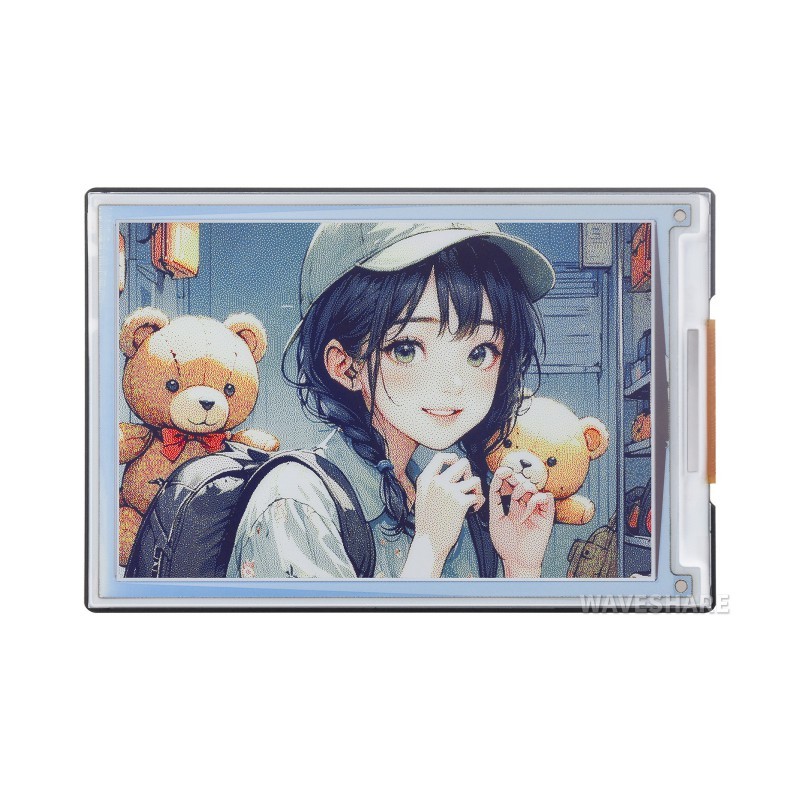

e-Paper E-Ink Spectra 6 (E6) 4" 600x400 module with HAT for Raspberry Pi - Waveshare 27367
ID: 1195682
zł261.49
Tax included
zł212.59 tax excl.
The 4" E Ink Spectra 6 e-paper display with HAT+ board is an advanced solution for color information presentation, characterized by low power consumption, high contrast, and compatibility with multiple platforms. With full SPI support and Raspberry Pi HAT+ standard, it is ideal for projects requiring clear, aesthetic, and energy-efficient content display.
Description
4-inch color e-paper display based on E Ink Spectra 6 technology, equipped with an SPI interface and a controller board compliant with the Raspberry Pi HAT+ standard. With high resolution, excellent readability, and ultra-low power consumption, it is suitable for labeling systems, electronic tags, information terminals, and IoT devices.
Specifications
- Diagonal: 4 inches
- Resolution: 600 × 400 pixels
- Active area: 84.6 × 56.40 mm
- Module dimensions: 101.00 × 68.00 mm
- Pixel pitch: 0.141 × 0.141 mm
- Colors: E6 Full Color (using red, yellow, blue, and black particles)
- Grayscale: 2 levels
- Viewing angle: >170°
- Interface: SPI (3-wire, 4-wire)
- Supply voltage: 3.3 V (display), 3.3 V / 5 V (with module)
- Full refresh time: 19 s
- Power consumption during refresh: <70 mW
- Standby current: <0.01 μA (display), <0.01 mW (module)
- Compatibility: Raspberry Pi, Jetson Nano, RDK X3, Arduino, STM32
- Integrated 3.3 V / 5 V level shifter
- HAT+ standard: easy integration with Raspberry Pi and compatibility with other overlays
Included in the set
- 4inch e-Paper HAT+ (E) ×1
- GH1.25 9PIN cable (20 cm) ×1
- Mounting screw set ×1
1195682
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 4
- Resolution
- 600 x 400 px
- Interface
- SPI
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
