Charging Station for Electric Cars Wallbox Akyga Type2 3-phases 16A 11kW 5m
ID: 1190875
zł1,649.97
Tax included
zł1,341.44 tax excl.

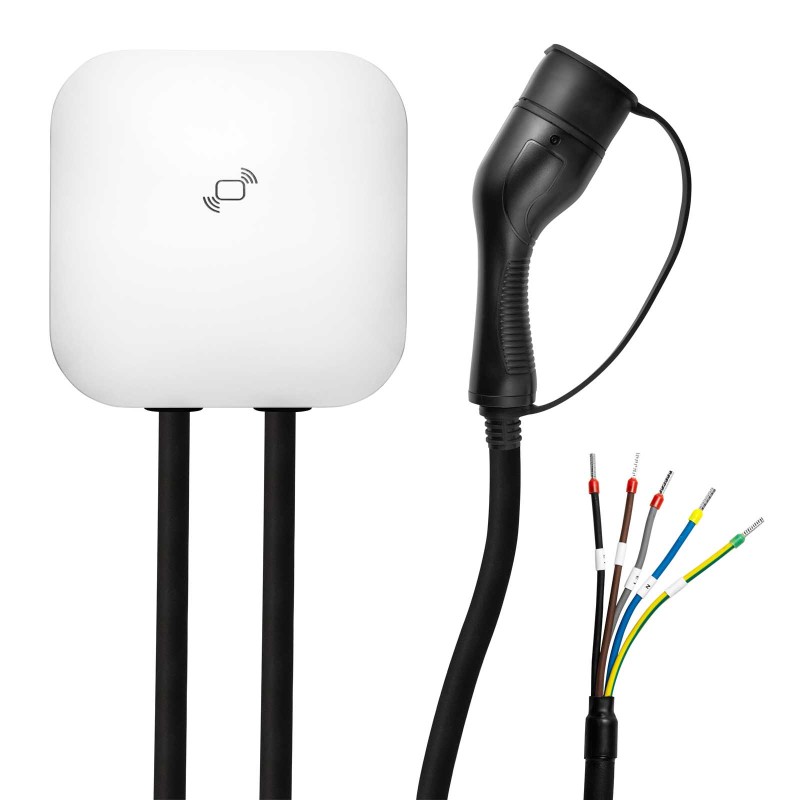

Akyga® AK-EC-21 is a three-phase wallbox with a power output of up to 11 kW, equipped with a Type 2 connector and a 5-meter cable, designed for wall mounting. The device offers broad compatibility with electric vehicles and an advanced safety system. The set includes RFID cards for access authorization, making the AK-EC-21 a functional and safe solution for home EV charging. An ideal choice for private use requiring fast and secure charging from a three-phase installation.
Description
The Akyga AK-EC-21 charging station enables efficient charging of electric vehicles using three-phase power supply at 380–440 V. The integrated Type 2 connector (IEC 62196-2) ensures compatibility with most electric cars available on the European market. A maximum current of 16 A allows for charging power up to 11 kW, resulting in fast and safe battery recharging.
The wallbox is equipped with a 5-meter cable and an additional 0.75-meter connection section, which facilitates access to the charging port without the need for precise vehicle positioning. Safe operation is ensured by two included RFID cards that allow access control to the station. The IP54-rated enclosure and UL94V-0 fire resistance allow for installation both in a garage and in covered outdoor areas.
The device is wall-mounted using the included bracket, which helps save space and keep the area organized. In addition, the cables are terminated with ready-to-install ends, simplifying the connection process to the power grid.
Specifications
- Input voltage: 380–440 V / 50/60 Hz
- Number of phases: 3
- Maximum current: 16 A
- Maximum power: 11 kW
- Charging connector: Female Type 2 (IEC 62196-2)
- Ingress protection: IP54
- Flame resistance: UL94V-0
- Cable length: 5 m + 0.75 m
- Cable material: Copper
- Enclosure material: ABS
- Protections: OVP, OCP, OPP, OTP, SCP
- Color: White
- MTBF: 10,000 h
- Operating temperature: -35 / +50 °C
- Product dimensions: 90 x 180 x 180 mm
- Net weight: 3180 g
- Compliance: CE, FCC, RoHS, REACH
1190875
Manufacturer AKYGA EUROPE SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Wrocławska 1C 52-200 Suchy Dwór Poland contact@akyga.com
Responsible person AKYGA EUROPE SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Wrocławska 1C 52-200 Suchy Dwór Poland contact@akyga.com
