zł672.69
Tax included

zł546.90 tax excl.

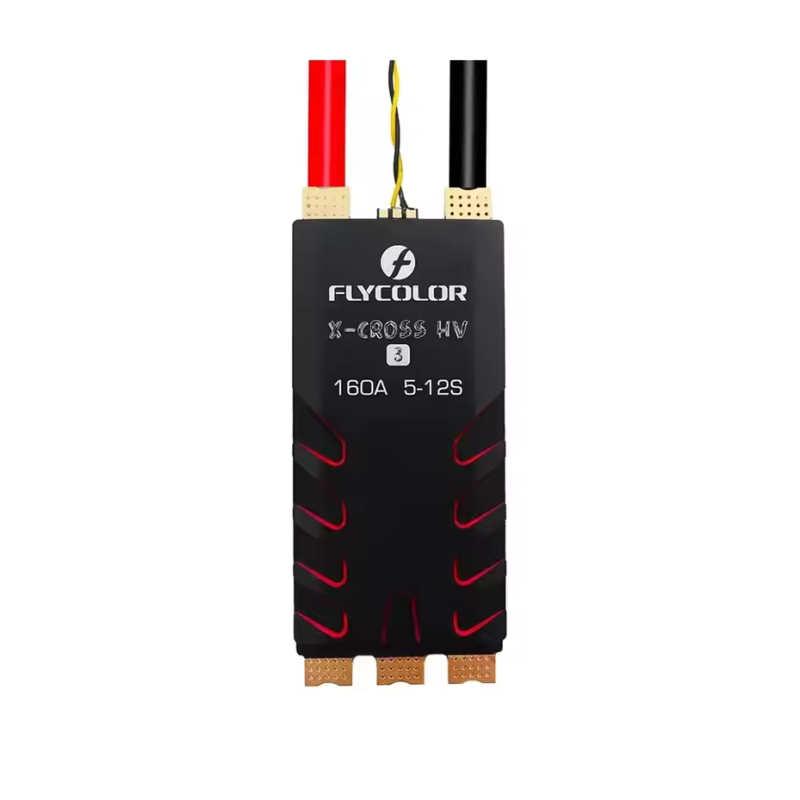

Flycolor X-Cross HV3 160A ESC designed to control brushless motors in multirotor RC models and large FPV platforms. It supports 5-12S LiPo batteries, up to 160 A continuous current and 180 A burst current, while BLHeli-32 firmware provides support for digital and analog control protocols. Flycolor X-Cross HV3 160A

24h
Available
Available quantity: 1

Description

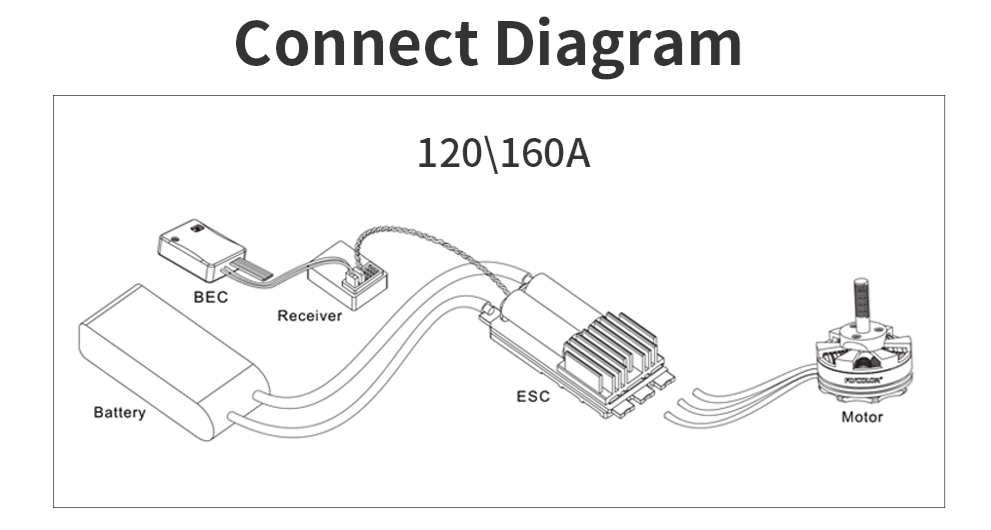

The ESC uses a 32-bit ARM Cortex MCU operating at up to 64 MHz and low-resistance MOSFETs designed to handle high currents. Support for 5-12S LiPo batteries and a continuous current rating of 160 A allows the controller to be used in large FPV drones, X-Class platforms, and other models equipped with high-power brushless motors. The 160 A version does not include a BEC, so the receiver and other electronics require a separate power supply.


The BLHeli-32 Flycolor_X_Cross_HV3_G071 firmware supports standard 1-2 ms PWM, Oneshot125, Oneshot42, Multishot, as well as DShot and ProShot protocols. The ESC automatically detects the input throttle signal after power-up. Built-in telemetry provides data including temperature, voltage, current, and motor speed, while two aluminum heatsinks help limit temperature rise under high loads.

Features

  • Electrical parameters
  • Model: X-Cross HV3-160A
  • Type: brushless motor ESC
  • Continuous current: 160 A
  • Burst current: 180 A
  • Supported batteries: 5-12S LiPo
  • BEC: no
  • Built-in current measurement: yes
  • Control and firmware
  • Firmware: BLHeli-32
  • Firmware version: Flycolor_X_Cross_HV3_G071
  • MCU: 32-bit ARM Cortex
  • MCU frequency: up to 64 MHz
  • Standard PWM: 1-2 ms
  • Oneshot125: yes
  • Oneshot42: yes
  • Multishot: yes
  • DShot: yes
  • ProShot: yes
  • Automatic input signal detection: yes
  • Telemetry: yes
  • Telemetry data: temperature, voltage, current, motor speed
  • Construction
  • Cooling: 2 aluminum heatsinks
  • Dimensions: 82 x 34 x 21.1 mm
  • Weight: approx. 132 g
  • Reference weight includes: 300 mm power wires
  • Typical applications: multirotor FPV models and X-Class platforms
1187461

Data sheet

Output current
160 A
Number of channels
1
Supply voltage min
18,5 V
Supply voltages max
44,4 V
