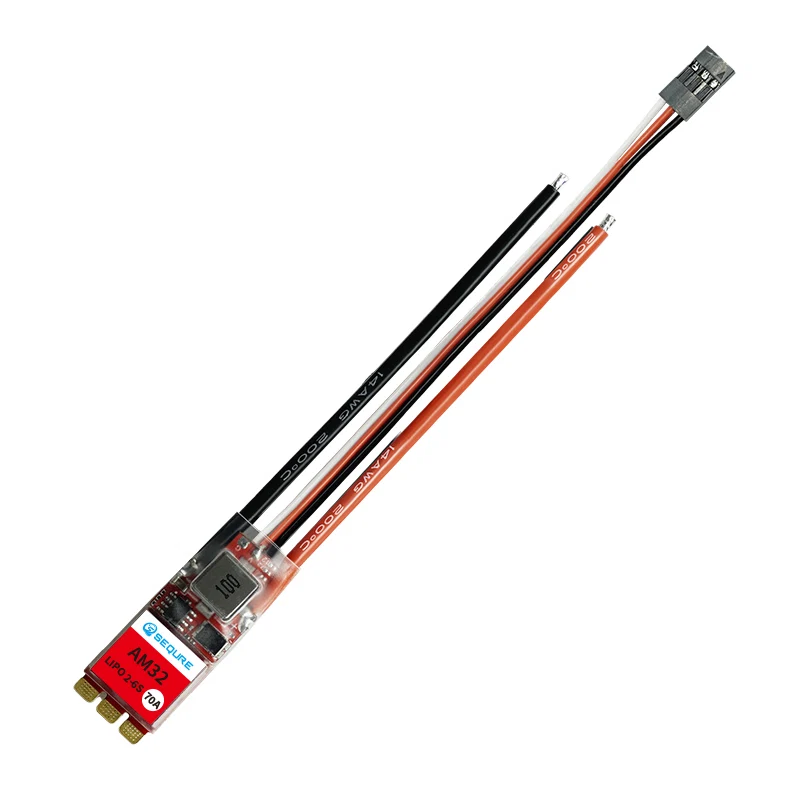

Brushless electronic speed controller designed for FPV drones, multirotors, fixed-wing aircraft, RC boats, and RC vehicles. It supports 2-6S LiPo batteries, 70 A continuous current, DShot, PWM, OneShot, and MultiShot protocols, and motor PWM frequencies up to 128 kHz. The version includes an adjustable BEC with selectable 5 V, 6 V, 7.2 V, 8.2 V, and 12 V outputs. SEQURE SQESC 2670 AM32 + BEC

24h
Available
Available quantity: 1

Description

Brushless electronic speed controller for RC propulsion systems uses a 32-bit STM32G071 microcontroller operating at up to 64 MHz together with AM32 firmware. It supports an input voltage from 7 V to 25.2 V, corresponding to 2-6S LiPo batteries, and provides 70 A continuous current and up to 110 A maximum current with adequate cooling. Motor PWM frequency can reach 128 kHz. An 8-layer PCB with 3 oz copper, high-power MOSFETs, and a metal heat sink support heat dissipation during high-current operation. The ESC supports unidirectional, bidirectional, and braking motor modes together with DShot, PWM, OneShot, and MultiShot protocols. Protection functions include undervoltage, overtemperature, locked rotor, and overcurrent protection.



The adjustable BEC can power receivers, servos, and other onboard electronics with selectable outputs of 5 V / 4 A, 6 V / 4 A, 7.2 V / 4 A, 8.2 V / 4 A, or 12 V / 3 A. Configuration options include motor timing, throttle calibration, current sensing, motor direction, telemetry, and other programmable parameters. The controller also includes a configurable RGB LED. Applications include FPV drones, multirotors, fixed-wing aircraft, RC boats, climbing vehicles, and RC cars.

Features

  • Manufacturer: SEQURE
  • Model: SQESC 2670
  • Type: brushless electronic speed controller
  • Variant: AM32 + BEC
  • Microcontroller: STM32G071
  • Microcontroller frequency: up to 64 MHz
  • Firmware: AM32
  • AM32 firmware target: SEQURE_G071
  • Input voltage: 7 V to 25.2 V
  • Supported batteries: 2-6S LiPo
  • Continuous current: 70 A with adequate cooling
  • Maximum current: 110 A with adequate cooling
  • Maximum motor PWM frequency: 128 kHz
  • Signal protocols: DShot, PWM, OneShot, MultiShot
  • Motor modes: unidirectional, bidirectional, braking
  • Programmable parameter adjustment
  • Throttle calibration
  • Motor timing adjustment
  • Current sensing
  • Telemetry support
  • Motor direction configuration
  • Status lighting: configurable RGB LED
  • PCB construction: 8-layer, 3 oz copper
  • Cooling: metal heat sink
  • Undervoltage protection
  • Overtemperature protection
  • Locked rotor protection
  • Overcurrent protection
  • BEC: adjustable
  • BEC outputs: 5 V / 4 A, 6 V / 4 A, 7.2 V / 4 A, 8.2 V / 4 A, 12 V / 3 A
  • Configuration tool: ESC-LINK
  • Dimensions with BEC: 190 × 18 × 11 mm
  • Weight: 22 g
1207273

Data sheet

ESC Firmware
AM32
Output current
70 A
Number of channels
1
Supply voltage min
2S
Supply voltages max
6S
Mounting pattern
Other
