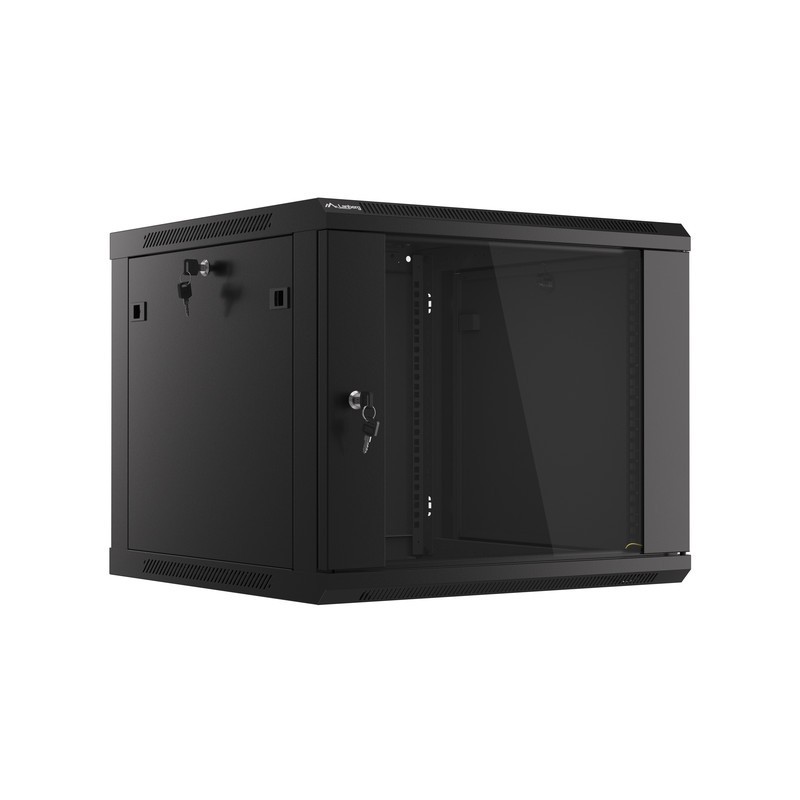

Lanberg WF01-6609-10B 19" 9U 600x600 Wall-Mounted Rack Cabinet V2

Description

Lanberg WF01 provides 9U of 19-inch rack space with a mounting depth of 529.5 mm. The cabinet is made from cold-rolled steel and supports a maximum static load of 60 kg. The single-leaf front door uses 5 mm glass, while four vertical mounting rails support installation of rack-compatible equipment. The enclosure measures 600 × 600 × 512.35 mm and has an IP20 protection rating with a black RAL 9004 finish.

The cabinet is supplied in Flat Pack form for self-assembly, reducing the space required during transport and allowing installation directly at the target location. The top panel provides two fan mounting positions to support airflow, while grounding is provided for the front door and bottom panel. The construction complies with ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, and IEC297-2:1982 standards.

Features

• Manufacturer: Lanberg
• WF01-6609-10B
• Type: wall-mounted rack cabinet
• Rack standard: 19"
• Rack height: 9U
• Construction: Flat Pack for self-assembly
• Width: 600 mm
• Depth: 600 mm
• Height: 512.35 mm
• Mounting depth: 529.5 mm
• Maximum static load: 60 kg
• Front door: glazed
• Door type: single-leaf
• Front door thickness: 5 mm
• Vertical mounting rails: 4
• Fan mounting positions: 2
• Thermostat: no
• LCD panel: no
• Protection rating: IP20
• Colour: black
• RAL colour: RAL 9004
• Top and bottom panel thickness: 1.2 mm
• Side panel thickness: 1 mm
• Mounting rail thickness: 1.5 mm
• Frame thickness: 1.2 mm
• Weight: 21 kg
• Grounding: front door, bottom panel
• Standards: ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982

Kit Includes

• Lanberg WF01-6609-10B
• User manual
• Grounding cable
• M6 screws
• Mounting bracket
• Front lock
• Side locks
• Assembly hardware set
