ZOBD SET 24V – OBD2 24V set with enclosure and cap, ABS, black Kradex
ID: 1200866
zł17.04
Tax included
zł13.85 tax excl.
ZOBD SET 24V is a Kradex set containing an enclosure, a full cap, and a 24 V OBD2 plug, made of black ABS material, designed for building diagnostic interfaces in vehicles and industrial systems.
Description

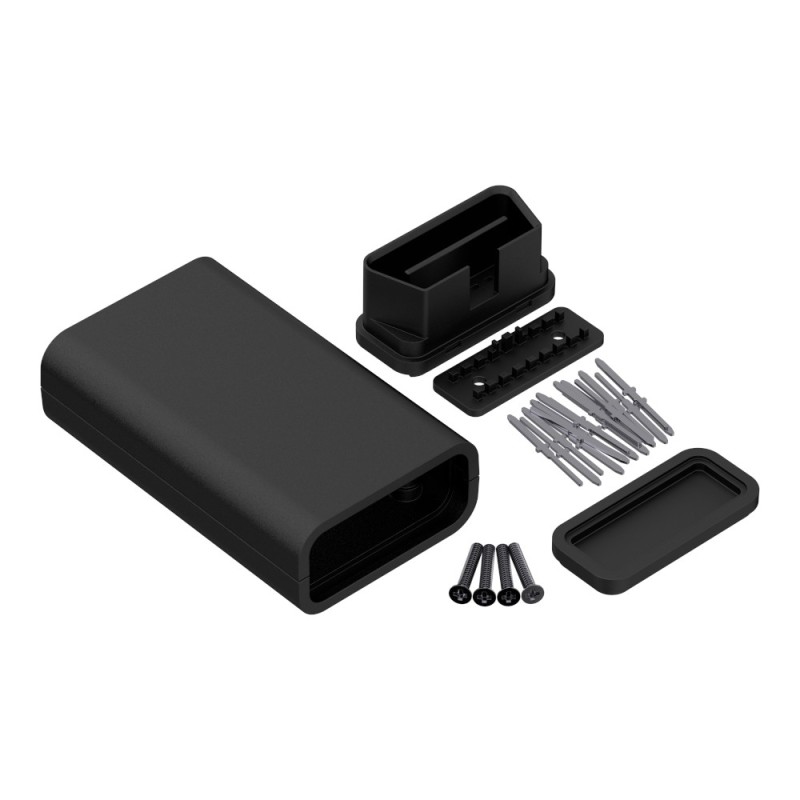

The ZOBD SET 24V kit is intended for service and diagnostic applications in vehicle systems with a 24 V installation. It includes a ZOBD ABS enclosure, a full ZOBD CAP cover, and a 16-pin OBD2 ZOBD Cap Plug. All components are made of black ABS plastic. The solution allows for quick assembly of a functional OBD2 interface in electronic devices and industrial systems.
Features
- Type: solid
- Variant: 24V
- Material: ABS
- Color: black
- Length: 80.0 mm
- Width: 47.9 mm
- Height: 23.5 mm
Included
- Screw 2.5 × 16 mm – 4 pcs.
1200866
Data sheet
- Colour
- Black
- Materiał
- ABS
- Hermetyczna
- Nie
- Brass bushings
- Nie
- Tightness class
- brak
- Strength class
- none
- Length
- 80 mm
- Width
- 47,9 mm
- Height
- 23,5 mm
- Housing type
- OBD
- Flammability class
- none
- ZOBD_SET.pdf (308,25 kB)
- ZOBD_SET.step (3,31 MB)
- ZOBD_SET.dwg (4,07 MB)
- ZOBD_SET_2000.dwg (6,44 MB)
- ZOBD_SET_Assembly.svg (344,84 kB)
- ZOBD_SET_Base.svg (463,82 kB)
- ZOBD_SET_Cover.svg (423,77 kB)
- ZOBD_SET_Cap.svg (345,25 kB)
- ZOBD_SET_Plug.svg (499,9 kB)
- ZOBD_SET_Plug_Pin.svg (328,35 kB)
- ZOBD_SET_Plug_Cap.svg (356,5 kB)
- ZOBD_SET_Complete_documentation.zip (6,14 MB)
- ZOBD_SET_img.zip (866,55 kB)
Manufacturer Kradex Sp. z o.o. ul. Minerska 4 04-506 Warszawa Poland kradex@kradex.com.pl
Responsible person Kradex Sp. z o.o. ul. Minerska 4 04-506 Warszawa Poland kradex@kradex.com.pl
