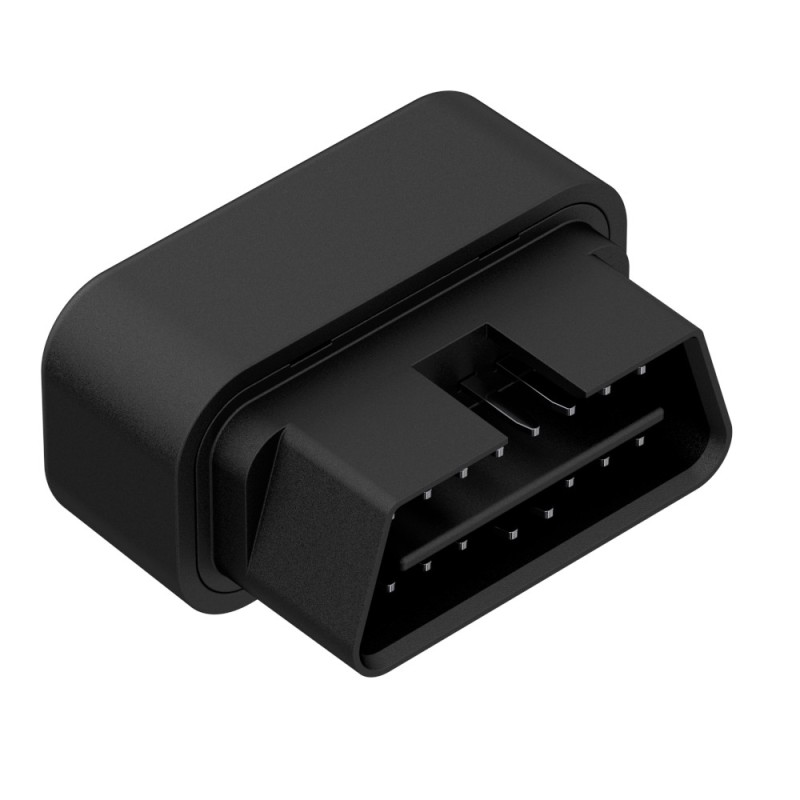

ZOBD MINI SET 24V – OBD2 24V set with enclosure, ABS, black Kradex
ID: 1200868
zł12.47
Tax included
zł10.14 tax excl.
ZOBD MINI SET 24V is a Kradex set containing a 16-pin OBD2 plug and a ZOBD MINI enclosure in the 24 V version, made of ABS material, designed for use in vehicle system diagnostics and service applications.
Description
The ZOBD MINI SET 24V kit is intended for diagnostic applications in vehicle systems with a 24 V installation. The set includes a compact ZOBD MINI enclosure and a 16-pin OBD2 plug (ZOBD Cap Plug). Both components are made of ABS material and designed for self-assembly. The black color scheme of the set allows for aesthetic integration with electronic devices and service installations.
Features
- Type: solid
- Variant: 24V
- Material: ABS
- Color: black
- Length: 48.3 mm
- Width: 24.7 mm
- Height: 18.0 mm
1200868
Data sheet
- Colour
- Black
- Materiał
- ABS
- Hermetyczna
- Nie
- Brass bushings
- Nie
- Tightness class
- brak
- Strength class
- none
- Length
- 48,3 mm
- Width
- 24,7 mm
- Height
- 18,0 mm
- Housing type
- OBD
- Flammability class
- none
- ZOBD_MINI_SET.pdf (233,91 kB)
- ZOBD_MINI_SET.step (2,49 MB)
- ZOBD_MINI_SET.dwg (14,17 kB)
- ZOBD_MINI_SET_2000.dwg (4,7 MB)
- ZOBD_MINI_SET_Assembly.svg (375,64 kB)
- ZOBD_MINI_SET_ZOBD_Mini.svg (363,08 kB)
- ZOBD_MINI_SET_Plug.svg (500,21 kB)
- ZOBD_MINI_SET_Plug_Pin.svg (327,69 kB)
- ZOBD_MINI_SET_Plug_Cap.svg (356,5 kB)
- ZOBD_MINI_SET_Complete_documentation.zip (3,36 MB)
- ZOBD_MINI_SET_img.zip (879,87 kB)
Manufacturer Kradex Sp. z o.o. ul. Minerska 4 04-506 Warszawa Poland kradex@kradex.com.pl
Responsible person Kradex Sp. z o.o. ul. Minerska 4 04-506 Warszawa Poland kradex@kradex.com.pl
Other products in the same category (16)

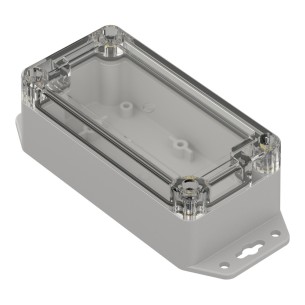

Enclosure ZP120.60.45SUJp-IP67 TM ABS-PC with molded gasket and transparent cover enables protection and constant visibility of the interior of electronic devices. It provides IP67 sealing, intended for operation in conditions exposed to dust, water, and other environmental factors.
