ID: 1210186
zł30.90
Tax included

zł25.12 tax excl.

Two-piece snap-on enclosure designed for the Adafruit RP2040 Prop-Maker Feather with I2S Audio Amplifier. Made from translucent milky-white SLA-printed plastic, it provides access to USB Type-C, the terminal block, STEMMA QT and the Reset and Bootloader buttons without requiring screws or glue. Adafruit 6504

4 weeks
Awaiting delivery
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

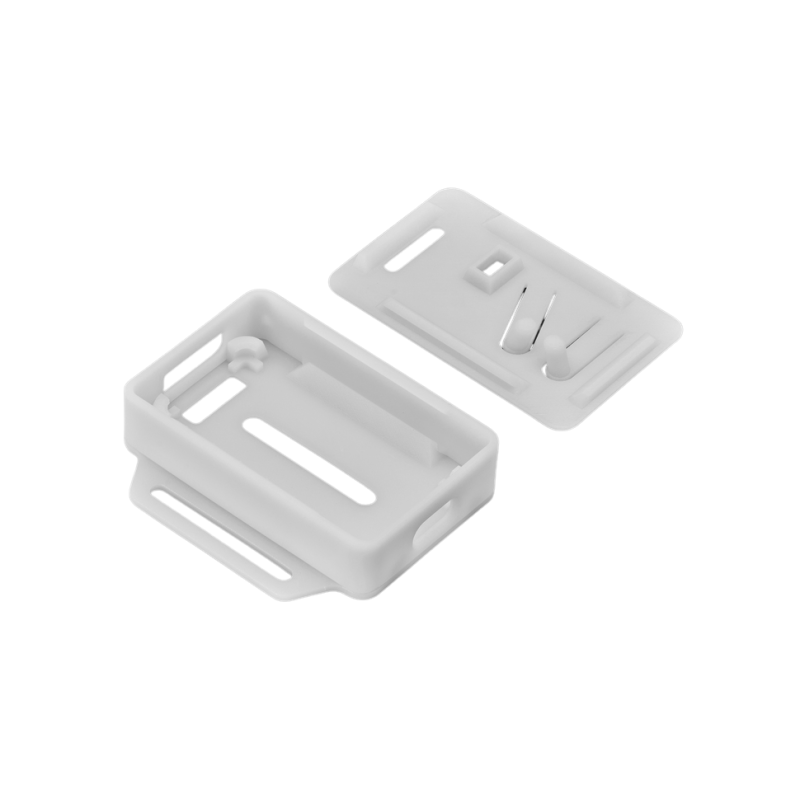

The Adafruit Snap-on Enclosure is designed for the Adafruit RP2040 Prop-Maker Feather with I2S Audio Amplifier. The case protects the board during use and transport while preserving access to the main connectors and controls.

The enclosure provides access to the USB Type-C connector on one side, the terminal block on the opposite side, as well as the STEMMA QT connector and the Reset and Bootloader buttons. Assembly requires no screws or glue — the board snaps into the lower section and the upper section is then fitted into place.

The parts are made from translucent milky-white plastic using an SLA printing process. The material allows the onboard NeoPixel and 5V Power Good LEDs to remain visible through the enclosure, while resin printing provides a smooth surface without pronounced FDM layer lines.

The overall assembled dimensions, including the mounting ears, are 58.2 × 56 × 15.3mm. The product includes the enclosure only — the board, cables and other accessories are not included.

Features

  • Type: snap-on enclosure for an electronic module
  • Compatibility: Adafruit RP2040 Prop-Maker Feather with I2S Audio Amplifier
  • Construction: two-piece
  • Assembly: snap-on
  • Mounting screws: not required
  • Glue: not required
  • Manufacturing process: SLA printing
  • Color: translucent milky white
  • Access to USB Type-C
  • Access to terminal block
  • Access to STEMMA QT
  • Access to Reset and Bootloader buttons
  • Overall dimensions: 58.2 × 56 × 15.3mm
  • Manufacturer: Adafruit
  • Product ID: 6504
1210186

Data sheet

Colour
White
Materiał
Plastik
Hermetyczna
Nie
Brass bushings
Nie
Tightness class
brak
Strength class
none
Length
58,2 mm
Width
56 mm
Height
15,3 mm
Housing type
Specialist
Flammability class
none
