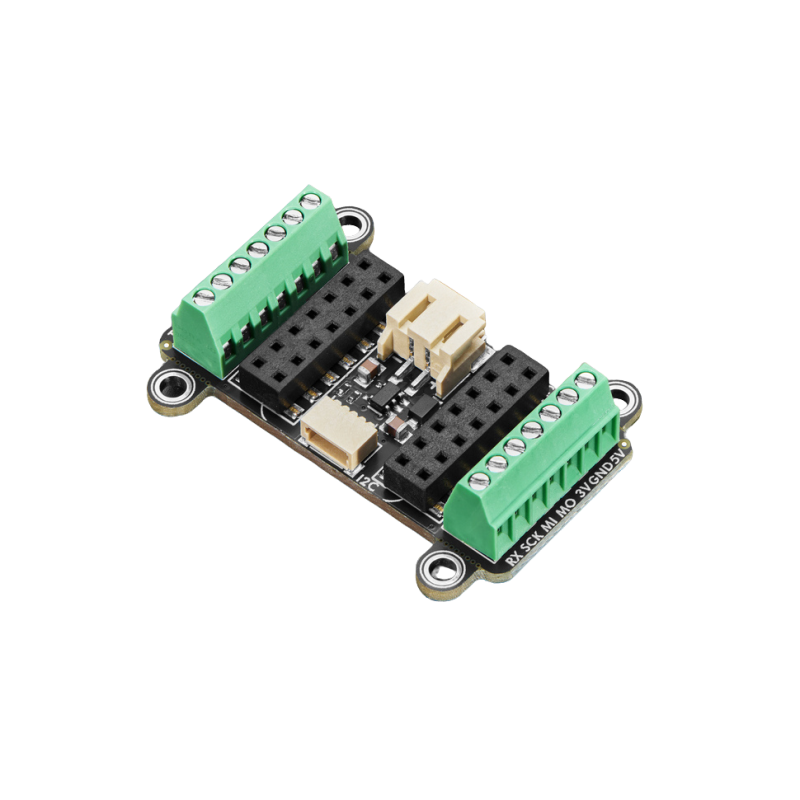

Main view
search
  • Main view
  • Top view
  • Front view - screw terminal side
  • Side view - JST-PH connector (larger, LiPo battery)
  • Side view - JST-SH connector (smaller, STEMMA QT / I2C)
  • Bottom view
ID: 1205169
5902186337220
zł54.26
Tax included

zł44.11 tax excl.

Expansion module with screw terminals for Adafruit QT Py and Seeed Studio Xiao boards, enabling convenient breakout of all pins, equipped with STEMMA QT/Qwiic connector, LiPo battery socket 3.7 - 4.2 V with charging and dual header rows, dimensions 43.2 x 30.3 x 10.7 mm. Adafruit 6495

24h
Available
Available quantity: 4
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

Expansion module designed for use with Adafruit QT Py and Seeed Studio Xiao boards, enabling convenient prototyping by breaking out all signals to screw terminals. The design allows direct wire connection without soldering, simplifying the development of test circuits and portable projects.


Each signal line is available on 2.54 mm pitch screw terminals, along with additional socket headers allowing parallel wire connections. The module also includes a STEMMA QT connector compatible with the Qwiic standard, enabling fast connection of sensors and modules using the I2C interface.

The board supports power from a 3.7 - 4.2 V LiPo battery via a JST-PH connector, with charging handled through the USB port of the main board. Automatic power source switching and adjustable charging current increase flexibility in portable applications. The module operates without additional software configuration and does not occupy GPIO lines, allowing use together with other expansion boards.

Features

  • Product for Adafruit QT Py and Seeed Studio Xiao
  • Screw terminals for all pins, 2.54 mm pitch
  • Dual header rows for parallel connections
  • STEMMA QT / Qwiic connector (JST SH) for I2C interface
  • JST-PH battery connector for 3.7 - 4.2 V LiPo batteries
  • Battery charging via main board USB port
  • Charging current: 250 mA (adjustable to 500 mA)
  • Option to disable battery charging
  • Automatic power source switching
  • Stackable with other expansion modules
  • No GPIO usage by the module
  • Dimensions: 43.2 x 30.3 x 10.7 mm
  • Weight: 8.5 g
