ID: 1196990
5902186302402
zł15.90
Tax included

zł12.93 tax excl.

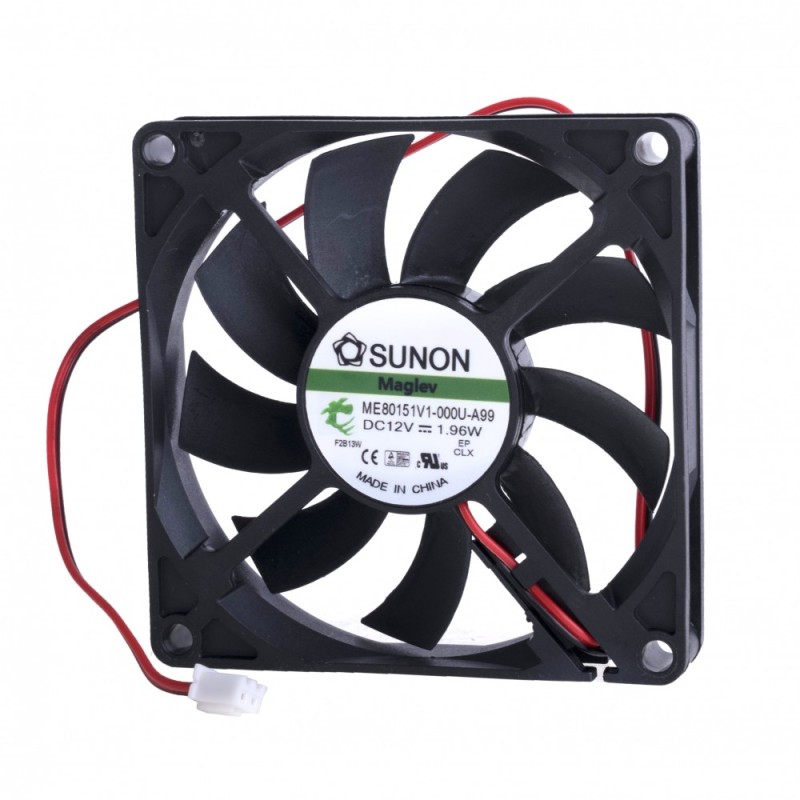

The SUNON 80x80x15mm axial fan powered by 12V DC provides an efficiency of 62.86m³/h at a low noise level of 34.7dBA and a rotational speed of 3000 rpm (±10%). Thanks to the Vapo bearing and brushless motor with an auto restart function, it offers quiet and reliable operation in demanding conditions. Made of durable thermoplastic and compliant with UL94V-0 and ECE R-118 standards, it is ideal for industrial and automotive applications. Sunon ME80151V1-000U-A99

24h
Available
Available quantity: 22

Description

The axial fan by SUNON is a high-quality component designed for efficient cooling of electronic and industrial devices. Powered by a 12V DC supply, it features compact dimensions of 80 x 80 x 15 mm, allowing installation in space-constrained environments. Thanks to the use of a Vapo bearing, the fan offers quiet and long-lasting operation. It delivers a maximum airflow of 62.86 m³/h and operates at a noise level of only 34.7 dBA, making it ideal for applications that require low-noise operation. Running at a speed of 3000 RPM (±10%), it ensures effective cooling even under demanding conditions. The built-in DC brushless motor features an auto-restart function. Both the housing and impeller are made from durable thermoplastic, providing resistance to mechanical damage and high temperatures. The fan meets UL94V-0 and ECE R-118 flammability standards, making it safe for automotive and industrial use. With a wide operating voltage range of 4.5 to 13.8V DC, it is a versatile solution for various cooling applications.

Features

  • Fan type: DC axial
  • Operating voltage: 4.5 to 13.8 V DC
  • Power consumption: 1.96 W
  • Rated current: 0.163 A (±15%)
  • Airflow: 62.86 m³/h
  • Noise level: 34.7 dBA
  • Bearing type: Vapo
  • Rotational speed: 3000 RPM (±10%)
  • Static pressure: 3.55 mm H₂O
  • Motor: DC brushless with auto-restart function
  • Material (housing and impeller): thermoplastic
  • Insulation: class A, minimum resistance 10 MΩ
  • Flammability rating: UL94V-0, ECE R-118
  • Leads: 2 wires (0.3 m length, 24AWG)
  • Operating temperature: -10°C to +70°C
  • Dimensions: 80 x 80 x 15 mm
1196990

Data sheet

Voltage
12 V
Power
1,96 W
Length
80 mm
Width
80 mm
Height
15 mm
Weight
67 g
Noise level
34,7 dBA
Air flow efficiency
62,86 m³/h
Rated current
163 mA
Fan type
Axial
