DC axial fan 12V 120x120x38mm
ID: 1187230
5902186327443
zł36.20
Tax included
zł29.43 tax excl.

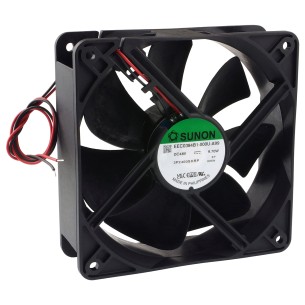

An axial DC fan with dimensions 120x120x38mm and an operating voltage of 6-13.8V provides effective cooling with a capacity of 234.6m3/h and a rotation speed of 3100 rpm. Made of thermoplastic, is durable and operates in the temperature range from -10°C to 70°C with a noise level of 48dBA. Sunon MEC0381V1-000U-A99
Description
The DC axial fan with an operating voltage in the range of 6-13.8V has been designed for applications requiring effective cooling. Its dimensions are 120x120x38mm, which makes it perfect for larger cases or systems. The power consumption of this device is 10W and the rated current is 0.833A. The fan efficiency reaches 234.6 m3/h, which ensures effective cooling in many applications. The rotational speed is 3100 rpm with a tolerance of ±10%. Despite its high efficiency, the fan generates a noise level of 48dBA. It uses a Vapo bearing, which is durable and reliable. Both the impeller and the fan housing are made of high-quality thermoplastic. The device has insulation class A and can operate in the temperature range from -10°C to 70°C. It offers stable operation in many conditions thanks to high insulation resistance of at least 10MΩ.
Features
- Fan type: DC
- Fan type: axial
- Operating voltage: 6 - 13.8V
- Fan size: 120x120x38mm
- Power consumption: 10W
- Rated current: 0.833A
- Fan efficiency: 234.6 m3/h
- Noise level: 48dBA
- Bearing type: Vapo
- Rotational speed: 3100 (±10%) rpm
- Current and power consumption tolerance: ±15%
- Insulation resistance min.: 10MΩ
- Rotor material: thermoplastic
- Housing material: thermoplastic
- Insulation class: A
- Operating temperature: -10 - 70°C
1187230
Data sheet
- Voltage
- 6 - 13,8 V
- Power
- 10 W
- Length
- 120 mm
- Width
- 120 mm
- Height
- 38 mm
- Weight
- Other
- Noise level
- 48 dBA
- Air flow efficiency
- 234,6 m³/h
- Rated current
- 833 mA
- Fan type
- Axial
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
