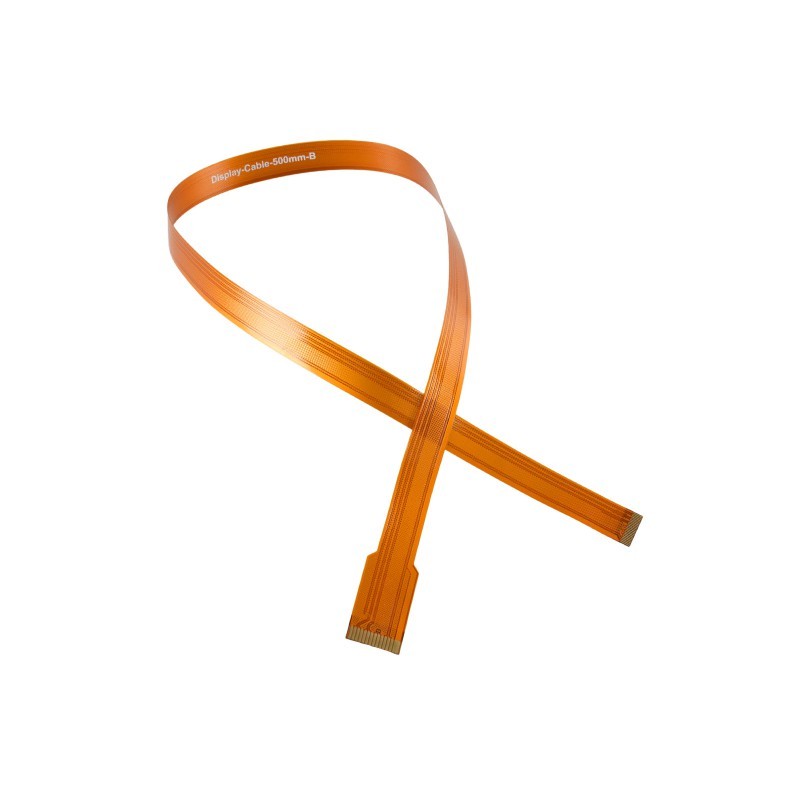

Display Cable for Raspberry Pi 5 - DSI FPC 22PIN-15PIN 500mm (B) - Waveshare 33308
ID: 1202976
zł17.68
Tax included
zł14.37 tax excl.
Flexible DSI FPC 22PIN to 15PIN cable with a length of 500 mm, designed for connecting displays to Raspberry Pi 5 while maintaining compatibility with the DSI interface. Waveshare Display-Cable-500mm-B
Description
DSI FPC Flexible Cable (B) serves as a flexible signal cable intended for connecting displays to the DSI connector on Raspberry Pi 5 boards. The cable is equipped with a 22-pin connector on one side and a 15-pin connector on the other, enabling compatibility with displays based on the earlier 15PIN standard.
The 500 mm length allows flexible placement of the display relative to the main board, which supports the design of enclosures, operator panels, and multimedia systems requiring extended cable routing. The FPC (Flexible Printed Circuit) construction provides a slim profile, a small bending radius, and stable DSI signal transmission.
The cable is suitable for user interface projects, visualization systems, automation applications, multimedia solutions, and educational projects based on Raspberry Pi 5.
Features

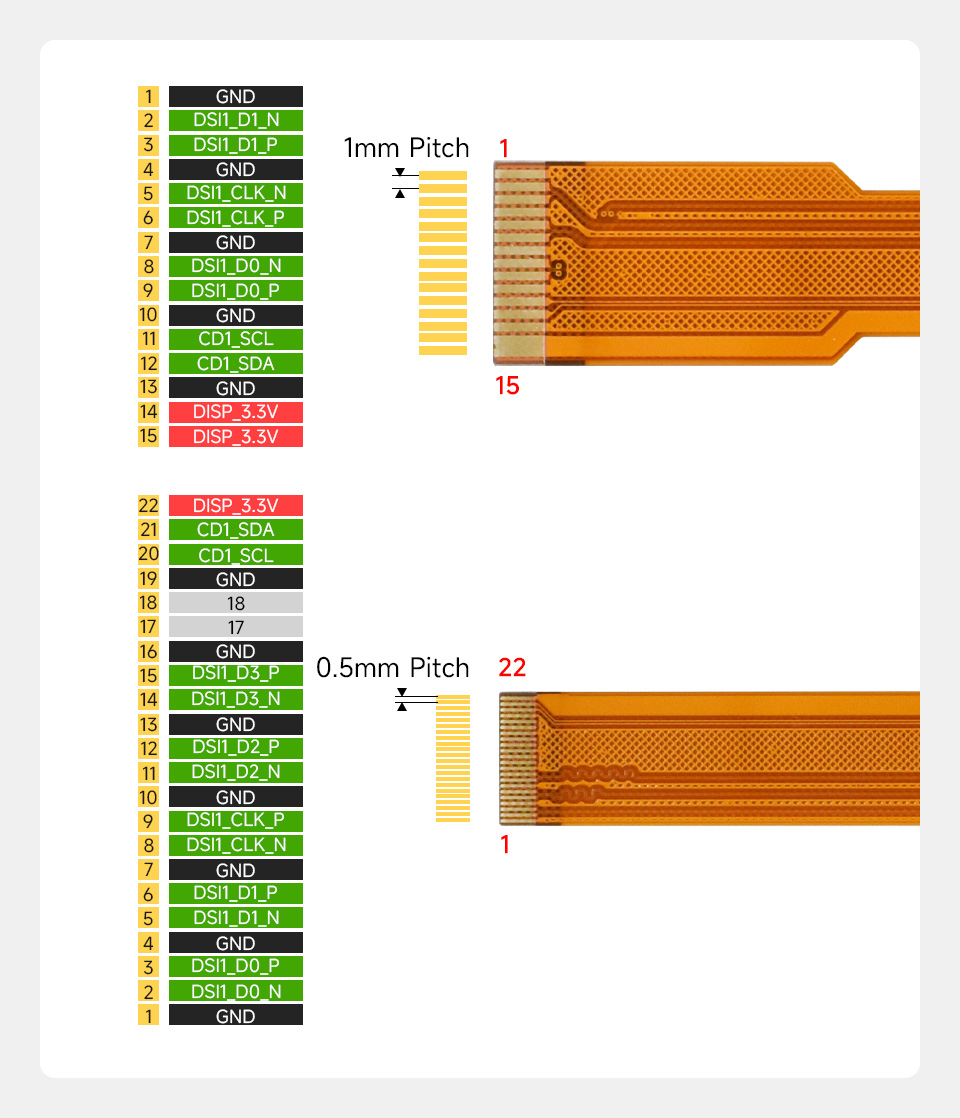

- Cable and connectors
- Cable type: FPC (flexible)
- Connector 1: DSI 22-pin
- Connector 2: DSI 15-pin
- Cable length: 500 mm
- Compatibility
- Intended for: Raspberry Pi 5
- Application: DSI displays
- Physical properties
- Product type: DSI signal cable
1202976
Data sheet
- Number of cores/wires
- 22/15
- Typ taśmy
- A-B
- Pitch
- 0,5 mm/1 mm
- Cable length (cm)
- 50 cm
