Molex connector 502598-2393 23pin 0,30mm
search
  • Molex connector 502598-2393 23pin 0,30mm
ID: 557432
5906623499106
zł9.77
Tax included

zł7.94 tax excl.

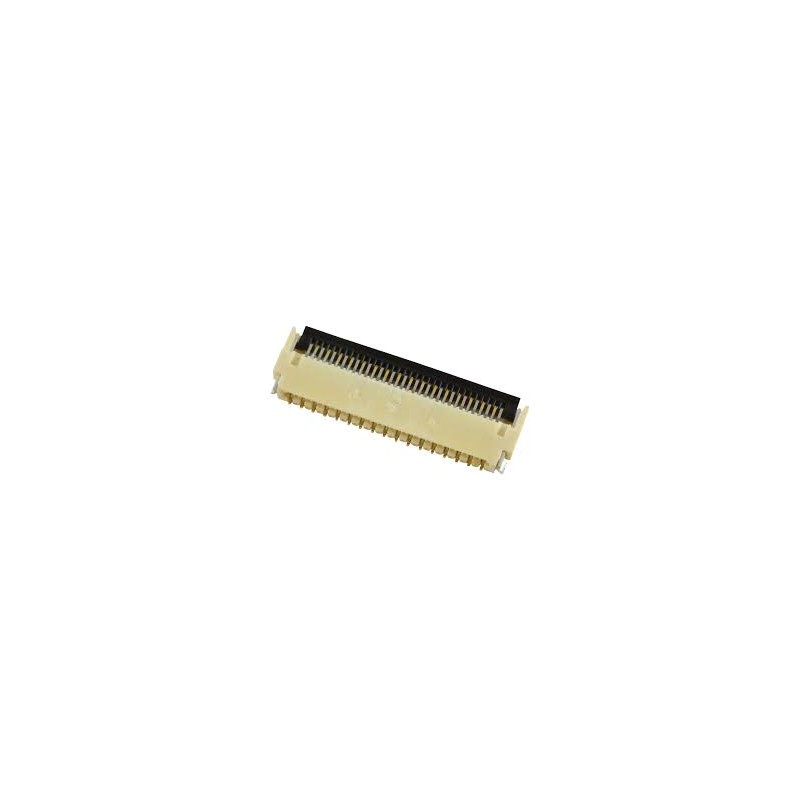

The Molex 502598-2393 connector is a right-angle FPC (Flexible Printed Circuit) connector with 23 positions and a 0.30 mm pitch, designed for surface-mount applications. It enables reliable connection between flexible printed circuits and a PCB. Its compact design makes it ideal for use in mobile devices and consumer electronics.

24h
Available
Available quantity: 20

Description

The Molex 502598-2393 connector is a right-angle FPC (Flexible Printed Circuit) connector with 23 positions and a 0.30 mm pitch, designed for surface mounting at a right angle. It features contact terminals accessible from both the top and bottom, providing greater design flexibility. With gold-plated contacts, it offers high reliability and corrosion resistance. Its compact design makes it an ideal solution for mobile devices and consumer electronics.

Specifications

  • Mounting type: Surface mount, right angle
  • Connector/contact type: Dual contact (top and bottom)
  • Number of positions: 23
  • Pitch: 0.30 mm (0.012")
  • Contact finish: Gold
  • Purpose: Connecting flexible printed circuits (FPC) to PCB
  • Application: Consumer electronics, mobile devices
557432

Data sheet

Pitch
0,3 mm
Number of pins
23
Contact type
Top and bottom
Spatial orientation
Horizontal
