Handheld ground station with 8-core CPU, 5.5" touch screen with Android, with camera and image transmission - Waveshare 31986

Description

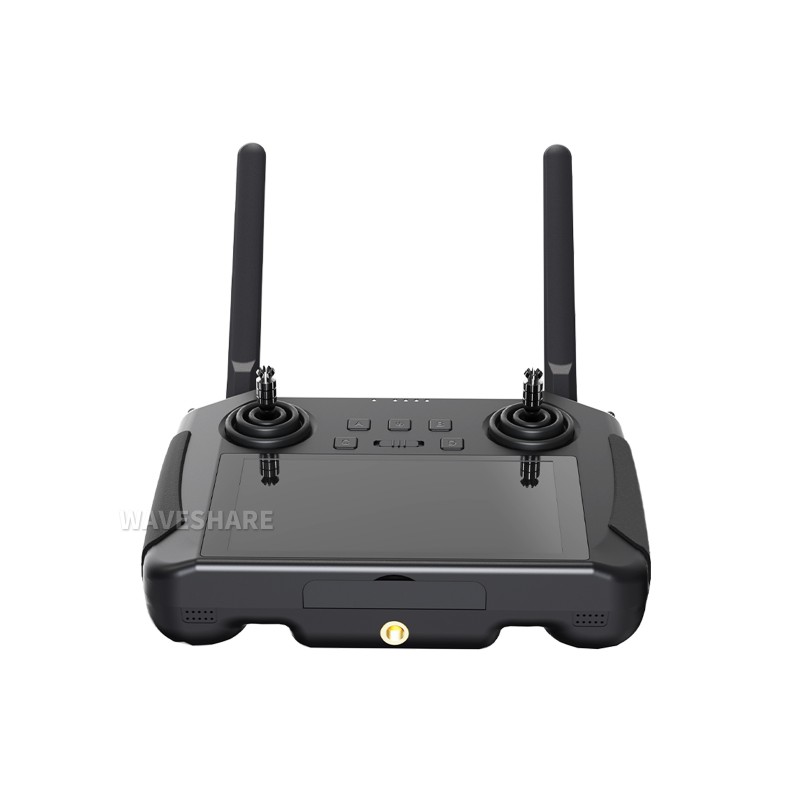

Portable industrial-class ground station intended for advanced drone, robotics and autonomous system control applications. Equipped with an 8-core Qualcomm processor, a 5.5-inch Full HD (1920×1080) touch screen with 1000-nit brightness, and an integrated Android 9.0 system with 2 GB RAM and 16 GB internal memory.

EyeLink-RC-S1 supports a maximum data and video transmission range of up to 15 km (in unobstructed conditions), integrating remote control, data transmission and video streaming functions in one device. Compatible with popular flight controllers (PIX, APM, JIYI, BOYING) and GCS software (QGroundControl, Mission Planner).

The station is equipped with an R1M camera (Ethernet, 1080p@30fps), directional and omnidirectional antennas, powered by a built-in 10200 mAh (7.4 V) battery, supports PD 20 W fast charging and provides up to 13 hours of operation. The housing meets the IP53 standard, and the dimensions of the station (with antennas) are 189.09 × 137.95 × 269.12 mm.

Properties

• Screen: 5.5", 1920×1080 px, 1000 nits brightness, touch
• CPU: Qualcomm 8-core, H.264/H.265 1080p@60fps decoding
• System: Android 9.0, 2 GB RAM, 16 GB ROM
• Maximum transmission range: 15 km
• Control channels: 13 physical, 16 logical
• Compatibility: QGroundControl, Mission Planner, JIYI, BOYING
• R1M camera: 2 MP, Ethernet, 1080p@30fps, microSD (up to 32 GB, FAT32)
• Interfaces: USB-C, USB-A, HDMI, SIM slot, TF slot, DATA ports (4PIN), 1/4” tripod thread
• Battery: 10200 mAh (7.4 V), operating time: up to 13 h
• Fast charging: PD 20 W (charging time ~5 h)
• Waterproof rating: IP53
• Station dimensions (with antennas): 189.09 × 137.95 × 269.12 mm
• Weight: 850 g

Included

• EyeLink-RC-S1 x1
• R1M camera x1
• Omnidirectional and directional antenna x1
• MK15 air module x1
• Cables: USB (update), Type-C PD, 8PIN, PWM/PIX datalink x1
• PD 20 W charger (US plug) x1
• Packaging x1
