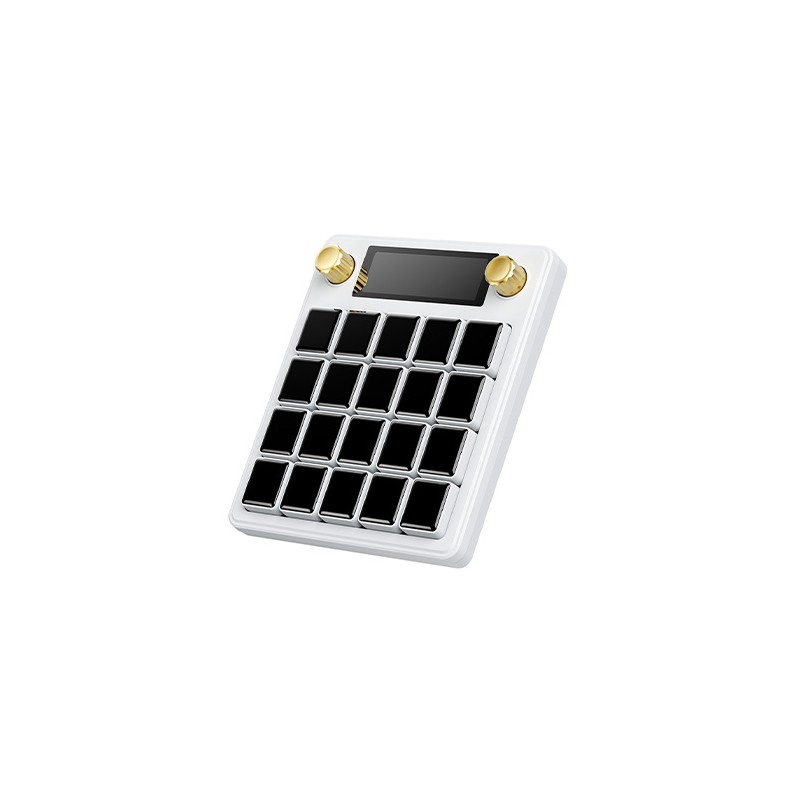

A multifunctional Stream Deck panel featuring 20 LCD keys, an additional 2.8" screen, dual rotary encoders, and a Linux + QMK dual-system architecture, designed for controlling live streams, applications, and automation. Waveshare MK20 W-EU 32843

6 weeks
On request
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

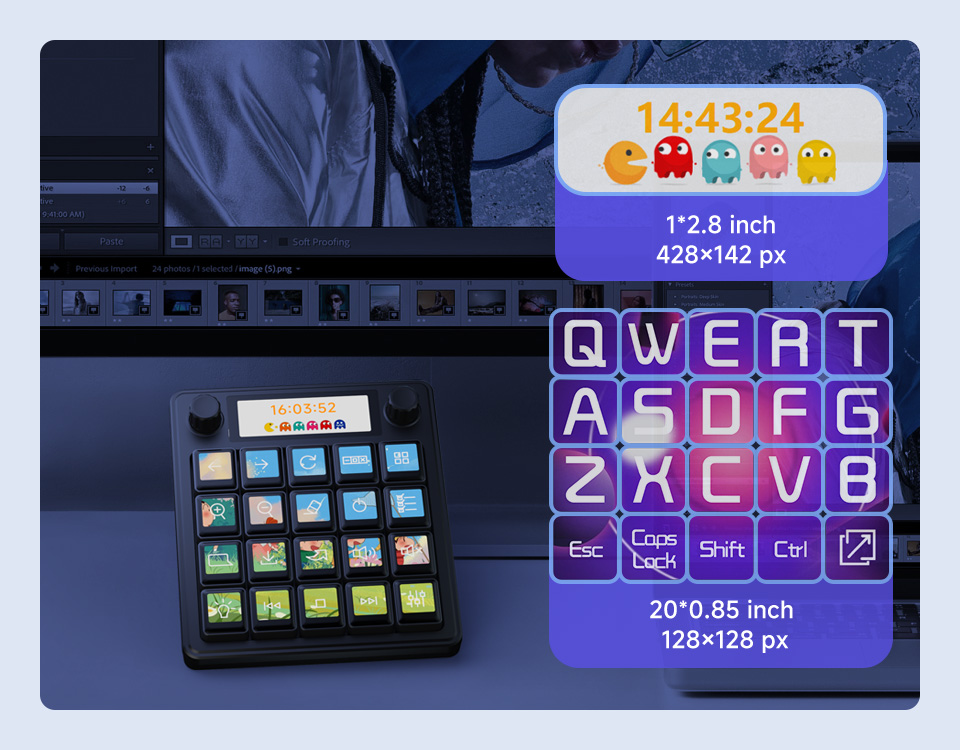

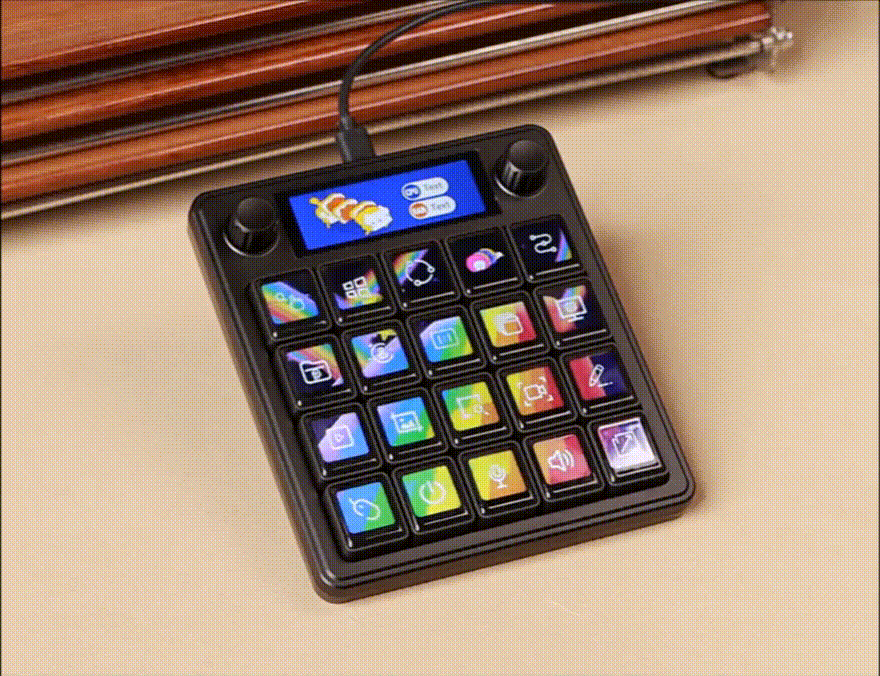

The Waveshare MK20 is designed as an advanced Stream Deck–type control panel for applications such as live streaming, video production, office workflows, graphic editing, and automation control. The device integrates 20 mechanical LCD keys with a 0.85" diagonal and an additional 2.8" secondary display, enabling simultaneous presentation of multiple information panels, shortcuts, and dynamic content.

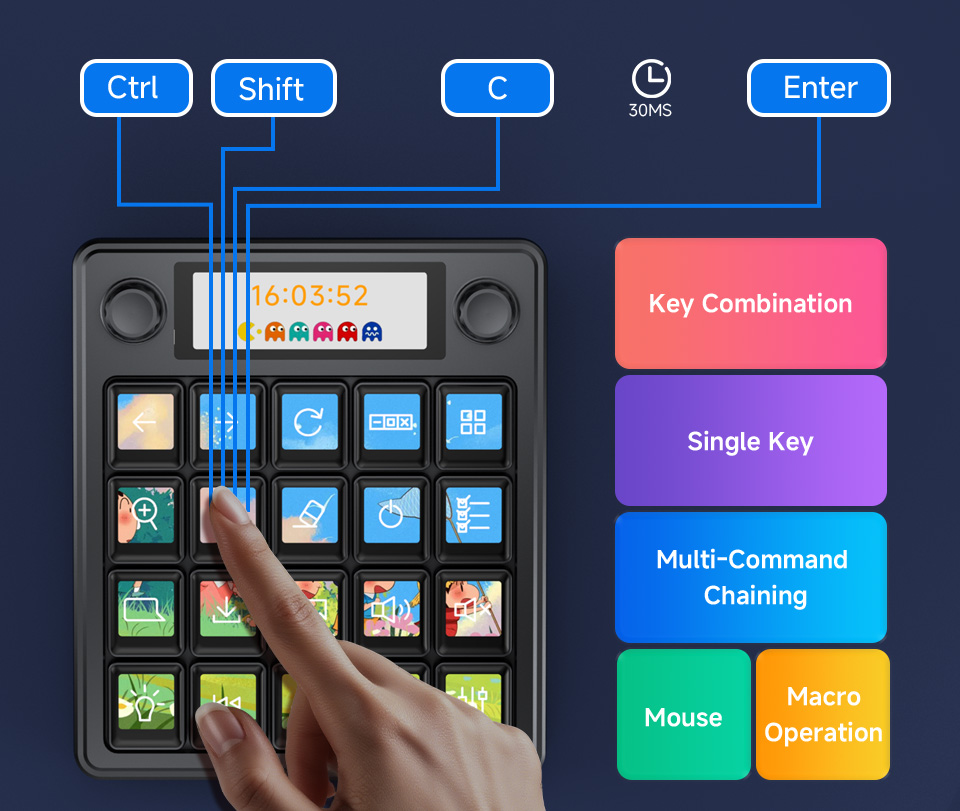

The dual-system architecture combining Linux and QMK software allows complex control logic while maintaining instant key response. The keys support single actions, key combinations, macros, mouse control, and multi-command chains, all implemented natively without the need to install additional software on the computer.

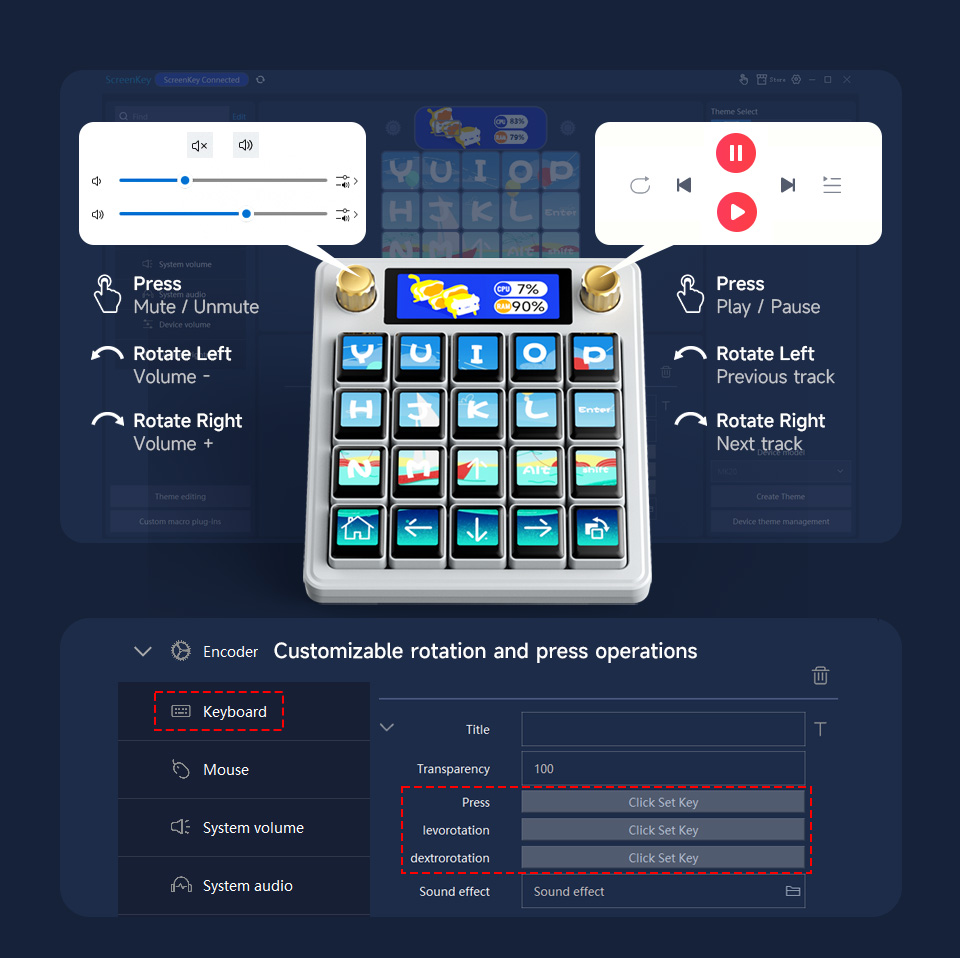

The panel is equipped with two high-precision rotary encoders with push-button functionality, enabling volume adjustment, multimedia control, fine parameter tuning, and timeline navigation. Speech recognition support and AI service integration enable voice control, while compatibility with Home Assistant allows smart home automation management.


A solid enclosure with an aluminum top panel and a 2.5D acrylic cover ensures durability. Two placement options—flat desktop placement or using the detachable 24° stand—allow ergonomic adjustment to the user’s workspace.


Features

  • Device type: Stream Deck / control panel
  • Number of LCD keys: 20
  • LCD key size: 0.85"
  • LCD key resolution: 128 × 128
  • Secondary display: 2.8" LCD
  • Secondary display resolution: 428 × 142
  • Key type: Mechanical
  • Actuation force: 50 ± 10 gf
  • Actuation travel: 1.2 ± 0.30 mm
  • Total key travel: 2.8 ± 0.25 mm
  • Key lifespan: up to 50 million actuations
  • Encoders: 2 high-precision rotary encoders with push function
  • System architecture: Linux + QMK
  • Main controller: T113-S3, dual-core Cortex-A7, 1.2 GHz
  • Secondary controller: GD32 MCU
  • Macro and shortcut support: Yes
  • Voice control: Yes
  • AI integration: Yes
  • Home Assistant support: Yes
  • OS compatibility: Windows, macOS
  • Power supply: 5 V
  • Case color: White
  • Weight: 845 g

Kit includes

  • Waveshare MK20 Stream Deck control panel
  • 24° mounting stand
  • USB Wi-Fi adapter
  • USB Type-C power and signal splitter
  • USB Type-A to Type-C cable (~1 m)
  • USB Type-C dual-plug cable (~1 m)
