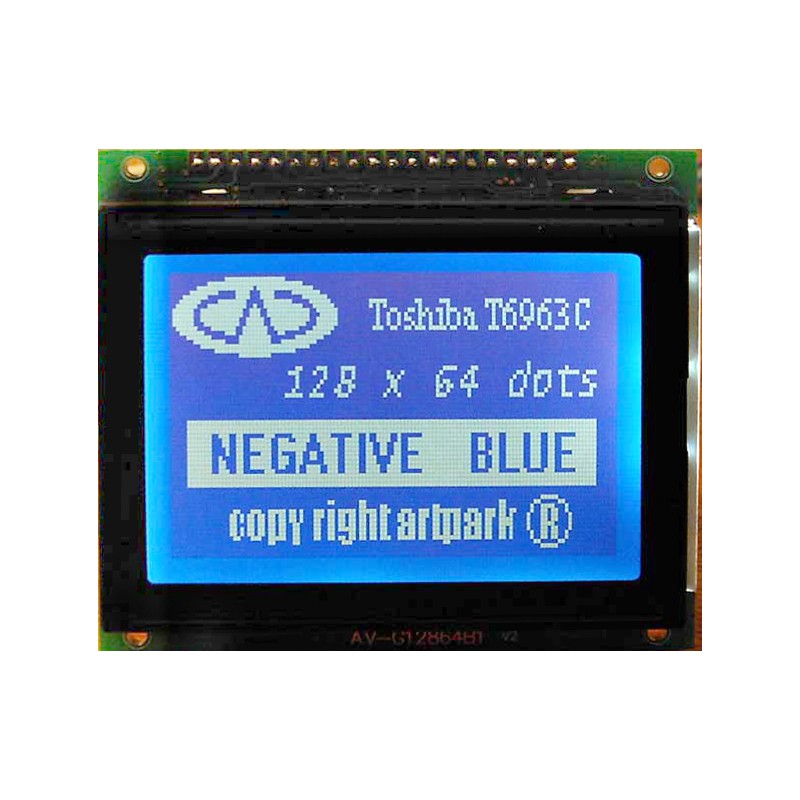

LCD-AG-128064B1-BIW W/B-E6 – STN 128×64 negative blue graphic display with TOSHIBA T6963C controller
ID: 1199512
5902186308251
zł122.51
Tax included
zł99.60 tax excl.
The STN 128×64 display in negative blue mode with a TOSHIBA T6963C controller enables easy control of graphics and text. Thanks to its extended temperature range and LED backlight, it is suitable for industrial, mobile, and devices operating in variable environmental conditions.
Description
STN graphic display with a resolution of 128×64 pixels in negative blue mode, intended for applications requiring readability in varied lighting conditions. The LED backlight design provides uniform illumination of the entire screen surface. The TOSHIBA T6963C controller allows convenient control of graphics and text, supporting both graphic and text modes. The module features an extended operating temperature range, enabling use in industrial devices as well as outdoor applications.
Properties
- Display type: STN, negative blue mod
- Resolution: 128×64 pixel
- Backlight: LE
- Controller: TOSHIBA T6963
- Operating temperature range: -20°C to +70°
- Logic supply voltage: 5
- LCD supply voltage: approx. 13
- Logic current consumption: approx. 12 m
- Backlight current consumption: approx. 200 mA
1199512
Data sheet
- Screen type
- LCD graphic
- Diagonal (inch)
- Nie dotyczy
- Resolution
- 128 x 64 px
- Interface
- Parallel
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
