ID: 1195212
5902186308534
zł283.66
Tax included

zł230.62 tax excl.

IoT Gateway with ESP32, offering Wi-Fi, BLE, Ethernet, RS232/485, DI/DO and AI 4-20mA ports, ideal for industrial IoT applications. Supports Arduino IDE, ESP-IDF and cloud platforms like AWS, enabling easy integration in monitoring, automation and smart farming systems. PUSR USR-EG118

24h
Available
Available quantity: 2
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

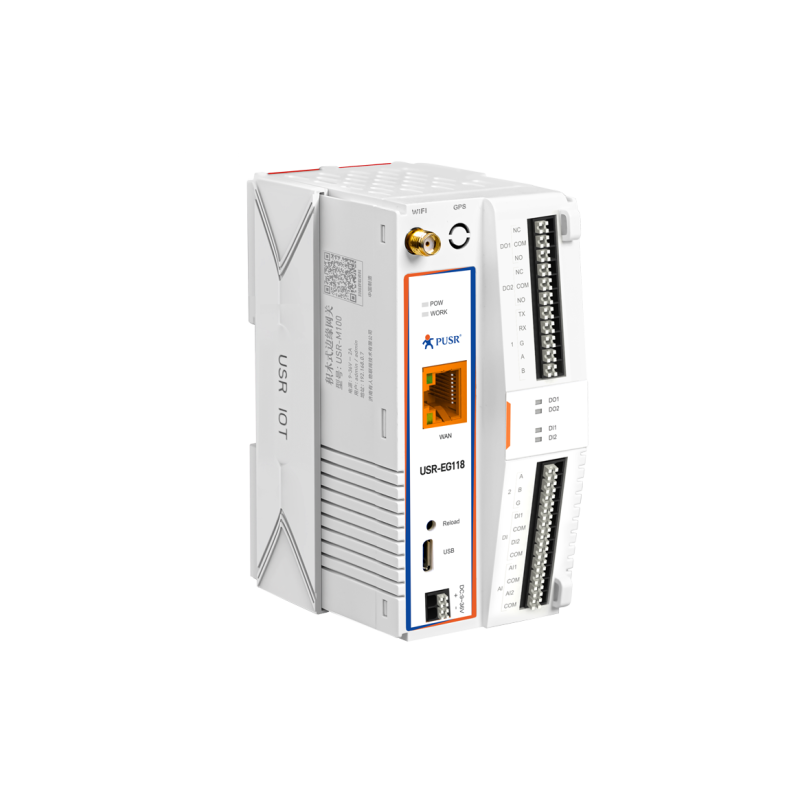

The USR-EG118 is an IoT gateway built around the ESP32 module, designed to facilitate the development of Arduino applications. Powered by a robust dual-core Xtensa® 32-bit LX6 MCU processor clocked at up to 240 MHz, 4 MB PSRAM, and up to 8 MB SPI flash memory, this gateway offers a versatile solution for industrial IoT applications. With its integrated Wi-Fi/BLE module and a comprehensive array of wired and wireless interfaces, the device is perfect for applications like monitoring, device control, and cloud integration.

The USR-EG118 provides a wide range of hardware interfaces, allowing for flexible and versatile use in various IoT applications. The RS232/485 port, with default parameters of 115200, N, 8, 1, enables seamless communication with serial devices. Additionally, the gateway includes one digital input (DI) and two digital outputs (DO), enabling real-time monitoring and control of devices. The integrated analog input (AI), supporting a range of 4-20mA, is ideal for reading values from analog sensors. For wired communication, an Ethernet RJ45 port ensures fast and stable network connections under all working conditions.


The product supports multiple network modes, including AP, STA, and AP+STA, providing flexibility to suit different user needs. With compatibility for AWS and C programming examples provided by PUSR, the gateway enables quick deployment of cloud-based monitoring functionalities. Support for Arduino IDE and ESP-IDF allows for easy and fast programming, making the USR-EG118 an ideal tool for both beginners and advanced users. Thanks to its rich set of hardware interfaces and networking flexibility, the gateway is suitable for diverse applications such as wastewater treatment, agricultural irrigation, solar systems, and smart farming.

Features

  • Chipset: ESP32-WROVER-E
  • Processor: Dual-core Xtensa® 32-bit LX6 MCU, up to 1.2 GHz
  • RAM: 8 MB
  • Flash memory: 4 MB

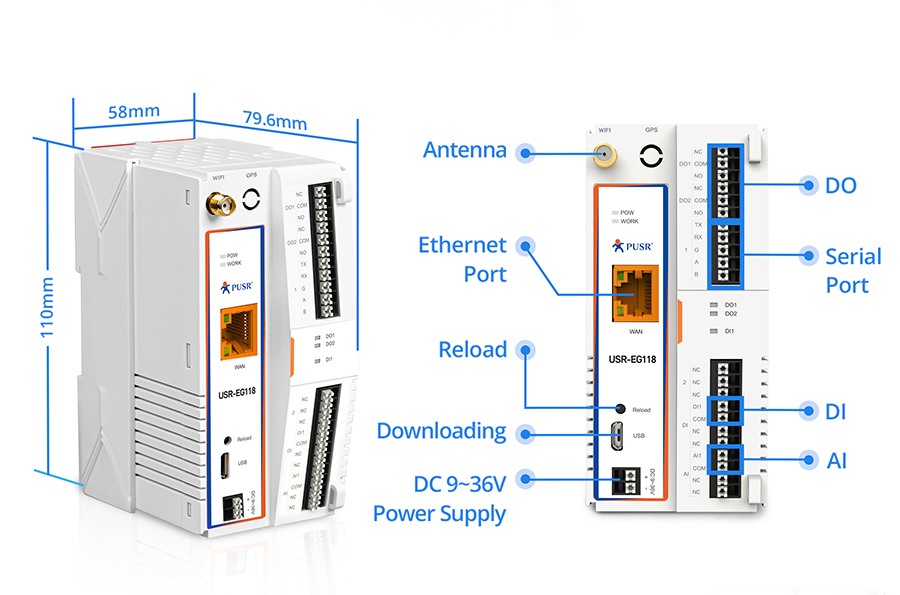

  • Hardware interfaces:
    • RS232/485: Default parameters 115200, N, 8, 1
    • DI: 1 digital input
    • DO: 2 digital outputs
    • AI: 1 analog input (4-20mA)
    • Ethernet: 1x RJ45
  • Wi-Fi: IEEE802.11b/g/n, up to 150 Mbps, frequency 2412–2484 MHz
  • BLE: Compatible with BLE 4.2
  • Power supply: 9 to 36V DC
  • Wall or DIN rail mounting
  • Dimensions: 58 x 79.6 x 110 mm
