zł560.25 tax excl.
The board is designed to work with the Sunny MTP006 pTOF camera module, compatible with the OAK-FFC-3P, OAK-FFC-4P and DepthAI RPi HAT boards. Equipped with a 224x172 sensor, it provides precise depth measurements in the range of 20 cm to 4 m with an accuracy of less than 2% and a viewing angle of 70.7° DFOV, and communication is via a MIPI 2-lane interface with a supplied 3.3V power supply. Luxonis OAK-FFC-pToF

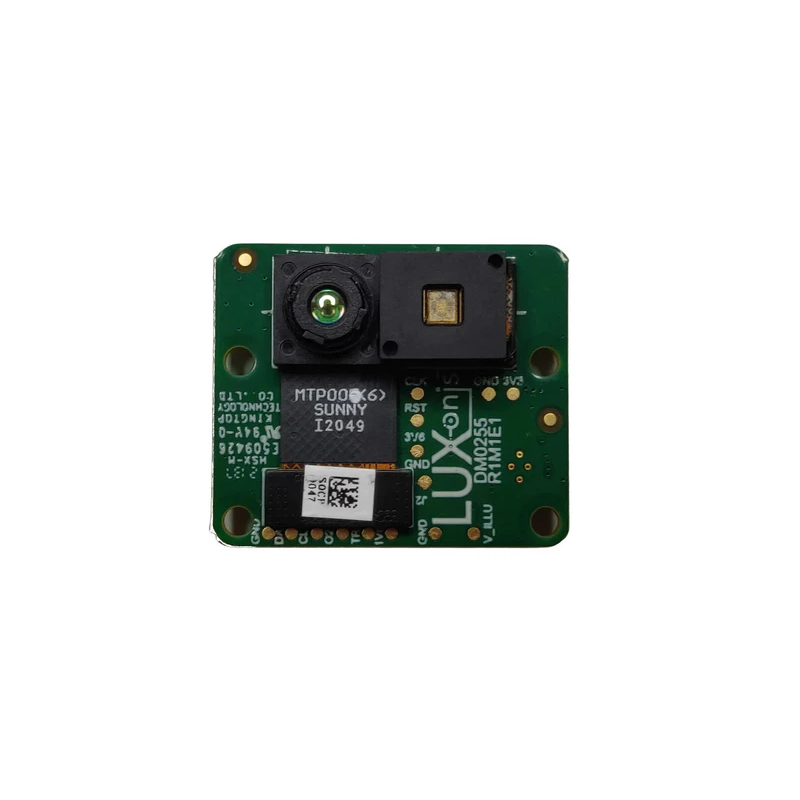

OAK-FFC-pToF is a board designed for the Sunny MTP006 pToF camera module. It has been designed to be compatible with the OAK-FFC-3P, OAK-FFC-4P baseboards, and DepthAI RPi HAT. Special version of the DepthAI library is required for communication with this FFC module. The ToF cameras in this module are equipped with the Sunny MTP006 sensor with a resolution of 224x172. The depth measurement range is from 20 cm to 4 m, with depth accuracy of less than 2% in the range of 20 cm to 40 cm and less than 1% in the range from 40 cm to 4 m. The ToF sensor’s field of view angles are 70.7° for DFOV, 55.9° for HFOV, and 44.0° for VFOV. The sensor operates at a wavelength of 940 nm and can function in temperatures from -20°C to approximately 85°C. The module features a 26-pin FFC 0.5 mm interface for connecting to the baseboard and a 30-pin interface for the MTP006 camera module. Communication with the camera is done via the MIPI 2-lane interface. The board provides 3.3V power through the FFC and includes an onboard power management system for the camera module.
