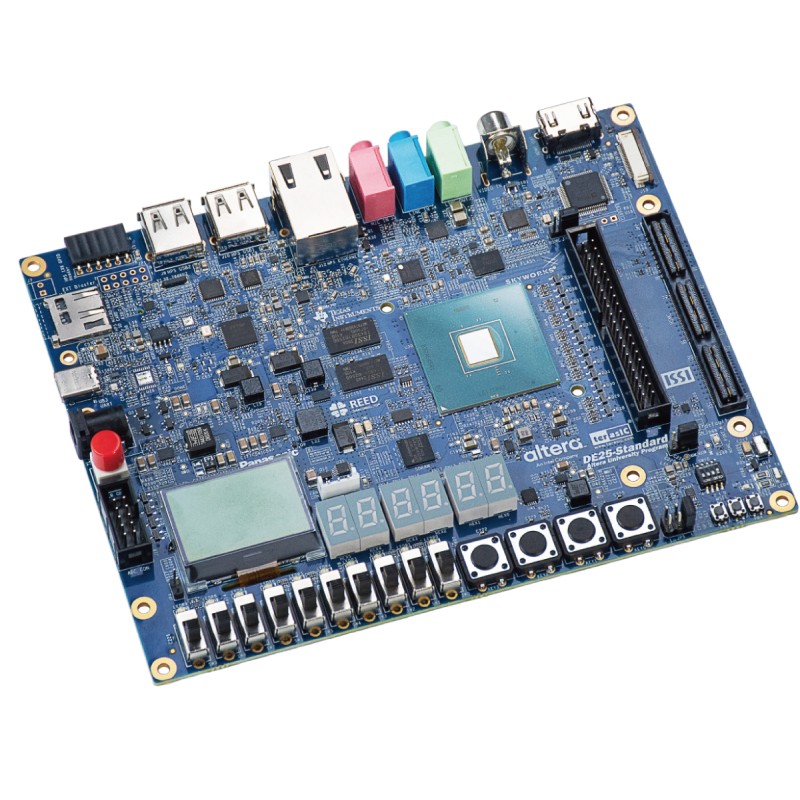

TerasIC DE25-Standard - evaluation kit with Altera Agilex 5 FPGA

Description

DE25-Standard Development and Education Kit is a modern next-generation development platform designed for learning and creating projects in the fields of digital logic, embedded systems, computer vision, AI, and robotics. It is based on the high-performance Altera Agilex 5 SoC FPGA featuring 138K logic elements, offering up to 2.5× higher performance compared to previous solutions. With a rich set of interfaces and expansion options, the kit is ideal for both academic environments and professional development applications.

The kit integrates 1 GB of DDR4 memory and 64 MB of SDRAM, enabling the implementation of demanding data-processing and multimedia projects. It is equipped with advanced video processing interfaces, including a 1080p HDMI output, MIPI CSI/DSI connector, and a composite video input, making it suitable for AI-based vision systems and intelligent monitoring applications. The built-in AI Tensor Block enables the development of modern artificial intelligence applications. DE25-Standard provides a wide range of input/output components, such as 10 LEDs, 10 switches, 4 buttons, and 6 seven-segment displays, making it an excellent tool for laboratory exercises and rapid prototyping. The board also includes a microSD slot, Ethernet port, USB host ports, a 128×64 LCD, and an accelerometer, significantly expanding project capabilities.

A major advantage of the kit is the included free Altera Quartus® Pro Edition license, which allows full compilation and design without the need to purchase additional licenses. The built-in USB-Blaster III provides convenient FPGA programming, while QSPI Flash support enables fast system configuration. The kit is designed for both education and professional prototyping, offering high flexibility, rich hardware resources, and wide software support. With its compact size and extensive capabilities, it is an excellent tool for students, engineers, and embedded system developers.

Features

• FPGA: Altera Agilex™ 5 A5ED013BB32AE4SCS
• Built-in USB-Blaster III
• Supports ASx4 configuration mode with 128-Mbit QSPI Flash
• FPGA:
  • 1 GB DDR4 (32-bit, shared with HPS, no ECC)
  • 64 MB SDRAM (16-bit, no ECC)
  • HDMI 1.4 output (1080p support)
  • 2-lane MIPI CSI/DSI connector for cameras and displays
  • Composite video input
  • 24-bit audio codec (MIC-In, Line-In, Line-Out)
  • 8-channel ADC (2×5 header)
  • IR TX/RX
  • 3.3V DE-GPIO 2×20 header
  • HSMC connector with 4 transceivers
  • 10 user LEDs, 4 buttons, 10 switches, 6× 7-segment displays
  • Temperature sensor and fan controller
• HPS:
  • microSD slot
  • 1 GB DDR4 (shared with FPGA)
  • Gigabit Ethernet with RJ45 connector
  • Two USB Host ports (Type-A)
  • UART-USB
  • 128×64 LCD display
  • Accelerometer
  • LED indicator, button, reset button
  • 3.3V GPIO header (1×6)
• Software support:
  • FPGA example code
  • Linux BSP
• Dimensions: 166 × 130 mm

Kit contains

• DE25-Standard Board
• USB Type-C cable
• AC power cord
• 12 V / 36 W power adapter
• Quick Start Guide
• Four silicone feet
• Fan (pre-installed)
