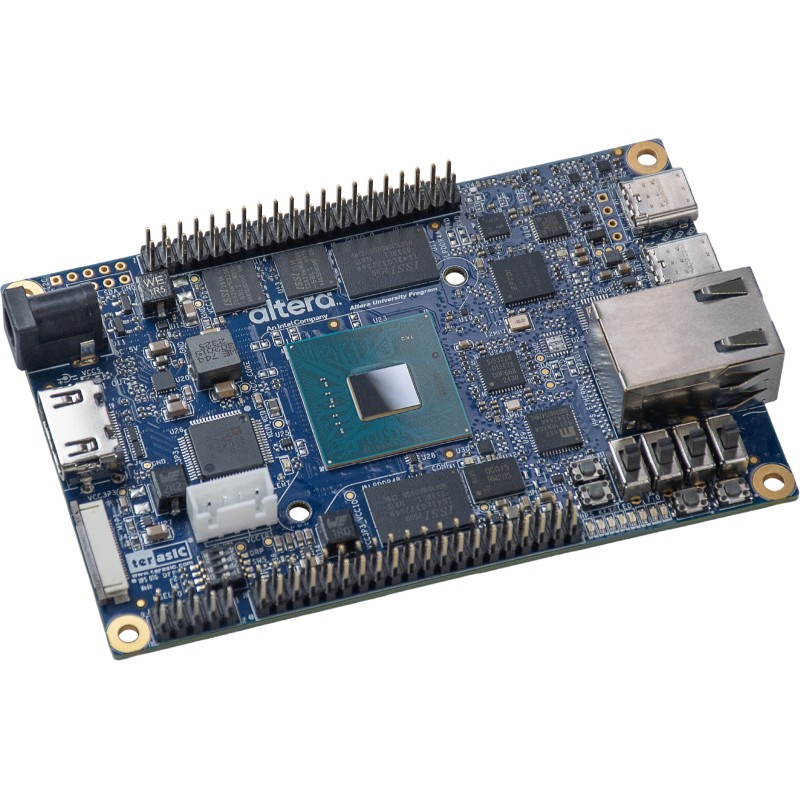

FPGA Development Board with Agilex 5 and HPS ARM Cortex-A76/A55 - Terasic DE25-Nano
search
  • FPGA Development Board with Agilex 5 and HPS ARM Cortex-A76/A55 - Terasic DE25-Nano
ID: 1200685
zł1,317.23
Tax included

zł1,070.92 tax excl.

The Terasic DE25-Nano development board with Agilex™ 5 FPGA and ARM Cortex-A76/A55 HPS system is a modern platform for AI applications, vision processing, and embedded systems. A rich set of interfaces and memory, active cooling, and compact dimensions allow it to be used both in prototyping and in final industrial solutions.

4 weeks
On request

Description

The DE25-Nano board is an advanced development platform based on the Intel Agilex™ 5 FPGA (138k logic elements) and a dual-cluster HPS system with ARM Cortex-A76/A55. It combines high real-time processing performance with a compact design, enabling the development of vision systems, artificial intelligence, automation, and edge signal analysis. The integrated USB-Blaster III programmer, LPDDR4 memory for both FPGA and HPS, HDMI, MIPI, ADC, and GPIO interfaces make it a production-ready platform, not just for prototyping. Compatibility with a wide range of Terasic expansion boards increases design possibilities and facilitates scalability.

Properties

  • FPGA: Intel Agilex™ 5 A5EB013BB23BE4SR1 (138k LE)
  • HPS: ARM Cortex-A76 + Cortex-A55 (dual-cluster)
  • Programmer: USB-Blaster III (USB-C)
  • FPGA memory: 1 GB LPDDR4 (32-bit, 2133 MT/s), 128 MB SDRAM (16-bit)
  • HPS memory: 1 GB LPDDR4 (32-bit, 2133 MT/s, shared with FPGA)
  • HDMI: HDMI output up to 1080p
  • Camera: 1× MIPI CSI with 2 data lanes
  • ADC: 8-channel, 2×5 connector
  • GPIO: 2× DE-GPIO 2×20 connector (3.3 V)
  • FPGA: 8 LEDs, 2 buttons, 4 slide switches
  • HPS: 1 LED, 1 button, 1 reset button
  • UART via USB-C
  • USB 2.0 (USB-C)
  • Ethernet 1 Gb/s (RJ45)
  • Sensors: Accelerometer, temperature sensor
  • Cooling: Active heatsink with fan controller
  • Configuration: QSPI Flash 128 Mbit, ASx4 mode
  • Dimensions: 106.9 × 68.58 mm
  • Memory card slot: microSD
  • Software support: BSP Linux, FPGA sample code
