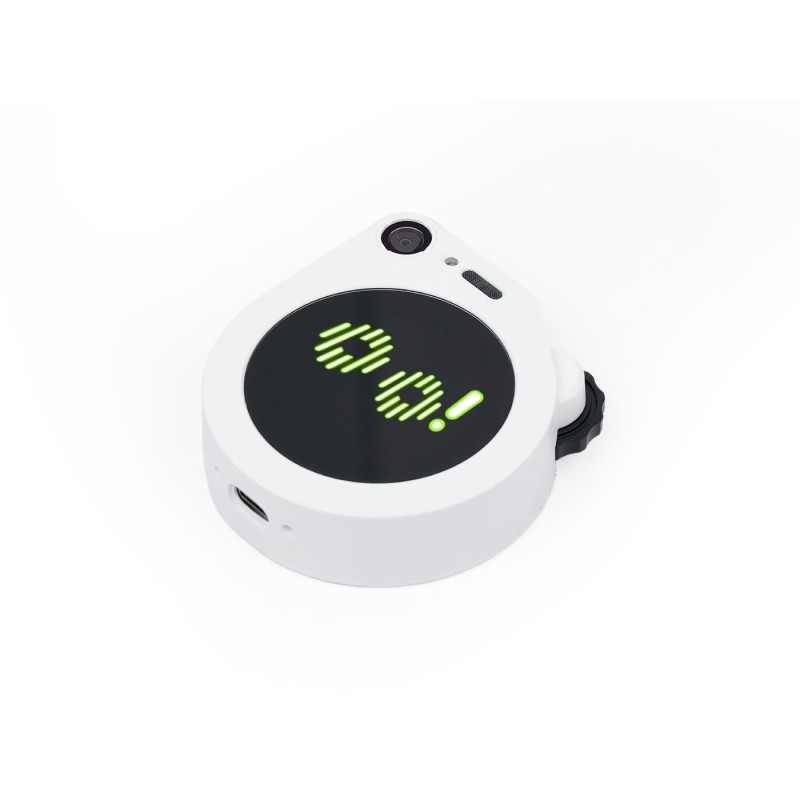

Main view
search
  • Main view
  • Top view
  • Bottom view
  • Rear angled view
  • Full kit
  • In the box
  • Side view
  • Rear view
  • Rear view on mounting adapter
  • Dimensions
ID: 1201766
zł327.00
Tax included

zł265.85 tax excl.

SenseCAP Watcher W1-B is an intelligent AI agent with ESP32-S3, Himax HX6538 AI processor and a 120° camera, designed for monitoring and automated responses in indoor spaces. Seeed Studio 113991275

4 weeks
Awaiting delivery
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

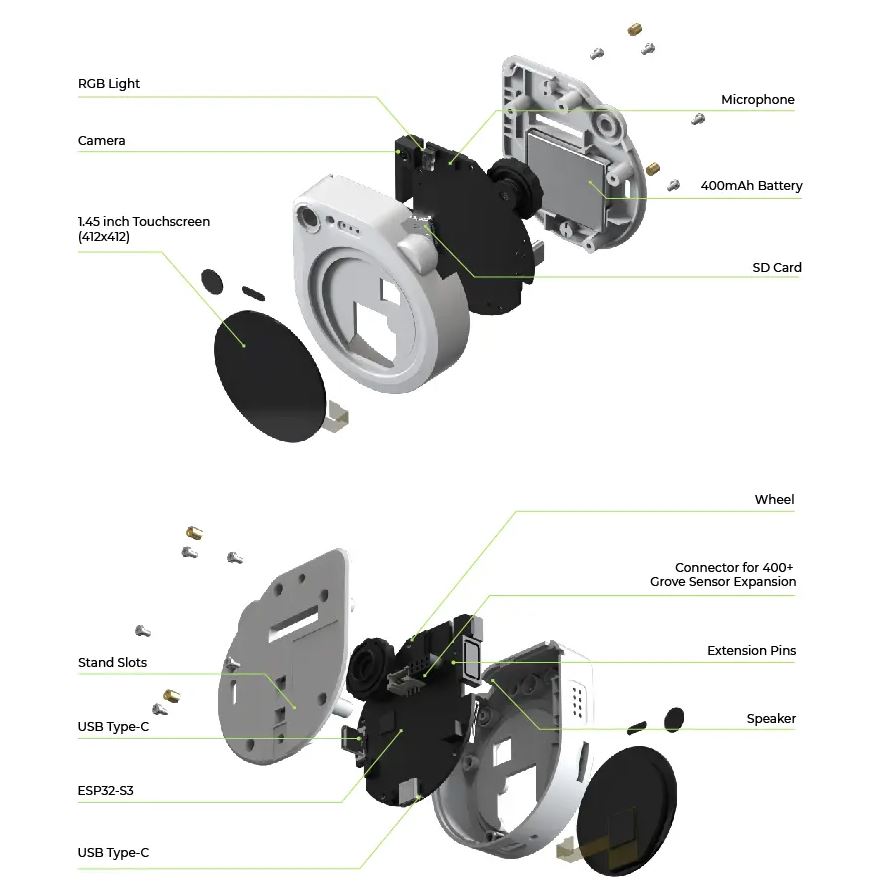

SenseCAP Watcher W1-B is designed for smart space applications where local processing of video, audio and user interaction is required. The device integrates the ESP32-S3 microcontroller with a dedicated Himax HX6538 AI processor, enabling image recognition and event analysis without the need for cloud-based processing.

The OV5647 camera with a wide 120° field of view and a 1.45-inch touchscreen provide convenient operation and data visualization. A built-in microphone, speaker and rotary encoder with button function support the development of interactive user interfaces. WiFi and Bluetooth LE connectivity enable integration with automation systems and network-based applications.


SenseCAP Watcher W1-B features two USB-C ports, microSD card support and a Grove IIC interface, allowing easy expansion with additional modules. The white enclosure and included mounting accessories support wall, desktop or bracket installation, making the device suitable for room monitoring, building automation, as well as educational and prototyping projects.

Watch a short YouTube video showcasing the operation of the SenseCAP Watcher W1-B.


Features

  • Microcontroller and AI
    • Microcontroller: ESP32-S3 240 MHz
    • PSRAM: 8 MB
    • AI processor: Himax HX6538 Cortex-M55 with Ethos-U55 accelerator
  • Camera and user interface
    • Camera: OV5647
    • Field of view: 120°
    • Focus: Fixed 3 m
    • Display: 1.45-inch touchscreen
    • Display resolution: 412 x 412 px
    • Microphone: Built-in
    • Speaker: 1 W
  • Wireless connectivity
    • WiFi: IEEE 802.11b/g/n 2.4 GHz
    • Wireless range: Up to 100 m in open space
    • Bluetooth LE: Bluetooth 5
    • Antenna: Built-in WiFi and BLE
  • Memory and interfaces
    • microSD card slot: Up to 32 GB FAT32
    • Flash memory ESP32-S3: 32 MB
    • Flash memory HX6538: 16 MB
    • Grove interface: 1 x Grove IIC
    • Expansion header: 2 x 4 pin IIC, GPIO, GND, 3.3V_OUT, 5V_IN
  • Controls and indicators
    • Rotary encoder: Scroll up and down with button
    • LED: 1 x RGB
    • Reset button: RST
  • Power supply
    • Power supply: 5 V DC
    • Rear USB-C: Power only
    • Bottom USB-C: Power and programming
    • Backup battery: 3.7 V 400 mAh Li-ion
  • Mechanical characteristics
    • Operating temperature: 0°C ~ 45°C
    • Dimensions: 69 x 65 x 20 mm
    • Mounting: Wall, desktop, bracket

Kit includes

  • 1x SenseCAP Watcher W1-B in white enclosure
  • 1x Universal wheel with base plate and adhesive
  • 1x 1/4" threaded adapter set
  • 1x USB-C cable
  • 2 x 3 x 10 mm screws
1201766

Data sheet

Resolution
412 x 412 px
Interface
USB typ C
Sensor
OV5647
IR filter
No
Lens assembly
none
