JST PH 4-pin and JST SH 4-pin connector adapter - Pololu 5654
ID: 1200182
zł7.04
Tax included
zł5.72 tax excl.

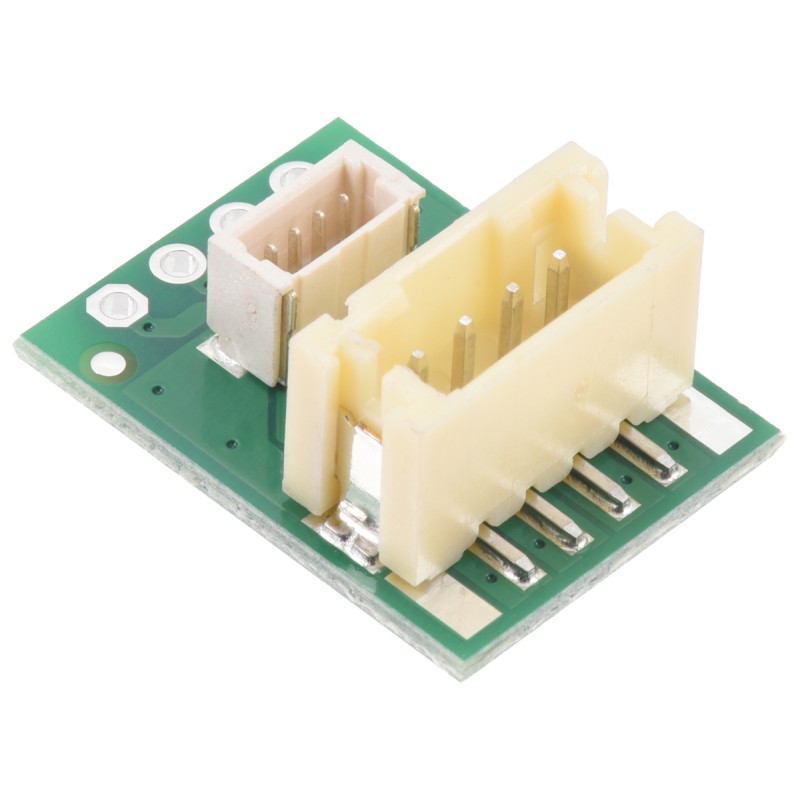

Pololu 5654 is a four-channel JST PH and SH connector adapter for systems based on a 2.54 mm pitch. It facilitates the integration of signal and power wires in prototyping projects and electronic devices where 4-pin connectors are required.
Description
The Pololu 5654 module allows simultaneous connection of JST PH 4-pin (2.00 mm pitch, top-entry) and JST SH 4-pin (1.00 mm pitch, top-entry) connectors to circuits with 2.54 mm through-holes. The connectors are wired in parallel, enabling the board to be used either as a PH-to-SH adapter or as a standard breakout.
The PH connector supports up to 2 A, while the SH connector supports up to 1 A, allowing both power and signal transmission in four-channel systems such as sensors, encoders, or I²C/UART buses. The module is compatible with JST PH and SH 4-pin wires, making it ideal for rapid prototyping and integration with breadboards or embedded systems.
Specifications
- Connectors: JST PH 4-pin (2.00 mm, top-entry), JST SH 4-pin (1.00 mm, top-entry)
- Pin pitch: 2.54 mm (0.1")
- Maximum current: 2 A (PH), 1 A (SH)
- Maximum voltage: 50 V
- Dimensions: 18.5 × 13.7 × 7.6 mm
- Weight: 1.0 g
- PCB markings: con10a, 0J15757
- Mounting: THT
1200182
Data sheet
- Montage
- Brak
- Pitch
- Other
- Number of pins
- 4
- Connector type JST
- PH/SH
- Angled/straight
- N/A
