JST PH 3-pin and JST SH 3-pin connector adapter - Pololu 5653
ID: 1200183
zł6.59
Tax included
zł5.36 tax excl.

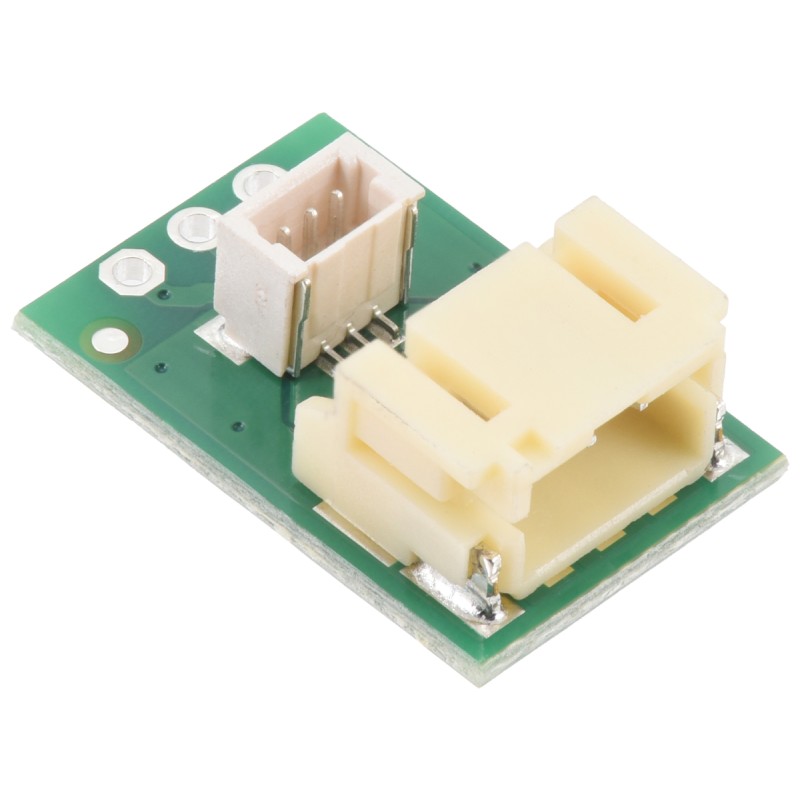

Pololu 5653 is a JST PH and SH 3-pin connector adapter with side-entry and top-entry outputs, enabling convenient integration with devices based on a 2.54 mm pitch. Designed for projects requiring three channels of signal or power transmission.
Description
The Pololu 5653 module serves as an adapter for a JST PH 3-pin connector (side-entry, 2.00 mm pitch) and a JST SH 3-pin connector (top-entry, 1.00 mm pitch) to a standard 2.54 mm through-hole layout. The connectors are wired in parallel, allowing the board to be used as a PH-to-SH adapter or as a universal breakout for signal and power wires.
The PH connector supports up to 2 A, while the SH connector supports up to 1 A, enabling integration with a wide range of electronic components – from servos to sensors. The low-profile side-entry PH connector allows routing wires along the plane of the PCB, making assembly easier in space-constrained devices.
Specifications
- Connectors: JST PH 3-pin (2.00 mm, side-entry), JST SH 3-pin (1.00 mm, top-entry)
- Pin pitch: 2.54 mm (0.1")
- Maximum current: 2 A (PH), 1 A (SH)
- Maximum voltage: 50 V
- Dimensions: 18.5 × 12 × 6.6 mm
- Weight: 0.8 g
- PCB markings: con09a, 0J15756
- Mounting: THT
1200183
Data sheet
- Montage
- Brak
- Pitch
- Other
- Number of pins
- 3
- Connector type JST
- PH/SH
- Angled/straight
- N/A
