JST PH 4-pin and JST SH 4-pin connector adapter - Pololu 5655
ID: 1200181
zł7.04
Tax included
zł5.72 tax excl.

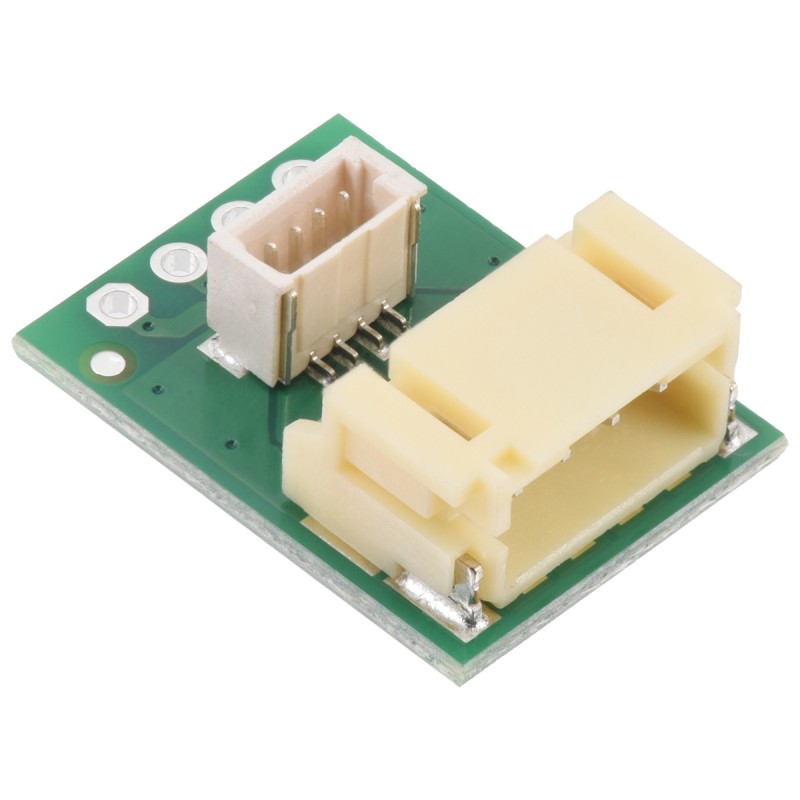

Pololu 5655 is a JST PH and SH 4-pin connector adapter designed for systems based on a 2.54 mm pitch. With the side-entry PH connector and compact design, it is suitable for applications requiring low-profile mounting and four-channel signal or power connections.
Description
The Pololu 5655 module allows connection of wires terminated with JST PH 4-pin (2.00 mm pitch, side-entry) and JST SH 4-pin (1.00 mm pitch, top-entry) connectors to prototyping boards and systems with 2.54 mm through-holes. Both connectors are placed in parallel, enabling the board to be used either as a PH-to-SH adapter or as a breakout with outputs in two standards.
The PH connector supports up to 2 A, while the SH connector supports up to 1 A. The side-entry PH connector allows routing wires parallel to the PCB, which is especially useful in devices with limited mounting space. The board is suitable for applications requiring four-channel power or signal connections, such as communication modules, sensors, or control interfaces.
Specifications
- Connectors: JST PH 4-pin (2.00 mm, side-entry), JST SH 4-pin (1.00 mm, top-entry)
- Pin pitch: 2.54 mm (0.1")
- Maximum current: 2 A (PH), 1 A (SH)
- Maximum voltage: 50 V
- Dimensions: 18.5 × 13.7 × 6.6 mm
- Weight: 1.0 g
- PCB markings: con10a, 0J15757
- Mounting: THT
1200181
Data sheet
- Montage
- Brak
- Pitch
- Other
- Number of pins
- 4
- Connector type JST
- PH/SH
- Angled/straight
- N/A
