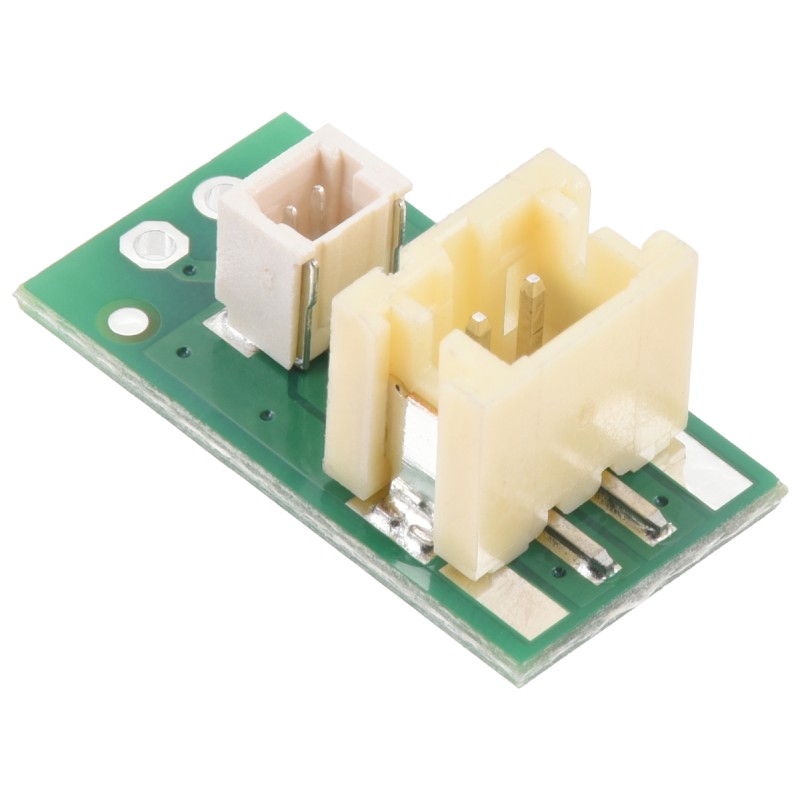

JST PH 2-pin and JST SH 2-pin connector adapter - Pololu 5650
ID: 1200186
zł6.15
Tax included
zł5.00 tax excl.
Pololu 5650 is a JST PH and SH 2-pin connector adapter designed for integration with prototyping boards and modules with a 2.54 mm pitch. It allows conversion between JST PH and SH standards and enables quick wire connections in power and communication projects.
Description
The Pololu 5650 module allows easy connection of wires terminated with JST PH 2-pin (2.00 mm pitch) or JST SH 2-pin (1.00 mm pitch) connectors to a breadboard or circuit with 2.54 mm pin spacing. Both PH and SH connectors are placed in parallel, enabling the board to be used both as a standard adapter and as a PH-to-SH converter. The PH connector is rated for up to 2 A, and the SH connector for up to 1 A.
The 0.1" pitch through-hole pads allow soldering of male headers, female headers, or a screw terminal block, providing flexibility for integration with different prototyping systems. The compact design makes it suitable for projects with limited mounting space.
Specifications
- Connectors: JST PH 2-pin (2.00 mm), JST SH 2-pin (1.00 mm) – both top-entry
- Pin pitch: 2.54 mm (0.1")
- Maximum current: 2 A (PH), 1 A (SH)
- Maximum voltage: 50 V
- Dimensions: 18.5 × 9.6 × 7.6 mm
- Weight: 0.6 g
- PCB markings: con08a, 0J15755
- Mounting: THT
1200186
Data sheet
- Montage
- Brak
- Pitch
- Other
- Number of pins
- 2
- Connector type JST
- PH/SH
- Angled/straight
- N/A
