Pololu 5657 is a breakout board for JST PH and SH 5-pin connectors with side-entry PH and top-entry SH. It allows easy integration of wires with 2.54 mm pitch systems, offering five-channel connections in a compact design with stable mounting capability.

6 weeks
Awaiting delivery
Kamami is the official distributor of electronic modules and Pololu robotic parts. All products of this brand in our offer are original and come directly from the manufacturer.

Description

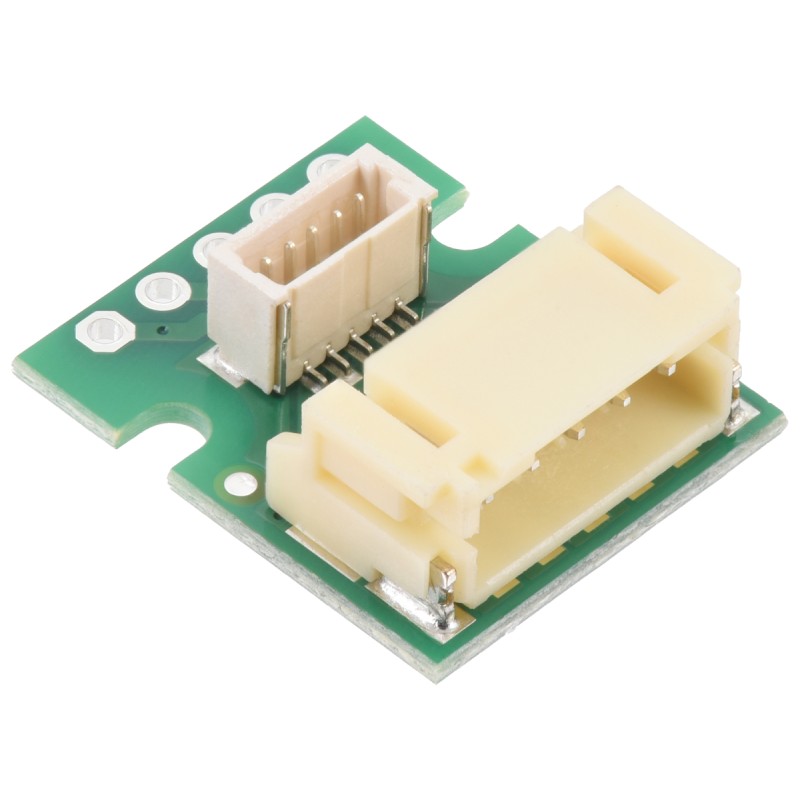

The Pololu 5657 module allows connection of wires with JST PH 5-pin (2.00 mm pitch, side-entry) and JST SH 5-pin (1.00 mm pitch, top-entry) connectors to prototyping boards and breadboards with 2.54 mm through-holes. Both connectors are wired in parallel, enabling the board to function as a PH-to-SH adapter or as a breakout supporting both connector standards.

The PH connector supports currents up to 2 A, while the SH connector supports up to 1 A. The side-entry PH design routes wires parallel to the PCB, making it suitable for low-profile devices. The board includes two mounting holes for M2 or #2 screws, allowing secure installation in target devices. The module is useful in systems requiring five-channel power or signal connections, such as sensors, communication interfaces, and controllers.

Specifications

  • Connectors: JST PH 5-pin (2.00 mm, side-entry), JST SH 5-pin (1.00 mm, top-entry)
  • Pin pitch: 2.54 mm (0.1")
  • Maximum current: 2 A (PH), 1 A (SH)
  • Maximum voltage: 50 V
  • Dimensions: 18.5 × 15.7 × 6.6 mm
  • Weight: 1.2 g
  • Mounting: two holes for M2 or #2 screws
  • PCB markings: con11a, 0J15758
  • Mounting type: THT
1200179

Data sheet

Montage
Brak
Pitch
Other
Number of pins
5
Connector type JST
PH/SH
Angled/straight
N/A
