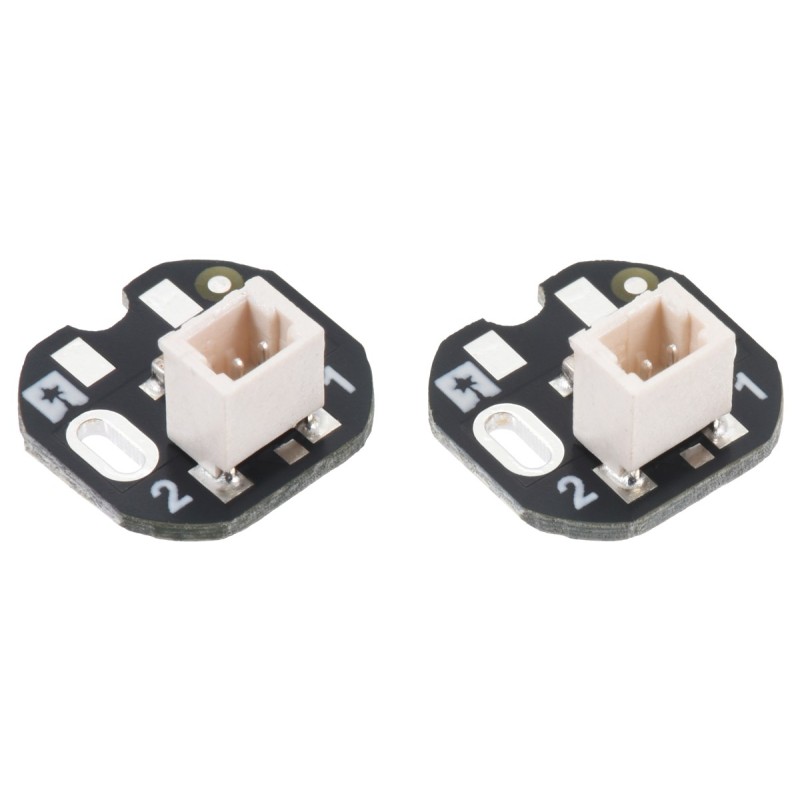

Pololu Adapter for Micro Metal Gearmotors – JST SH-Style Connector Board, 2-Pin, Back-Entry, 10pcs
ID: 1199883
zł22.55
Tax included
zł18.33 tax excl.
A 10-pack of adapter boards with 2-pin JST SH-type back-entry connectors for Pololu single-shaft micro metal gearmotors. Enables easy, quick, and clean wiring in compact electronic and robotic projects. Pololu 5097
Description
A set of ten adapter boards with 2-pin male JST SH-type connectors in back-entry orientation, designed for easy and consistent connection of Pololu micro metal gearmotors with a single shaft, including HPCB versions. The boards are mounted by soldering the motor terminals to designated slots, and the entire assembly fits within the motor's outline. The connectors are compatible with standard female JST SH (2-pin) cables, with pin 1 corresponding to the board slot marked “1”. These adapters simplify wiring and servicing in compact designs. Pololu 5097
Properties
- Connector type: JST SH, 2-pin, back-entry
- Compatibility: Pololu single-shaft micro metal gearmotors (not compatible with extended back shaft versions)
- Rated voltage: 50 V
- Rated current: 1 A
- Board dimensions: 10.2 × 9.6 × 5.2 mm
- Weight: 0.2 g
1199883
Data sheet
- Montage
- Brak
- Pitch
- 1 mm
- Number of pins
- 2
- Connector type JST
- SH
- Angled/straight
- Angled
- Dimension diagrams of the JST SH-Style Connector Boards for Micro Metal Gearmotors (387,04 kB)
- 3D model of the JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Back-Entry (2,61 MB)
- 3D model of the JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Side-Entry (2,63 MB)
- 3D models of Micro Metal Gearmotors (57,2 MB)
- Drill guide for the JST SH-Style Connector Boards for Micro Metal Gearmotors (43,42 kB)
