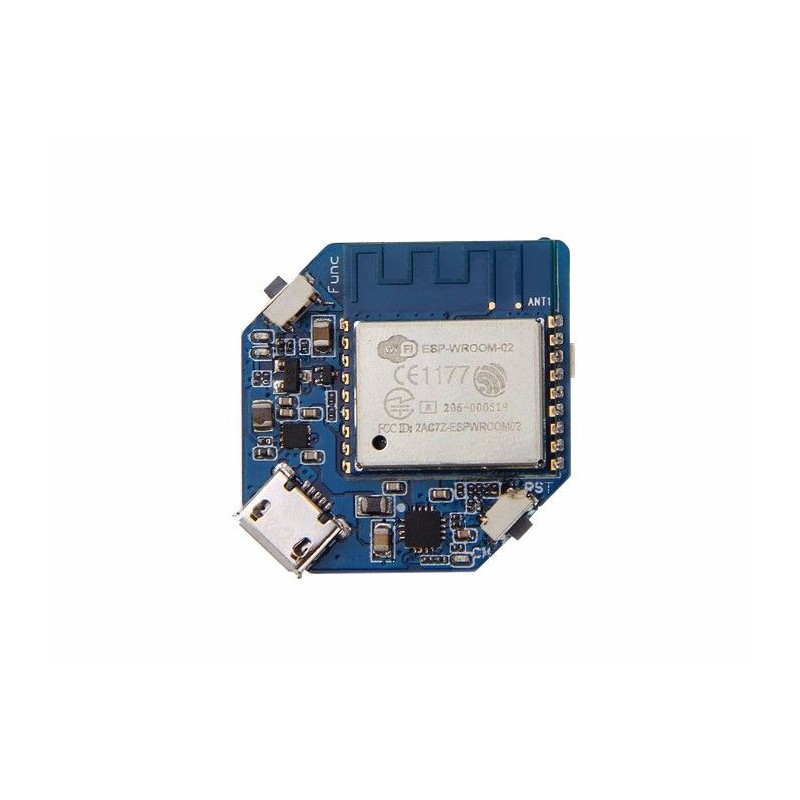

Wio Node - Wio Link module with ESP-WROOM-02 chip
ID: 564157
5902186314719
zł51.44
Tax included
zł41.82 tax excl.
This ESP8266-based development board is designed for rapid IoT application development. It features support for two Grove Plug-n-Play connectors, digital and analog I/O, and UART and I2C interfaces for connecting multiple sensors and modules. The device supports OTA firmware updates, a RESTful API, and integration with mobile apps and IFTTT, allowing for easy remote control and monitoring. Seeed Studio 102110057
Description
Wio Node is a compact and lightweight development board based on ESP8266, designed for rapid IoT application development. Despite its small size, Wio Node offers many features found in larger Wio models, such as support for Grove Plug-n-Play, OTA (Over-The-Air) firmware updates, RESTful API, as well as integration with IFTTT and mobile apps on Android and iOS. The board is intended for easy creation of IoT devices without the need for breadboards, soldering, or connection wires.
Wio Node supports 2 Grove connectors, providing 2 digital input/output pins, 1 analog input, 1 UART interface, and 2 I2C interfaces, allowing connection to up to 42 Grove modules and more in the future. Device configuration is visual and managed via the Wio APP mobile application, which allows sensor readings and actuator control. Due to its lightweight design and low cost, Wio Node is ideal for projects requiring multiple connected devices in IoT systems. Wio Node is an excellent solution for hobbyists, educators, and IoT prototype creators who need an affordable, compact, and easy-to-use platform for internet-connected smart devices.
Features
- Wi-Fi module: ESP8266
- Grove Plug-n-Play connectors: 2x
- Digital inputs/outputs: 4
- Analog inputs: 1
- Communication interfaces: UART0, I2C0, I2C1, D0, D1
- Flash memory: 4 MB (W25Q32B)
- Wi-Fi: 802.11b/g/n, WEP/TKIP/AES encryption
- OTA (Over-The-Air) firmware updates
- RESTful API and integration with Wio APP
- IFTTT support
- Power supply: 3.3 V (operating), 3.0–4.2 V from battery, 5V via Micro USB
- Maximum I/O pin current: 12 mA
- Dimensions: 28 x 28 x 6.7 mm
- Weight: 10 g
564157
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
