JST PH 5-pin and JST SH 5-pin connector adapter - Pololu 5656
ID: 1200180
zł7.38
Tax included
zł6.00 tax excl.

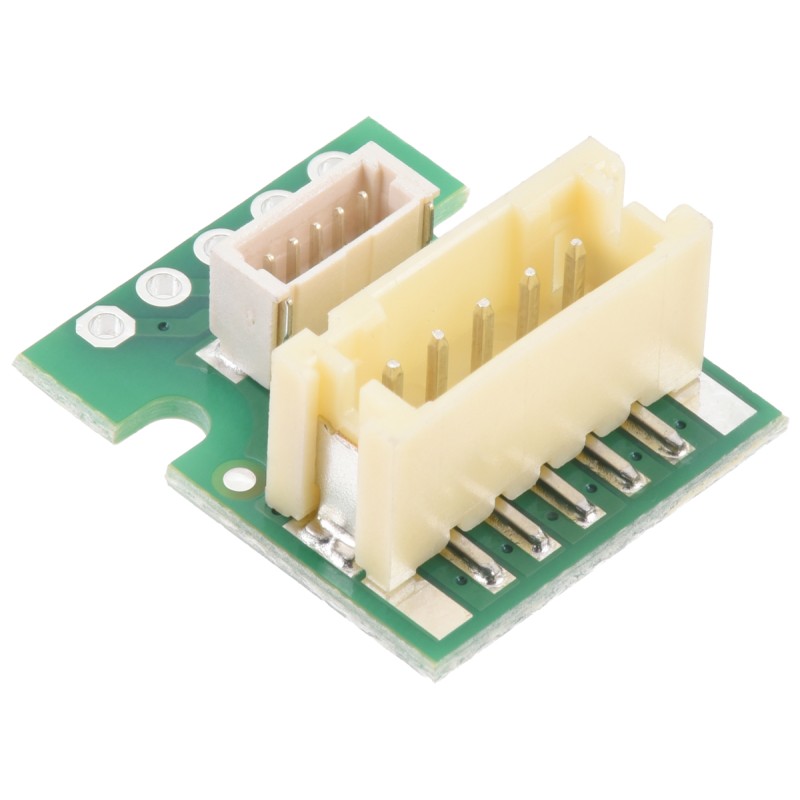

Pololu 5656 is a breakout board for JST PH and SH 5-pin connectors, allowing easy connection of wires to systems with a 2.54 mm pitch. With support for both connector standards and mounting holes, it is well-suited for projects requiring stable installation and five-channel signal connections.
Description
The Pololu 5656 module allows connection of wires with JST PH 5-pin (2.00 mm pitch, top-entry) and JST SH 5-pin (1.00 mm pitch, top-entry) connectors to prototyping circuits and breadboards with 2.54 mm through-holes. Both connectors are wired in parallel, enabling the board to be used as a PH-to-SH adapter or as a breakout with outputs in two standards.
The PH connector supports up to 2 A, while the SH connector supports up to 1 A. The module is suitable for projects requiring five-channel signal or power connections, such as sensors, communication systems, and controllers. The board includes two mounting holes for M2 or #2 screws, allowing secure installation inside a device.
Specifications
- Connectors: JST PH 5-pin (2.00 mm, top-entry), JST SH 5-pin (1.00 mm, top-entry)
- Pin pitch: 2.54 mm (0.1")
- Maximum current: 2 A (PH), 1 A (SH)
- Maximum voltage: 50 V
- Dimensions: 18.5 × 15.7 × 7.6 mm
- Weight: 1.2 g
- Mounting: two holes for M2 or #2 screws
- PCB markings: con11a, 0J15758
- Mounting type: THT
1200180
Data sheet
- Montage
- Brak
- Pitch
- Other
- Number of pins
- 5
- Connector type JST
- PH/SH
- Angled/straight
- N/A
