JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Side-Entry, 2pcs
ID: 1199882
zł7.39
Tax included
zł6.01 tax excl.
A 2-pack of adapter boards with 2-pin JST SH side-entry connectors for Pololu single-shaft micro metal gearmotors. Enables easy power wiring in space-constrained electronic or robotic projects. Pololu 5098
Description

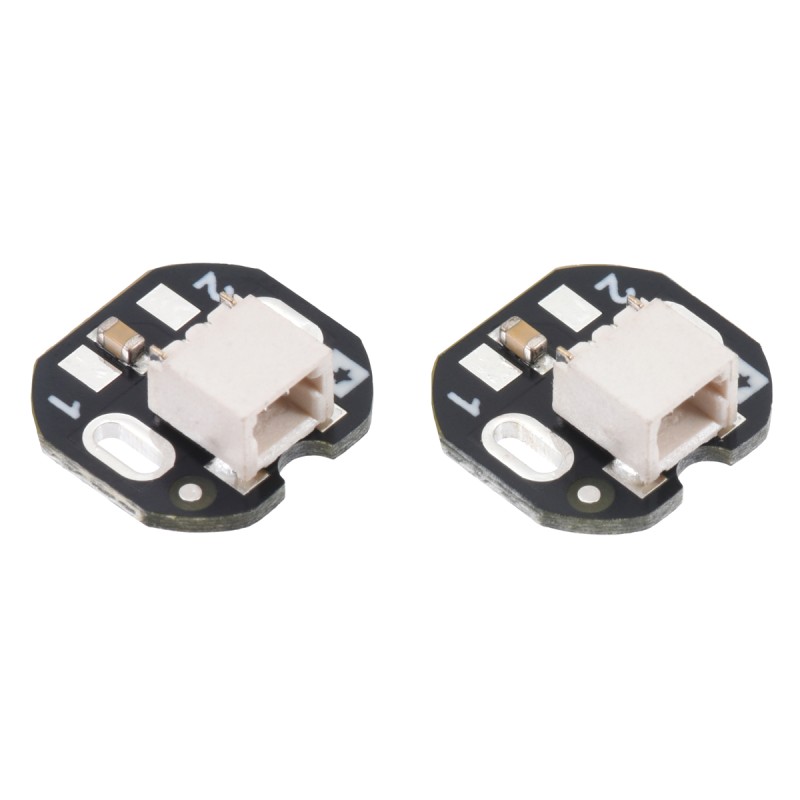

A set of two adapter boards with 2-pin male JST SH-type connectors, designed for Pololu single-shaft micro metal gearmotors (including HPCB versions). The side-entry connector is positioned perpendicular to the motor shaft, making it easier to install in enclosures with limited vertical space. The boards are mounted by soldering the motor terminals to dedicated slots, with the entire assembly fitting within the motor’s outline. The connectors are compatible with standard 2-pin female JST SH cables, with pin 1 corresponding to the marking on the PCB. Pololu 5098
Properties
- Connector type: JST SH, 2-pin, side-entry
- Compatibility: Pololu single-shaft micro metal gearmotors (not compatible with extended back shaft versions)
- Rated voltage: 50 V
- Rated current: 1 A
- Board dimensions: 10.2 × 9.6 × 5.2 mm
- Weight: 0.2 g
1199882
Data sheet
- Montage
- Brak
- Pitch
- 1 mm
- Number of pins
- 2
- Connector type JST
- SH
- Angled/straight
- Straight
- Dimension diagrams of the JST SH-Style Connector Boards for Micro Metal Gearmotors (387,04 kB)
- 3D model of the JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Back-Entry (2,61 MB)
- 3D model of the JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Side-Entry (2,63 MB)
- 3D models of Micro Metal Gearmotors (57,2 MB)
- Drill guide for the JST SH-Style Connector Boards for Micro Metal Gearmotors (43,42 kB)
