JST PH 3-pin and JST SH 3-pin connector adapter - Pololu 5652
ID: 1200184
zł6.59
Tax included
zł5.36 tax excl.
Pololu 5652 is an adapter that allows connection of 3-wire JST PH and SH connectors to circuits with 2.54 mm pin headers. Applications include sensors, communication modules, and servo systems. The adapter is a convenient tool for quick integration of wires with prototyping boards.
Description

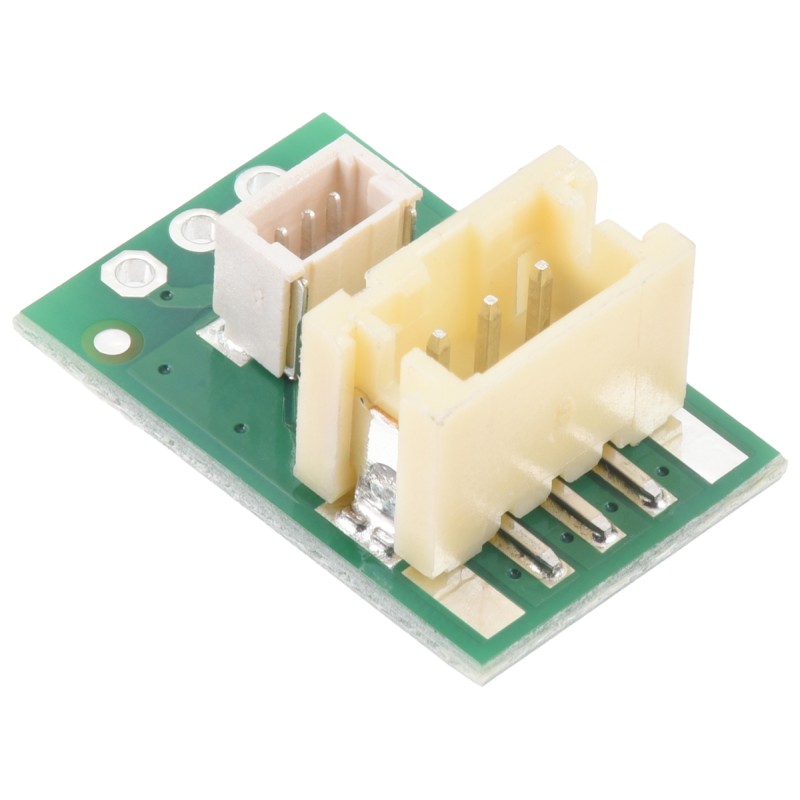

The Pololu 5652 module allows easy connection of wires terminated with JST PH 3-pin (2.00 mm pitch) and JST SH 3-pin (1.00 mm pitch) connectors to prototyping circuits and boards with 2.54 mm through-holes. Both connectors are placed on a single board in parallel, enabling the module to function either as a standard breakout or as a PH-to-SH adapter. The PH connector supports up to 2 A, while the SH connector supports up to 1 A.
The 0.1" pin layout is compatible with male headers, female headers, and screw terminals. Top-entry orientation makes it easier to mount and route wires vertically relative to the board. The board is dedicated to projects requiring three channels, such as applications with sensors, servos, or communication interfaces.
Specifications
- Connectors: JST PH 3-pin (2.00 mm), JST SH 3-pin (1.00 mm) – both top-entry
- Pin pitch: 2.54 mm (0.1")
- Maximum current: 2 A (PH), 1 A (SH)
- Maximum voltage: 50 V
- Dimensions: 18.5 × 12 × 7.6 mm
- Weight: 0.8 g
- PCB markings: con09a, 0J15756
- Mounting: THT
1200184
Data sheet
- Montage
- Brak
- Pitch
- Other
- Number of pins
- 3
- Connector type JST
- PH/SH
- Angled/straight
- N/A
