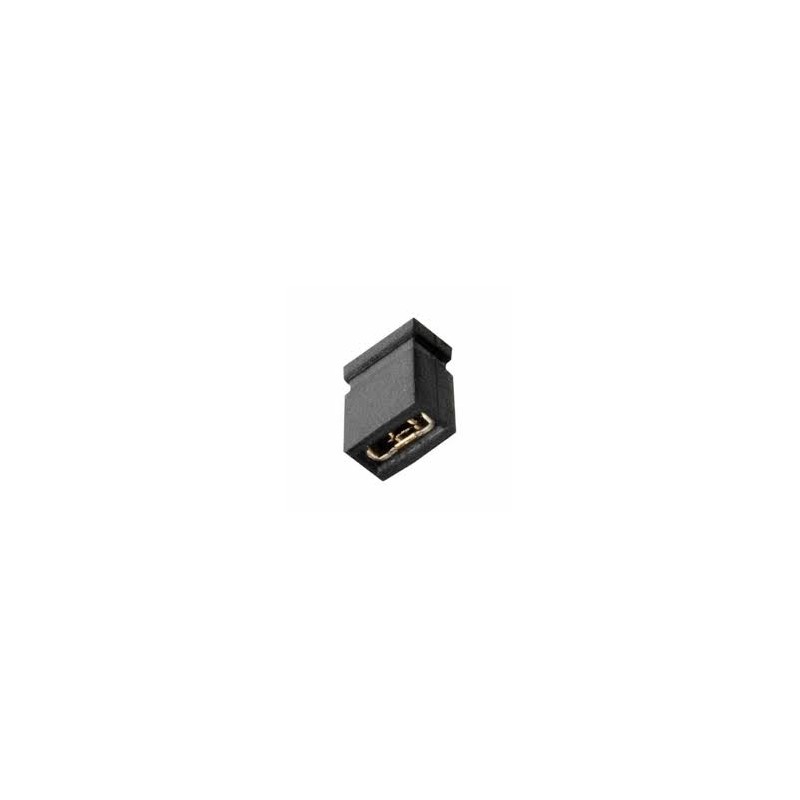

Harwin M50-1900005 - Top Entry Jumper, 2.54 mm

Description

The M50-1900005 from Harwin is a high-reliability jumper (shunt), part of the ARCHER M50 series, designed for use with standard 2.54 mm pitch headers. It provides a convenient and reusable way to make or break electrical connections on PCBs without soldering.

The jumper features a black nylon housing rated to UL 94 V-0 for flame retardancy and high-temperature resistance. Its copper alloy contacts are gold-plated, ensuring low contact resistance, excellent conductivity, and corrosion resistance. It supports up to 500 V and 1 A current rating.

Features

• Manufacturer: Harwin
• Part number: M50-1900005
• Series: ARCHER M50
• Accessory type: jumper (shunt)
• Pitch: 2.54 mm
• Color: black
• Housing material: nylon (UL 94 V-0)
• Contact material: copper alloy, gold-plated
• Rated current: 1 A
• Rated voltage: 500 V
• Unit weight: 16.2 mg
• RoHS compliant
