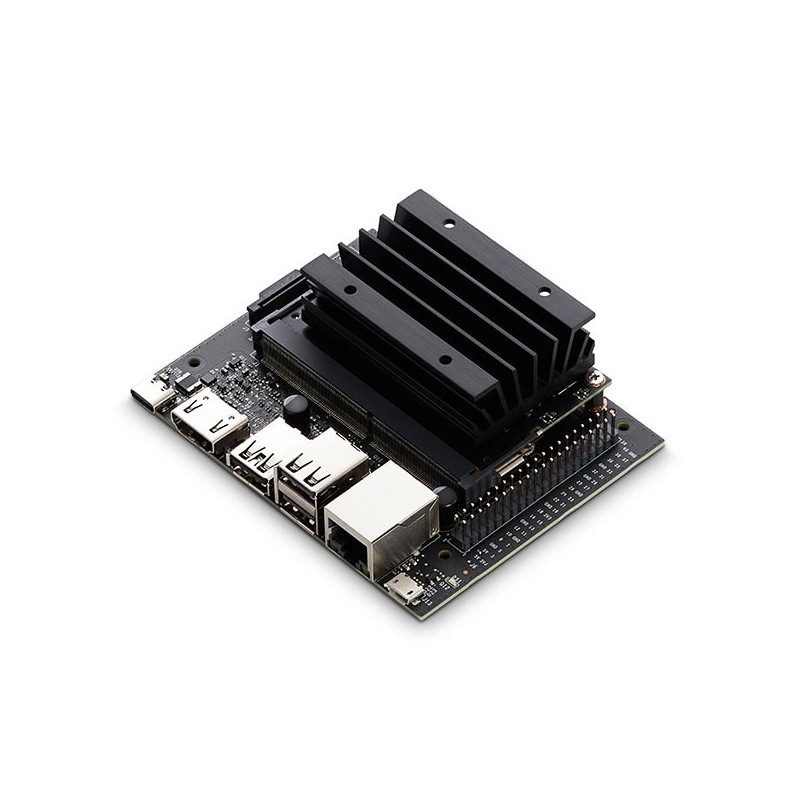

Developer Kit NVIDIA Jetson Nano - ARM Cortex A57 1.43GHz, 2GB RAM, WiFi, Nvidia Maxwell
ID: 581786
NVIDIA development kit with the ARM Cortex A57 1.43GHz CPU chip and the Maxwell graphics system consisting of 128 cores supporting CUDA technology. The module has a DDR4 2 GB RAM memory 945-13541-0000-000
Description
NVIDIA Development Kit with ARM Cortex A57 CPU running at 1.43 GHz and the Maxwell graphics system consisting of 128 cores supporting CUDA technology. The system is supported by 2 GB DDR4 RAM memory, Ethernet, HDMI and two MIPI-CSI interface. The package is designed especially for graphic design and processing of very large amounts of data. It allows you to familiarize yourself with the programming technique of GPUs.
The Jetson Nano module is the smallest device on the Jetson platform. It provides performance for running modern AI loads in a small, energy-saving format. Provides 472 GFLOPs of computing power for fast work with modern SI algorithms. It can run multiple neural networks in parallel and simultaneously process data from multiple high-resolution sensors, making it the perfect solution for basic network video recorders (NVRs), home robots and intelligent gateways with full analytical capabilities.
Nvidia makes available on your site ( https://courses.nvidia.com/courses/course-v1:DLI+C-RX-02+V1/about ) a free course of artificial intelligence based on NVIDIA Jetson Nano.
Video presentation
Features
- Parameters of the module
- NVIDIA Maxwell ™ GPU with 128 NVIDIA CUDA® cores
- CPU Quad-core processor ARM® Cortex®-A57 MPCore
- 2 GB 64-bit LPDDR4 memory
- Camera 12 lanes (3x4 or 4x2) MIPI CSI-2 DPHY 1.1 (1.5 Gbps)
- Gigabit Ethernet
- HDMI 2.0
- UPHY 1 x1 / 2/4 PCIE, 1x USB 3.0, 3x USB 2.0
- Input / output ports 3x UART, 2x SPI, 2x I2S, 4x I2C, GPIOs
- Video
- 4Kp30 video coding | 4x 1080p30 | 9x 720p30 (H.264 / H.265)
- 4Kp60 video decoder 2x 4Kp30 | 8x 1080p30 | 18x 720p30 | (H.264 / H.265)
- Connectors
- MicroSd card socket
- Micro-USB 5V 2A
- USB-C 5V power connector
- 2 x USB 2.0 Type A
- 1 x USB 3.0 Type A
- USB 2.0 Micro-B
- HDMI connector
- M.2 Key E connector
- Gigabit Ethernet
- GPIO, I2C, I2S, SPI, UART
- MIPI-CSI camera connector
- Fan connector
- Dimensions : 100 x 80 x 29 mm
Arrangement of elements on the board and description of outputs
| 1. microSD card slot for main storage | 6. USB 3.0 port (x1) |
| 2. 40-pin expansion header | 7. HDMI output port |
| 3. Micro-USB port for Device Mode | 8. USB-C for 5V power input |
| 4. Gigabit Ethernet port | 9. MIPI CSI-2 camera connector |
| 5. USB 2.0 ports (x2) |
Kit contains
- NVIDIA Jetson Nano module and motherboard
- Dark ESD bag
- Wi-Fi module and cable
- Quick start/technical support guide
