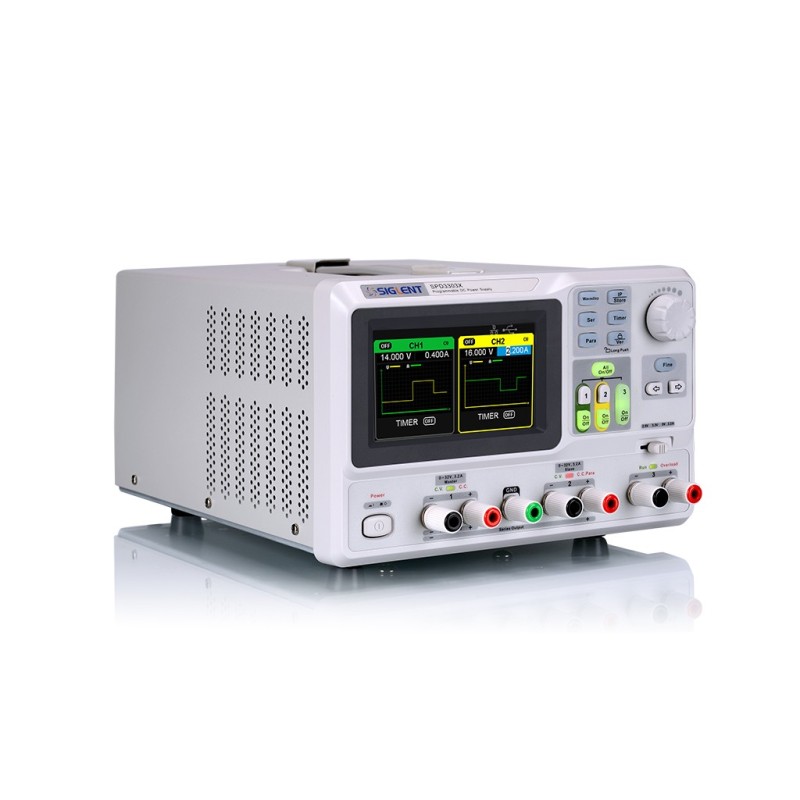

Main view
search
  • Main view
  • Front view
ID: 1189232
zł1,967.19
Tax included

zł1,599.34 tax excl.

Linear, programmable DC benchtop power supply with three independent, galvanically isolated outputs, providing a total power of 220 W. It offers two fully adjustable 0-32 V channels and an additional fixed 2.5 V/3.3 V/5 V output for flexible applications. A 4.3-inch color TFT display allows for clear, real-time monitoring of voltage, current, and waveforms. Support for independent, serial, and parallel modes, as well as remote control via USB and LAN, make it a versatile tool for electronics design and test. The Siglent SPD3303X-E

24h
Available
Available quantity: 1

Description

Siglent SPD3303X-E is a linear, programmable DC laboratory power supply from the SPD3000X series, designed for use in laboratories, R&D departments, and production lines. The device offers three independent and galvanically isolated outputs, including two fully adjustable channels and one fixed-voltage output of 2.5 V / 3.3 V / 5 V. The total output power of 220 W allows it to supply a wide range of electronic circuits.

The power supply is equipped with a 4.3-inch color TFT-LCD display that shows voltage, current, and real-time waveforms. The clear graphical interface significantly improves ease of use and parameter control. The device supports independent, series, and parallel operating modes, increasing application flexibility. High resolution and programming accuracy enable precise power setting. Built-in short-circuit and overload protection ensure safe operation with sensitive circuits.

An intelligent, temperature-controlled fan effectively reduces noise. The power supply supports remote control and programming via USB and LAN. The included Easypower software enables integration with test systems and supports SCPI and LabVIEW protocols. The SPD3303X-E is a reliable tool for engineers, technicians, and technical education. It is well suited for both design and testing of electronic devices. Solid construction and high parameter stability ensure long-term operation. It is a power supply that combines precision, functionality, and modern usability.

Features

  • Number of channels: 3 independent, isolated outputs
    • CH1: voltage 0–32 V, current 0–3.2 A
    • CH2: voltage 0–32 V, current 0–3.2 A
    • CH3: voltage 2.5 V / 3.3 V / 5.0 V, current 3.2 A
  • Maximum output power: 220 W
  • Operating modes: independent, series, parallel
  • Resolution: 10 mV / 10 mA
  • Voltage accuracy: ±(0.5% of reading + 2 digits)
  • Current accuracy: ±(0.5% of reading + 2 digits)
  • Display: 4.3" color TFT-LCD, resolution 480 × 272 px
  • Display format: 4-digit voltage readout, 3-digit current readout
  • Ripple and noise: ≤ 1 mVrms (5 Hz – 1 MHz)
  • Response time: < 50 μs (50% load change)
  • Memory: 5 parameter save and recall sets
  • Protections: short-circuit and overload protection
  • Power supply: AC 100 / 120 / 220 / 230 V ±10%, 50/60 Hz
  • Communication interfaces: USB Device, LAN
  • Supported software: Easypower, SCPI, LabVIEW
  • Operating temperature: 0–40°C
  • Operating humidity: ≤ 80%
  • Dimensions: 225 × 143 × 278 mm
  • Weight: 8 kg

Kit contains

  • Siglent SPD3303X-E laboratory power supply
  • USB cable
  • Quick start guide
  • Calibration certificate
  • Power cord
  • 2 × set of test leads
1189232

Data sheet

Output voltage
0 - 32 V
Output current
3,2 A
Number of channels
3
